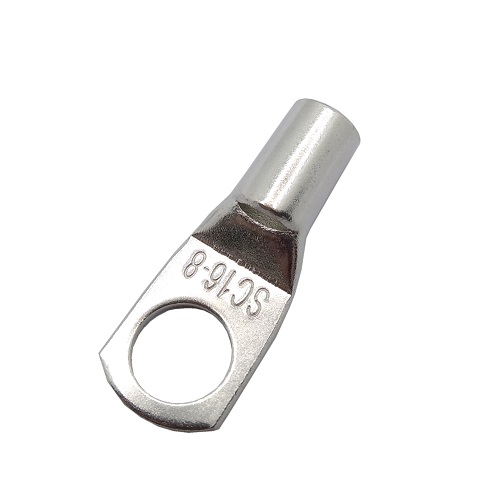

Copper Cable Lugs for 16mm² Cable, 8mm Bolt, 10 pcs
Price: 15.50 €
| Products ID: | 171018 |
|---|---|
| Manufactured by: | Hismart |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000822072 |
Delivery options to:
Choose countryElectro tin plated electrolytic copper cable lugs designed for secure termination of 16mm² low voltage cables.
Key Features
- Made from pure electrolytic copper (≥ 99.9%) with tin plating
- Equipped with an inspection hole to check correct cable insertion
- Compatible with 8mm bolts
- Fully annealed for optimal ductility
- Includes 10 pieces

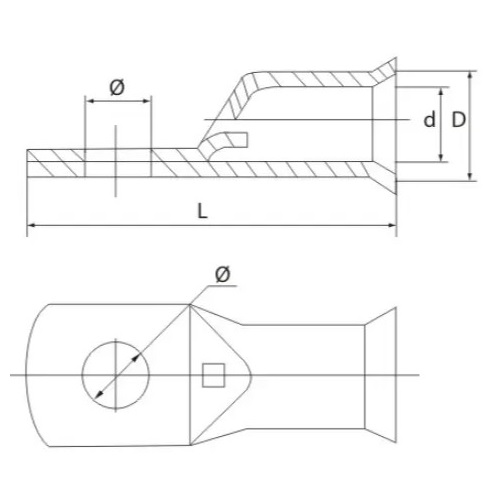

| Cable cross-section | 16.0mm² |
|---|---|
| Material | Copper ≥ 99.9% |
| Surface treatment | Electro tin plated |
| Applicable bolts | 8mm |
| Insulated | No |
| Length | 30.0mm |
| Depth | 11.0mm |
| Inner diameter | 5.8mm |
| Outer diameter | 7.5mm |
| Inspection hole | Yes |
| Quantity | 10 pcs |
What cable size are these lugs designed for?
These lugs are designed for cables with a 16.0mm² cross-section.
What size bolt is compatible with these lugs?
They are designed for use with 8mm bolts.
