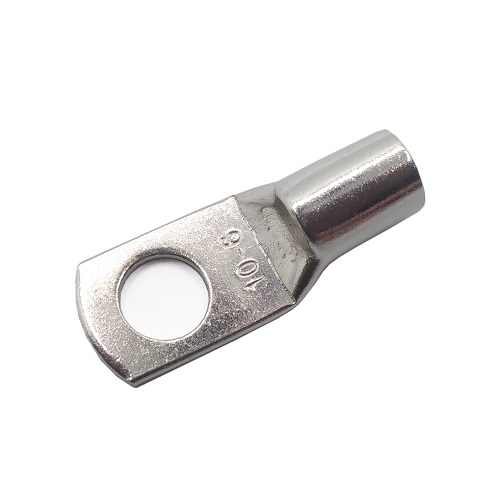

Copper Cable Lugs for 10mm² Cable, 10 pcs
Price: 13.20 €
| Products ID: | 171008 |
|---|---|
| Manufactured by: | Hismart |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000822065 |
Delivery options to:
Choose countryNon-insulated electrolytic copper lugs designed for terminating 10mm² low voltage cables with 6mm bolt connections.
Key Features
- Manufactured from pure electrolytic copper with electro tin plating
- Equipped with an inspection hole to verify proper cable insertion
- Fully annealed structure to guarantee optimal ductility
- Suitable for low voltage electrical cables

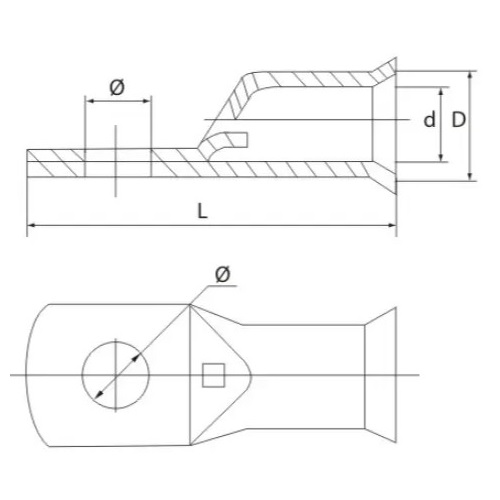

| Cable cross-section | 10.0mm² |
|---|---|
| Material | Copper ≥99.9% |
| Surface treatment | Electro tin plated |
| Applicable bolts | 6mm |
| Insulated | No |
| Length | 25.0mm |
| Depth | 9.0mm |
| Inner diameter | 5.0mm |
| Outer diameter | 6.7mm |
| Inspection hole | Yes |
| Quantity per pack | 10 pcs |
What bolt size is compatible with these cable lugs?
These cable lugs are compatible with 6mm bolts.
What material are the cable lugs made of?
They are made of electro tin-plated pure electrolytic copper (≥99.9%).
How many cable lugs are included in the package?
The set includes 10 pieces.
