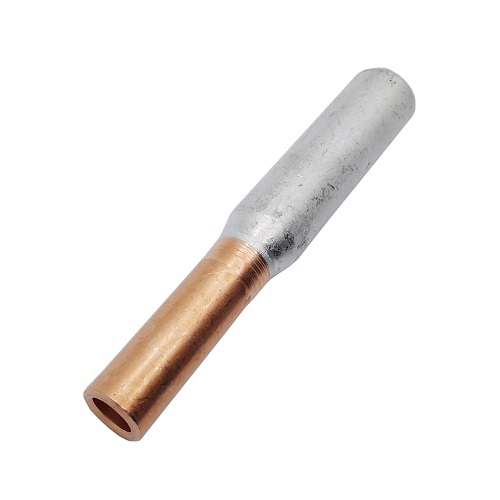

Bimetallic Connector Link Al+Cu for 50+35mm² Cables, 10 Pcs
Price: 26.70 €
| Products ID: | 171011 |
|---|---|
| Manufactured by: | Hismart |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000822256 |
Delivery options to:
Choose countryBimetallic connector link designed to join aluminium sector conductors to conventional stranded copper conductors.
Key Features
- Suitable for 50.0mm² aluminium and 35.0mm² copper cable cross-sections
- Prefilled with jointing compound
- Friction welded with a solid centre barrier
- Material composition: aluminium ≥99.5% and copper ≥99.9%
- Pack includes 10 pcs

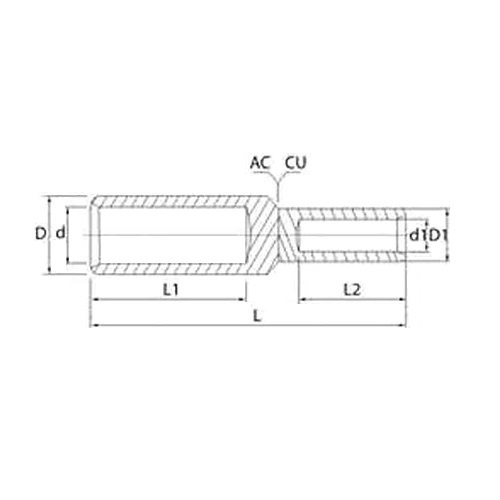

| Aluminium cable cross-section | 50.0mm² |
|---|---|
| Copper cable cross-section | 35.0mm² |
| Material | Aluminium ≥99.5% + copper ≥99.9% |
| Length | 90mm |
| Aluminium connector depth | 42mm |
| Copper connector depth | 32mm |
| Aluminium connector inner diameter | 9.5mm |
| Aluminium connector outer diameter | 16mm |
| Copper connector inner diameter | 8.5mm |
| Copper connector outer diameter | 13mm |
| Isolated | No |
| Inspection hole | No |
| Surface | Bright |
| Quantity per pack | 10 pcs |
What cable cross-sections is this connector compatible with?
It is designed for 50.0mm² aluminium cables and 35.0mm² copper cables.
Does the connector contain jointing compound?
Yes, the connector is prefilled with jointing compound.
How many connectors are included in the package?
The set contains 10 bimetallic connectors.
