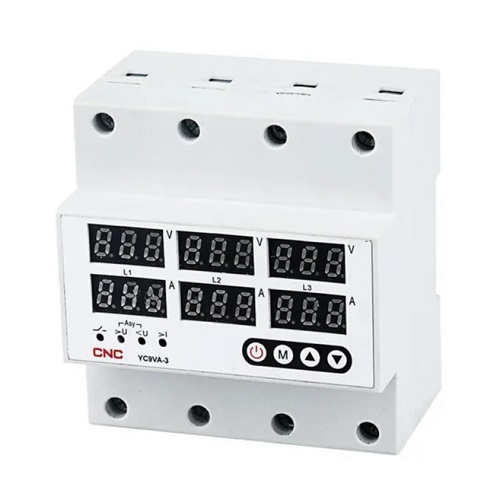

3-Phase Overvoltage & Undervoltage Protector Relay 63A, AC 380V, DIN Rail
Price: 41.00 €
| Products ID: | 178068 |
|---|---|
| Manufactured by: | CNC |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6942034338633 |
Delivery options to:
Choose countryThis 3-phase voltage and current control relay protects electrical equipment from overvoltage, undervoltage, and overcurrent in AC 380V three-phase lines.

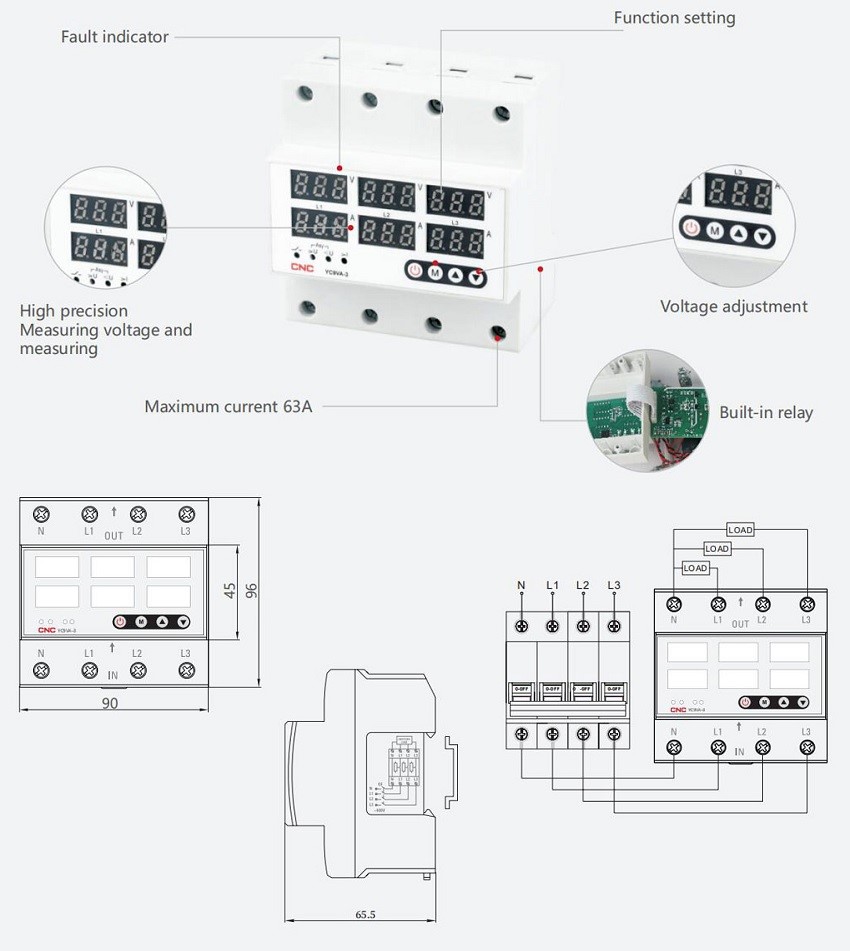

Key Features
- Protection against overvoltage, undervoltage, and overcurrent
- Digital display for real-time voltage and current measurements
- Automatic load recovery once voltage returns to the preset range
- Push-button configuration for voltage limits and delay times
- Compact DIN rail mounting design for 35 mm rails
- Compatible with aluminum and copper wiring
| Rated power supply voltage (Ue) | AC 380V (3-phase) |
|---|---|
| Current | 1-63 A |
| Frequency | 50/60 Hz |
| Max. voltage adjustment range | 390-500 V |
| Min. voltage adjustment range | 260-370 V |
| Response time | 0.1s-30s |
| Recovery time | 1-500s |
| Deviance | 2% |
| Voltmeter accuracy | up to 2% |
| Insulation voltage (Ui) | AC 700V |
| Output contact | 3NO |
| Protection class | IP20 |
| Mechanical life | 1 000 000 times |
| Electrical life | 100 000 times |
| Installation | on DIN rail (35 mm) |
| Operating temperature | from -5°C to +40°C |
How does the automatic recovery function operate?
The device continuously monitors circuit voltage. If the voltage exceeds the configured threshold, the load disconnects. When voltage normalizes within the set range, the load reconnects automatically.
Which types of conductors are supported for connection?
The device can be connected using both copper and aluminum wires.
