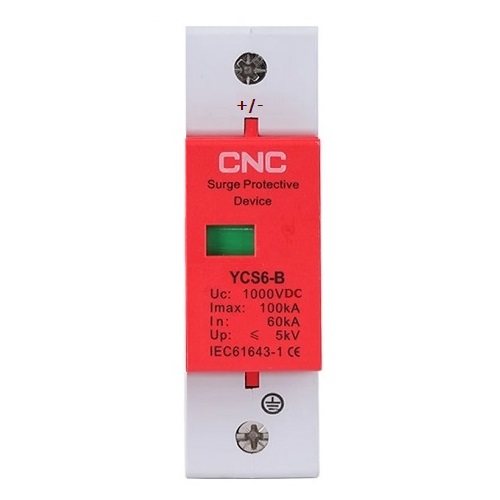

DC Surge Protection Device, 1P, Class B, 60-100 kA, 1000V DC
Price: 31.20 €
| Products ID: | 171157 |
|---|---|
| Manufactured by: | CNC |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6942108715070 |
Delivery options to:
Choose countryDC surge protection device designed to protect DC power systems, photovoltaic installations, wind power generation, and industrial DC equipment against direct lightning effects and transient overvoltages.
Key Features
- Suitable for DC power, photovoltaic, and wind power systems
- Single-pole (1P) configuration with Class B protection
- Maximum continuous operating voltage (Uc): 1000V DC
- Maximum discharge current (Imax): 100 kA, nominal discharge current (In): 60 kA
- Compliant with IEC 61643-1 and CE standards
| Device Type | Surge Protection Device (SPD) |
|---|---|
| Current Type | DC (Direct Current) |
| Number of Contacts (Poles) | 1 (1P) |
| Class | B |
| Max Continuous Operating Voltage (Uc) | 1000V DC |
| Nominal Discharge Current (In) | 60 kA |
| Max Discharge Current (Imax) | 100 kA |
| Standards | IEC 61643-1, CE |
What is the maximum operating voltage of this SPD?
The maximum continuous operating voltage (Uc) is 1000V DC.
Which applications is this surge protector intended for?
It is intended for DC power systems, photovoltaic (solar) systems, wind power generation, and other industrial DC power equipment.
