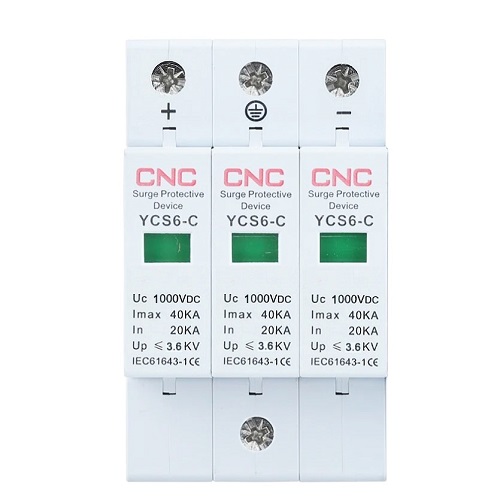

DC Surge Protection Device, 3P, Class C, 20-40 kA, 1000VDC
Price: 45.00 €
| Products ID: | 171196 |
|---|---|
| Manufactured by: | CNC |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6942108715148 |
Delivery options to:
Choose countryDC Surge Protection Device designed to protect DC power systems, photovoltaic installations, wind power generation, and industrial DC equipment against transient overvoltage and lightning influence.
Key Features
- Suitable for DC power, solar photovoltaic, and wind power systems
- Number of contacts: 3 (3P)
- Maximum continuous operating voltage (Uc): 1000V DC
- Discharge current: In 20 kA / Imax 40 kA (Class C)
- Voltage protection level (Up): <= 3.6 kV
- Compliant with IEC 61643-1 and CE standards
| Number of contacts | 3 |
|---|---|
| Class | C |
| Maximum continuous operating voltage (Uc) | 1000V DC |
| Nominal discharge current (In) | 20 kA |
| Maximum discharge current (Imax) | 40 kA |
| Standards | IEC 61643-1, CE |
What systems is this surge protection device suitable for?
It is designed for DC power systems, solar photovoltaic systems, wind power generation, and industrial DC electrical equipment.
What is the maximum operating voltage of this SPD?
The maximum continuous operating voltage (Uc) is 1000V DC.
