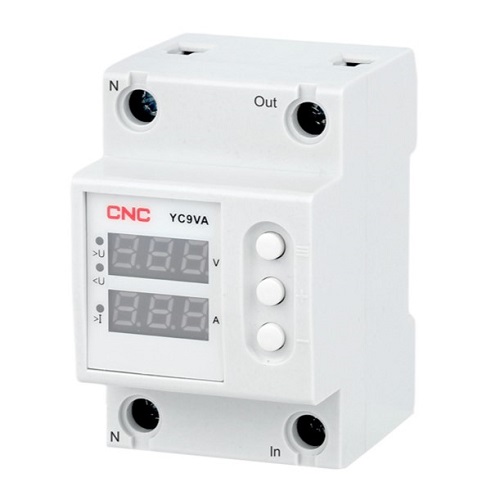

Overvoltage and Undervoltage Protector, 63A, DIN Rail Relay
Price: 21.30 €
| Products ID: | 178067 |
|---|---|
| Manufactured by: | CNC |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6942108780801 |
Delivery options to:
Choose countryMicroprocessor-based voltage and current control relay designed to protect single-phase electrical equipment from overvoltage, undervoltage, and overcurrent in AC 230V systems with currents up to 63A.

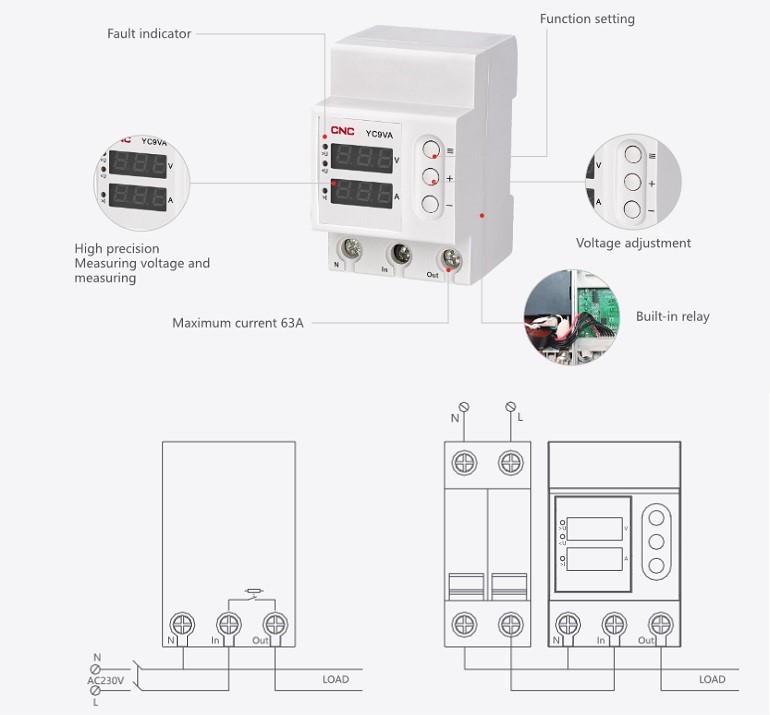

Key Features
- Comprehensive protection against overvoltage, undervoltage, and overcurrent
- Continuous voltage and current monitoring with real-time digital display
- Automatic circuit reconnection once parameters return to the preset range
- Adjustable voltage thresholds and delay times via push buttons
- Compact design with convenient 35mm DIN rail mounting
- Compatible with both copper and aluminum wiring
| Rated Power Supply Voltage (Ue) | AC 230V (single phase) |
|---|---|
| Current Range | 1-63 A |
| Frequency | 50/60Hz |
| Max. Voltage Adjustment Range | 230-300 V |
| Min. Voltage Adjustment Range | 110-210 V |
| Response Time | 0.1s-0.5s |
| Recovery Time | 1-90s |
| Deviance | 2% |
| Voltmeter Accuracy | up to 1% |
| Insulation Voltage (Ui) | AC 400V |
| Output Contact | 1NO |
| Protection Class | IP20 |
| Mechanical Life | 1 000 000 times |
| Electrical Life | 100 000 times |
| Installation | On DIN rail (35mm) |
| Operating Temperature | From -5°C to +40°C |
How is this protection relay installed?
The device is designed for easy mounting on a standard 35mm DIN rail inside an electrical panel.
What type of wiring is supported for connections?
Both copper and aluminum wires can be used for electrical connection.
