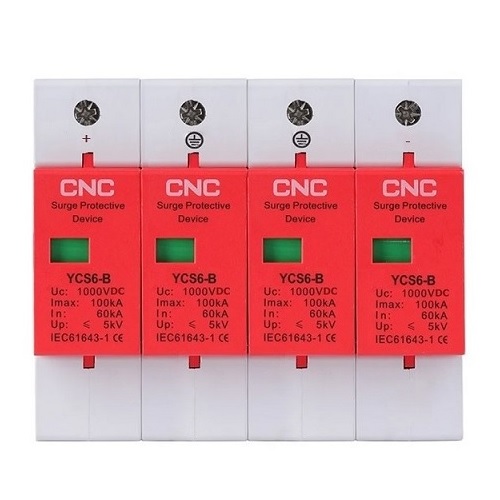

DC Surge Protection Device SPD, 4P, Class B, 1000V DC, 60-100 kA
Price: 93.30 €
| Products ID: | 171159 |
|---|---|
| Manufactured by: | CNC |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6942108715247 |
Delivery options to:
Choose countryDC surge protection device (SPD) designed to protect direct current electrical equipment from direct lightning effects and transient overvoltages.
Key Features
- Suitable for DC power systems, photovoltaic (PV) systems, wind power, and industrial DC equipment
- 4-pole (4P) configuration, Class B protection
- Maximum continuous operating voltage (Uc): 1000V DC
- Nominal discharge current (In): 60 kA, maximum discharge current (Imax): 100 kA
- Voltage protection level (Up): <= 5 kV
- Compliant with IEC 61643-1 and CE standards
| Device type | Surge Protection Device (SPD) |
|---|---|
| Number of contacts | 4P |
| Class | B |
| Maximum continuous operating voltage (Uc) | 1000V DC |
| Maximum discharge current (Imax) | 100 kA |
| Nominal discharge current (In) | 60 kA |
| Standards | IEC 61643-1, CE |
What is the maximum continuous operating voltage of this SPD?
The maximum continuous operating voltage (Uc) is 1000V DC.
What applications is this surge protection device designed for?
It is designed for DC power systems, solar photovoltaic systems, wind power generation, and other industrial DC electrical equipment.
