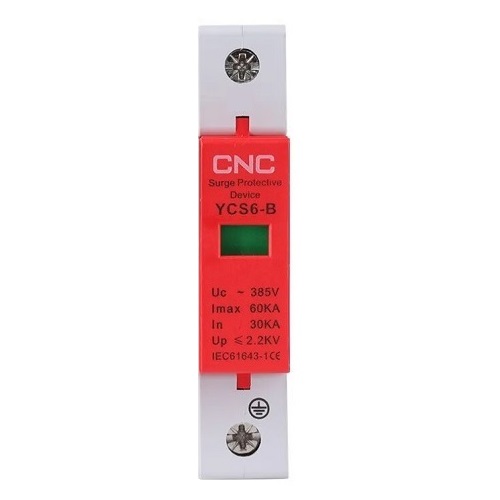

Surge Protection Device 1P, Class B, 30-60 kA, 385V AC
Price: 20.60 €
| Products ID: | 171183 |
|---|---|
| Manufactured by: | CNC |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6942034339012 |
Delivery options to:
Choose countrySingle-pole Class B surge protection device designed to protect electrical equipment from voltage spikes and lightning surges.
Key Features
- Suitable for power systems: TT, IT, TN-S, TN-C, TN-C-S
- Maximum continuous operating voltage (Uc): 385 V AC
- Nominal discharge current (In): 30 kA, maximum (Imax): 60 kA
- Voltage protection level (Up): ≤ 2.2 kV
- Compliant with standards: IEC 61643-1, GB18802.1, GB50057, CE
| Number of contacts | 1 |
|---|---|
| Class | B |
| Maximum continuous operating voltage (Uc) | 385 V AC |
| Maximum discharge current (Imax) | 60 kA |
| Nominal discharge current (In) | 30 kA |
| Supported systems | TT, IT, TN-S, TN-C, TN-C-S |
| Standards | IEC 61643-1, GB18802.1, GB50057, CE |
Which power distribution systems are compatible with this device?
This surge protection device is suitable for TT, IT, TN-S, TN-C, and TN-C-S systems.
What is the maximum continuous operating voltage (Uc)?
The maximum continuous operating voltage (Uc) is 385 V AC.
