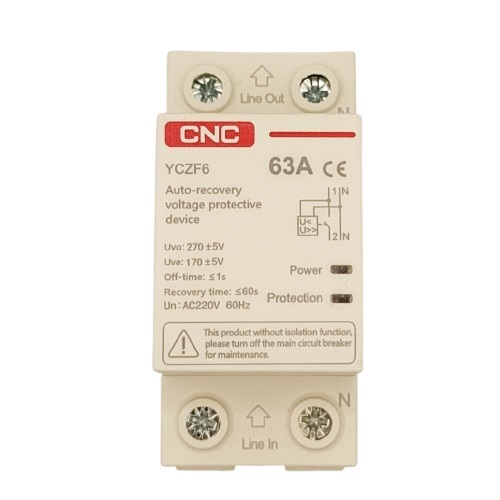

Self-Recovery Overvoltage and Undervoltage Protector, 1P+N, 63A, 230V
Price: 15.80 €
| Products ID: | 171398 |
|---|---|
| Manufactured by: | CNC |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6942034339654 |
Delivery options to:
Choose countryThe self-recovery overvoltage and undervoltage protector is designed to protect electrical equipment from voltage fluctuations in AC 230V circuits with a rated current of up to 63A.
Key Features
- Overvoltage and undervoltage circuit protection
- Automatic power reconnection once voltage normalizes
- LED status indicators for power and protection modes

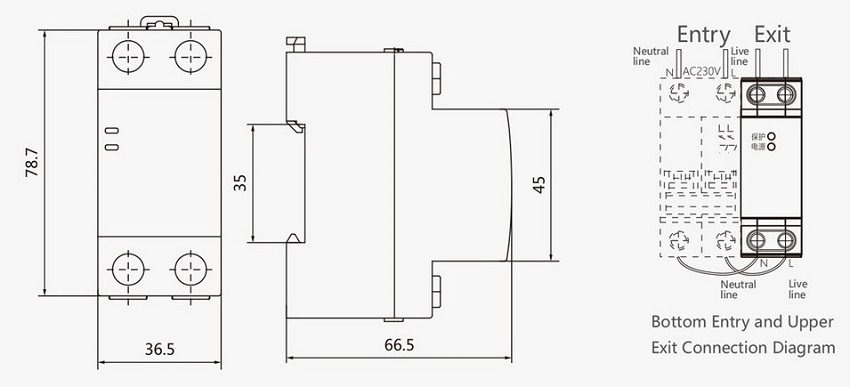

- Compact design for standard 35mm DIN rail installation
| Rated voltage | AC 230V |
|---|---|
| Current | 63 A |
| Frequency | 50/60Hz |
| Overvoltage operating cutoff value | AC 270V ±5V |
| Undervoltage operating cutoff value | AC 170V ±5V |
| Overvoltage recovery value | AC 255V ±5V |
| Undervoltage recovery value | AC 185V ±5V |
| Poles | 1P+N |
| Power consumption | < 2W |
| Electrical life | > 50000 times |
| Installation | On DIN rail (35mm) |
| Operating temperature | -35°C to +70°C |
How quickly does the protector respond and recover?
The cutoff response time is
What is the maximum allowed surface inclination for installation?
The inclination of the mounting surface must not exceed 5°.
