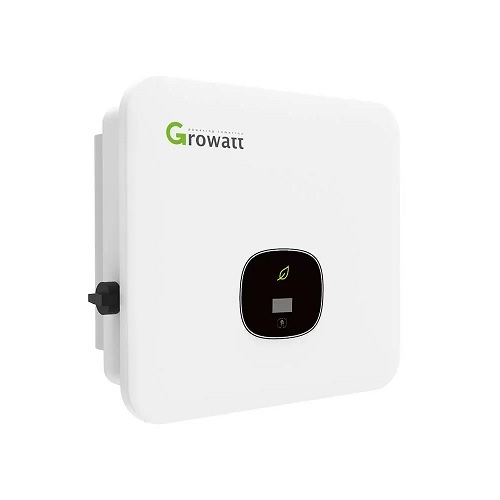

Three-Phase Grid-Tied Inverter Growatt MOD 15KTL3-X, 15kW, 2 MPPT
736.20 €
Growatt
Products ID: 170868
In supplier warehouse
Available to order: 3 pcs.
Delivery Time 5–10 business days
Delivery options to:
Choose countryThe Growatt MOD 15KTL3-X is a three-phase on-grid solar inverter with a rated AC output power of 15 kW and 2 independent MPP trackers.
Key Features
- Rated AC output power: 15000 W
- 2 independent MPP trackers with a 140 V – 1000 V voltage range
- Maximum efficiency up to 98.6%
- Integrated DC Type II and AC Type II surge protection
- IP66 protection rating with natural convection cooling
- OLED + LED display with RS-485 and USB communication interfaces
| Rated AC output power | 15000 W |
|---|---|
| Max. AC output apparent power | 16500 VA |
| Recommended max. PV input power | 22500 W |
| Max. PV input voltage | 1100 V |
| MPP voltage range | 140 V – 1000 V |
| No. of independent MPP inputs | 2 |
| AC grid connection type | 3-phase (3W + N + PE) |
| Max. efficiency | 98.6% |
| Degree of protection | IP66 |
| Cooling method | Natural convection |
| Dimensions (W*H*D) | 425*387*178 mm |
| Weight | 16 kg |
| Operating ambient temperature range | -25 °C to +60 °C |
| Interfaces | RS-485 / USB |
| EAN | 9990000820276 |
|---|
How many MPP trackers does the Growatt MOD 15KTL3-X have?
It features 2 independent MPP trackers with 1/2 PV strings per MPP.
What is the protection rating of this inverter?
The inverter has an IP66 degree of protection and operates via natural convection cooling.
