Datalogger GROWATT Shine WiLAN-X2
Price: 48.40 €
| Products ID: | 172320 |
|---|---|
| Manufactured by: | Growatt |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6975609727792 |
Delivery options to:

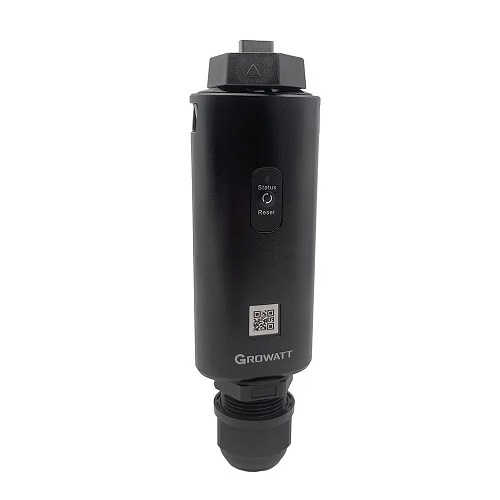

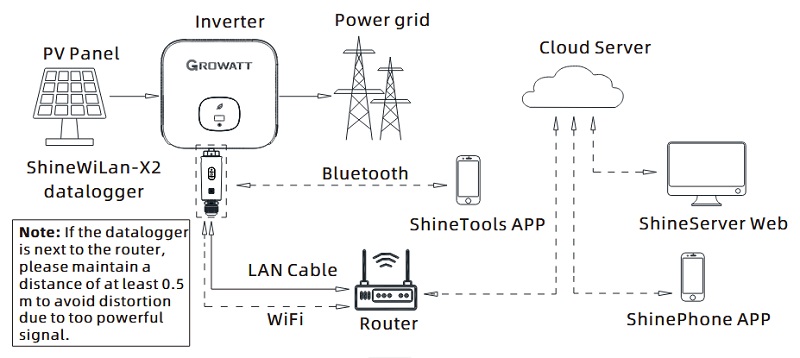

Choose countryThe Growatt Shine WiLAN-X2 is a datalogger designed to monitor and manage PV systems by linking inverter data to the Growatt Cloud server.
Key Features
- Supports Wi-Fi (2.4 GHz), wired LAN, and Bluetooth BLE 4.2 communication
- Built-in storage keeps inverter data for up to 30 days during internet outages
- Direct connection to inverter via USB Type-A port using Modbus RTU protocol
- Durable IP65 rated enclosure suitable for operating temperatures from -30°C to +65°C
| Brand | Growatt |
|---|---|
| Model | ShineWiLan-X2 |
| Network Support | Wi-Fi, Bluetooth, LAN |
| Wireless Standards | 802.11 b/g/n, BLE 4.2 |
| Wireless Frequency | 2.4 GHz |
| Max. Wi-Fi Range | 50 m |
| Ethernet Data Rate | 100 Mbps |
| Max. LAN Range | 100 m (Cat5e) |
| Interface | USB Type-A |
| Communication Protocol | Modbus RTU |
| Voltage | 5V |
| Power Consumption | 2.5W, max. 4W |
| Data Transfer Interval | 5 min |
| Offline Data Storage | Up to 30 days |
| App | ShinePhone |
| Protection Rating | IP65 |
| Operating Temperature | -30°C ~ +65°C |
| Dimensions | 152x47x28 mm |
| Weight | 94 g |
Does the datalogger store data if the internet connection is lost?
Yes, the device features built-in memory that stores inverter data for up to 30 days if the internet connection drops.
What communication interfaces are supported by Shine WiLAN-X2?
It supports 2.4 GHz Wi-Fi, wired Ethernet LAN (up to 100 m with Cat5e), and Bluetooth BLE 4.2 for local configuration.
