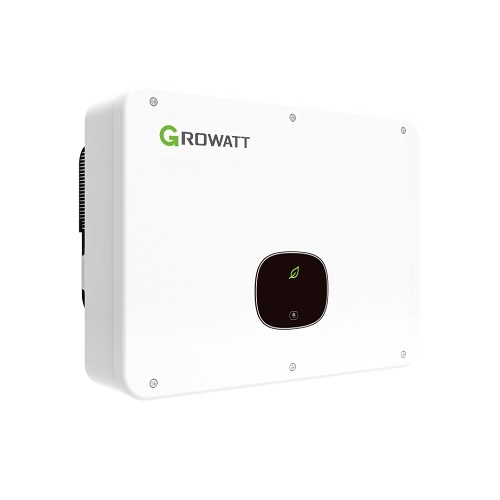

On-Grid Inverter Growatt MID 25KTL3-X1, 25kW, 3-Phase, 3 MPPT
Price: 1655.90 €
| Products ID: | 170712 |
|---|---|
| Manufactured by: | Growatt |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000820290 |
Delivery options to:
Choose countryThe Growatt MID 25KTL3-X1 is a three-phase on-grid solar inverter with a rated AC output power of 25 kW, designed for photovoltaic power systems.
Key Features
- 3 independent MPP trackers with 2 strings per MPPT
- Maximum efficiency of up to 98.8% with 99.9% MPPT efficiency
- Maximum PV input voltage up to 1100 V
- IP66 protection rating with smart air cooling
- Integrated DC Type II and AC Type II surge protection
- OLED and LED display with standard RS-485 and USB interfaces
| Brand | Growatt |
|---|---|
| Model | MID 25KTL3-X1 |
| Rated AC Output Power | 25000 W |
| Recommended Max. PV Input Power | 37500 W |
| AC Grid Connection | 3-phase (3 W + N + PE) |
| Number of MPPTs | 3 |
| PV Strings per MPPT | 2 |
| Max. PV Input Voltage | 1100 V |
| MPP Voltage Range | 200 V – 1000 V |
| Max. Efficiency | 98.8% |
| Degree of Protection | IP66 |
| Operating Temperature Range | -25 °C to +60 °C |
| Weight | 29.5 kg |
| Dimensions (W*H*D) | 580 x 435 x 230 mm |
How many MPP trackers does the Growatt MID 25KTL3-X1 have?
It features 3 independent MPP trackers, each supporting 2 PV strings.
What is the degree of protection of this inverter?
The inverter has an IP66 degree of protection and is equipped with smart air cooling.
