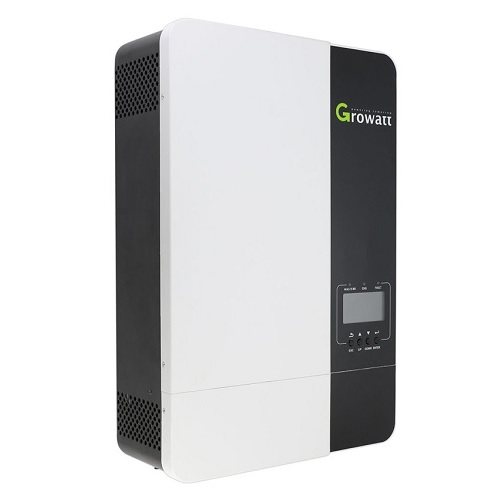

Solar Inverter Growatt SPF3500ES 3.5kW 48V 80A MPPT
Price: 768.70 €
| Products ID: | 171872 |
|---|---|
| Manufactured by: | Growatt |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000822393 |
Delivery options to:
Choose country

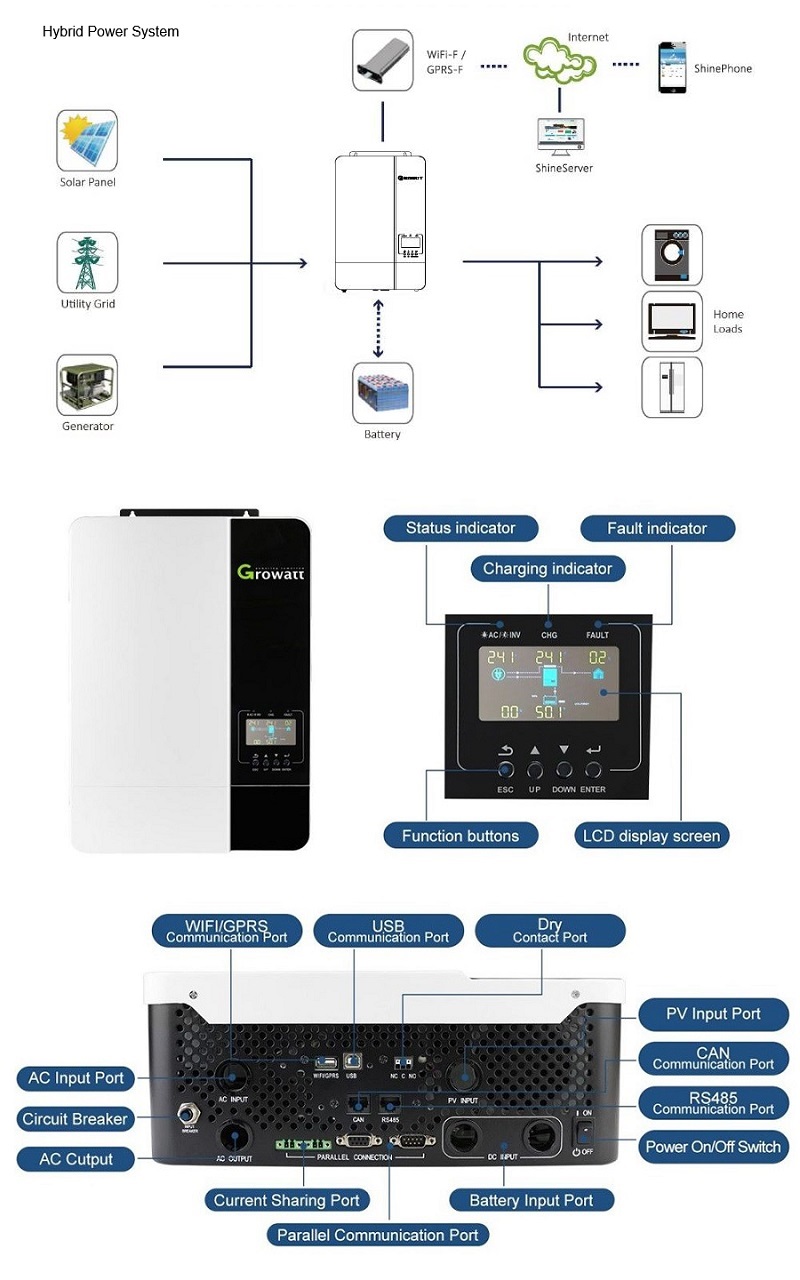

The Growatt SPF3500ES is a multifunctional 1-phase solar inverter and charger with a rated power of 3.5kW, combining an inverter, an 80A MPPT solar charge controller, and a battery charger for continuous power supply.
Key Features
- Pure sine wave output waveform
- Can operate without a connected battery
- Integrated 80A MPPT solar charge controller with up to 450V DC PV input
- Supports parallel operation of up to 6 units (up to 30kW)
- LCD display for monitoring and configuring operating parameters
- Compatible with 48V lithium and lead-acid batteries, as well as generators
| Rated power | 3500VA / 3500W |
|---|---|
| Surge power | 7000VA |
| Battery voltage | 48V DC |
| Battery type | Lithium / lead-acid |
| Waveform | Pure sine wave |
| AC output voltage | 230V AC +/- 5% @ 50/60Hz |
| Max. PV array power | 4500W |
| Max. PV open circuit voltage | 450V DC |
| MPPT voltage range | 120~430V DC |
| Max. solar charge current | 80A |
| AC charge current | 60A |
| Peak efficiency | 93% |
| Parallel capability | Yes, up to 6 units |
| Protection degree | IP20 |
| Dimensions (W x H x D) | 330 x 485 x 135 mm |
| Net weight | 11.5 kg |
| Operating temperature | 0°C to 55°C |
Can this inverter operate without a battery?
Yes, this inverter is designed to operate without a battery using solar power and grid power.
How many units can be connected in parallel?
Up to 6 units can be operated in parallel to achieve a total capacity of up to 30kW.
What is the maximum PV input voltage?
The maximum PV array open circuit voltage is 450V DC, with an MPPT operating range of 120 to 430V DC.
