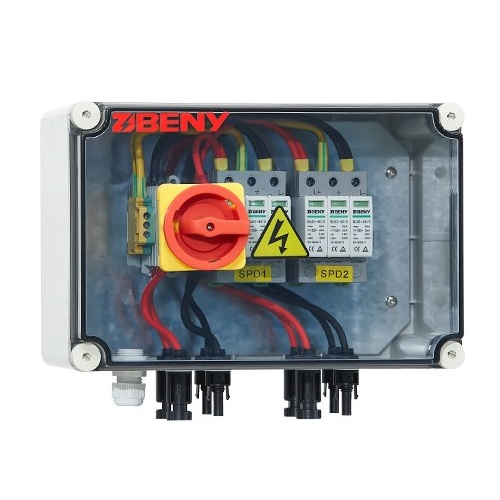

PV Combiner Box 2 In 2 Out 1000V DC IP66
199.70 €
Beny
Products ID: 178698
In supplier warehouse
Available to order: 5 pcs.
Delivery Time 5–10 business days
Delivery options to:
Choose countryThis DC string combiner box is designed for 2-string solar PV systems to provide surge protection and isolation on the DC side.
Key Features
- 2 inputs and 2 outputs rated for 1000V DC
- IP66 waterproof enclosure with IK10 impact resistance, V0 flame retardant rating, and UV resistance
- Includes one 4P 1000V 50A DC switch with lockable handle
- Includes two 3P 1000V 40kA DC surge protective devices (SPD)
- Supplied with MC4 connectors and cable glands
| Inputs / Outputs | 2 in / 2 out |
|---|---|
| Voltage Rating | 1000 V DC |
| Application | For 2-string solar PV systems |
| Enclosure Protection Rating | IP66 |
| Impact Resistance | IK10 |
| Flame Retardant Rating | V0 |
| UV Resistance | Yes |
| DC Switch | 4P, 1000 V, 50 A (1 pc.) |
| DC Switch Certification | UI508i, IEC60947-3 Pv2 |
| DC Surge Protection (SPD) | 3P, 1000 V, 40 kA (2 pcs.) |
| Included Accessories | MC4 connectors and glands |
| EAN | 9990000820139 |
|---|
What system setup is this PV combiner box designed for?
It is designed for 2-string solar photovoltaic (PV) systems operating at up to 1000V DC.
Which protection devices are integrated inside the box?
It is equipped with one 4P 1000V 50A DC isolator switch and two 3P 1000V 40kA DC surge protection devices (SPD).
What is included in the package?
The set includes the combiner box along with MC4 connectors and cable glands.
