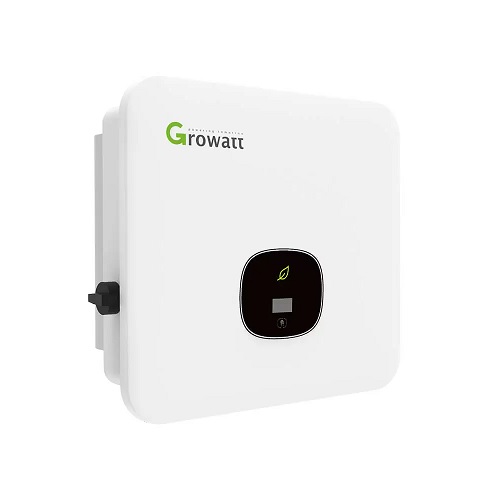

On-Grid Inverter GROWATT MOD 10KTL3-X, 10kW, 3-Phase, 2 MPPT
566.30 €
Growatt
Products ID: 170862
In supplier warehouse
Available to order: 3 pcs.
Delivery Time 5–10 business days
Delivery options to:
Choose countryThe Growatt MOD 10KTL3-X is a three-phase on-grid solar inverter designed with a 10 kW rated AC output and 2 independent MPP trackers.
Key Features
- Rated AC output power: 10,000 W (max. 11,000 VA)
- 2 independent MPP trackers with 99.9% MPPT efficiency
- Recommended maximum PV input power of 15,000 W
- Maximum efficiency up to 98.6% (European efficiency 98.1%)
- IP66 protection rating with natural convection cooling
- Integrated RS-485 and USB communication interfaces
| Rated AC output power | 10000 W |
|---|---|
| Recommended max. PV input power | 15000 W |
| Max. PV input voltage | 1100 V |
| MPP voltage range | 140 V – 1000 V |
| No. of independent MPP inputs | 2 |
| AC grid connection type | 3 W + N + PE |
| Max. efficiency | 98.6% |
| Degree of protection | IP66 |
| Weight | 14 kg |
| Operating ambient temperature range | -25 °C to +60 °C |
| EAN | 9990000820269 |
|---|
How many MPPT inputs does this inverter have?
It has 2 independent MPP trackers, each supporting 1 PV string.
What is the degree of environmental protection for this model?
The inverter features an IP66 ingress protection rating and operates in temperatures from -25 °C to +60 °C.
