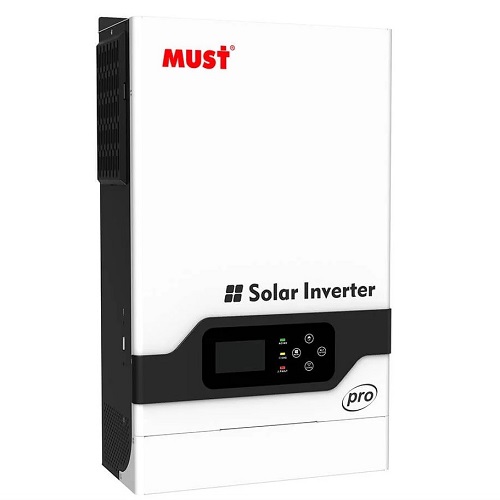

Solar Inverter MUST PV18-5248PRO, 5kW, 1-Phase, 48V, 80A MPPT, 450V
Price: 582.30 €
| Products ID: | 170864 |
|---|---|
| Manufactured by: | Must Energy Power Co. |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000820702 |
Delivery options to:
Choose countryThe MUST PV18-5248PRO is a multifunctional 1-phase solar inverter with 5200W rated power, an integrated 80A MPPT solar charge controller, and pure sine wave output for continuous power supply.
Key Features
- Operates with or without a 48V DC battery connected
- Built-in 80A MPPT solar charge controller with 150–430V DC operating range
- Maximum PV array open circuit voltage of up to 450V DC
- LCD screen for setting operating parameters and charging priorities
- Compatible with AC utility power and generators
- Protection against overload, short circuit, and deep discharge
- Supports USB and RS485 monitoring
| Model | PV18-5248PRO |
|---|---|
| Rated Power | 5200W / 5200VA |
| Surge Power | 10400VA |
| Waveform | Pure sine wave |
| Phase | 1-phase |
| Nominal Battery Voltage | 48V DC |
| Output Voltage | 230V AC |
| Max PV Open Circuit Voltage | 450V DC |
| PV MPPT Voltage Range | 150–430V DC |
| Max Solar Charge Current | 80A |
| Max AC Charge Current | 60A |
| Max PV Current | 18A |
| Peak Efficiency | 93% |
| Transfer Time | 10ms / 20ms |
| Display | LCD |
| Communication Ports | USB, RS485 |
| Operating Temperature | 0°C to +50°C |
| Dimensions (W x H x D) | 295 x 528 x 121 mm |
| Net Weight | 14 kg |
| Gross Weight | 15 kg |
Can this inverter operate without a battery?
Yes, the MUST PV18-5248PRO inverter can operate without a battery by combining power directly from solar panels and the AC utility grid.
What is the maximum PV open circuit voltage supported?
The maximum PV array open circuit voltage is 450V DC, with an MPPT operating voltage range of 150 to 430V DC.
Which monitoring interfaces are available?
The inverter includes USB and RS485 communication ports for monitoring.
