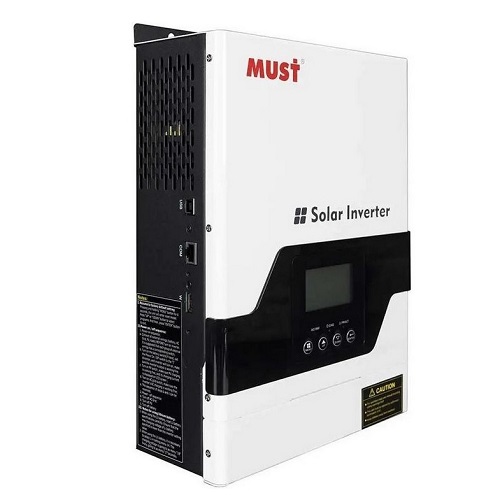

Solar Inverter MUST PV18-3224VPM II, 3.2kW, 1-Phase, 24V, 60A MPPT
SOLDOUT!
Price: 292.80 €
| Products ID: | 172846 |
|---|---|
| Manufactured by: | Must Energy Power Co. |
| Availablity: | SOLDOUT! |
| EAN: | 9990000822379 |
Delivery options to:
Choose country

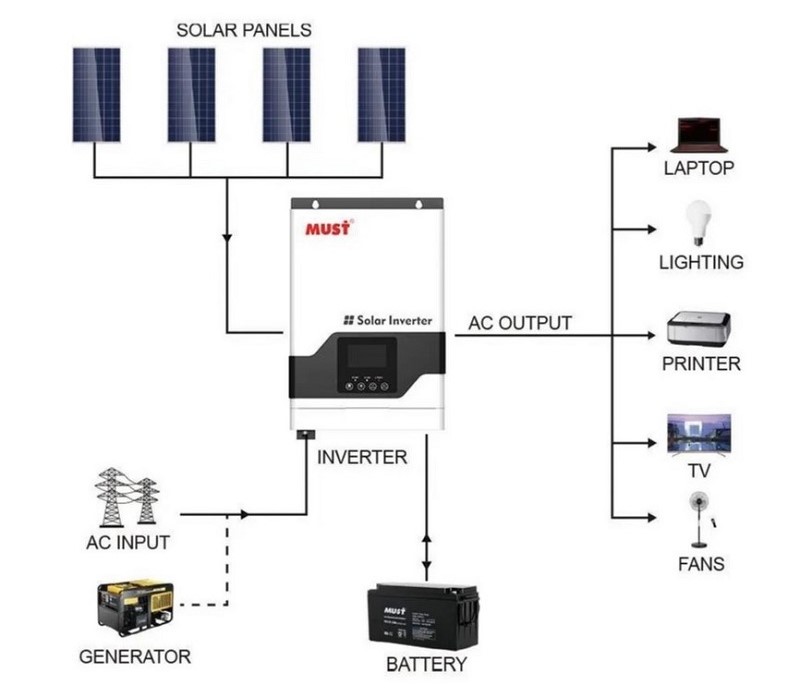

The MUST PV18-3224VPM II is a multifunctional single-phase inverter and charger combining the features of an inverter, a 60A MPPT solar charger, and a battery charger to deliver uninterruptible power.
Key Features
- Rated power of 3200W with pure sine wave output
- Built-in 60A MPPT solar charge controller supporting up to 1600W PV arrays
- Designed for 24V DC battery systems with generator compatibility
- LCD display for configuring operating parameters and charging priorities
- Built-in protection against overload, short circuit, and deep discharge
- Supports USB and RS485 monitoring functions
| Rated Power | 3200VA / 3200W |
|---|---|
| Surge Power | 6400VA |
| Battery Voltage | 24V DC |
| Waveform | Pure sine wave |
| Phases | 1-phase |
| Input AC Voltage | 230V AC |
| Frequency Range | 50Hz / 60Hz |
| Max. PV Array Open Circuit Voltage | 160V DC |
| PV Array MPPT Voltage Range | 30~128V DC |
| Max. Solar Charge Current | 60A |
| Max. PV Array Power | 1600W |
| Max. AC Charge Current | 60A |
| Max. Charge Current | 120A |
| Dimensions (W*H*D) | 254.5*367.4*103 mm |
| Net Weight | 5.5 kg |
| Operating Temperature | 0°C to 50°C |
What battery system is required for this inverter?
This inverter requires a 24V DC battery system (sold separately).
What is the maximum solar input power supported?
The inverter supports a maximum solar array power of 1600W with an open circuit voltage of up to 160V DC.
