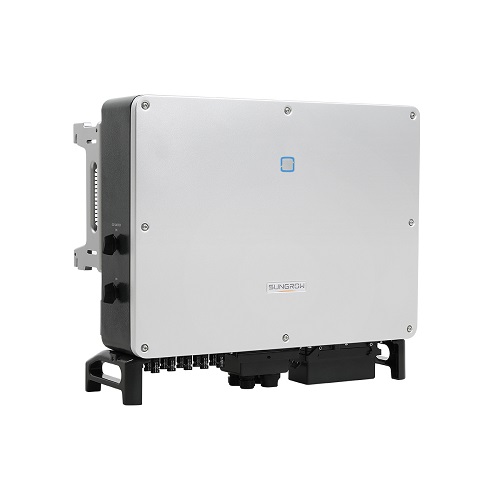

On-Grid Solar Inverter Sungrow SG33CX, 33kW, 3-Phase, 3 MPPT
2365.60 €
Sungrow
Products ID: 170710
In supplier warehouse
Available to order: 1 pcs.
Delivery Time 5–10 business days
Delivery options to:
Choose countryThe Sungrow SG33CX is a 3-phase on-grid solar inverter designed for photovoltaic installations, delivering a rated AC output power of 33 kW.
Key Features
- 3 independent MPPT inputs supporting up to 2 PV strings per MPPT
- Maximum PV input voltage of up to 1100 V
- High efficiency with up to 98.60% maximum and 98.20% European rating
- Durable IP66 ingress protection and smart forced air cooling
- Integrated Type II surge protection on both DC and AC sides
- Local monitoring via LED, Bluetooth+APP, with RS485 and optional Wi-Fi/4G
| Model | SG33CX |
|---|---|
| Rated AC Output Power | 33000 W |
| Max. AC Output Power | 36300 VA |
| Grid Connection | 3 / N / PE |
| Max. PV Input Voltage | 1100 V |
| MPP Voltage Range | 200 V – 1000 V |
| Number of MPPTs | 3 |
| Max. PV Strings per MPPT | 2 |
| Max. Efficiency | 98.60% |
| European Efficiency | 98.20% |
| Degree of Protection | IP66 |
| Weight | 50 kg |
| Dimensions (W*H*D) | 702*595*310 mm |
| Operating Temperature Range | -30 °C to 60 °C |
| DC Connection Type | MC4 |
| Communication | RS485 / 4G Optional / Wi-Fi Optional |
| EAN | 9990000820221 |
|---|
How many MPPT inputs does the Sungrow SG33CX have?
The inverter features 3 independent MPPT inputs, allowing up to 2 PV strings per MPPT channel.
What is the ingress protection rating of this inverter?
The Sungrow SG33CX has an IP66 protection rating, making it protected against dust and heavy water ingress.
