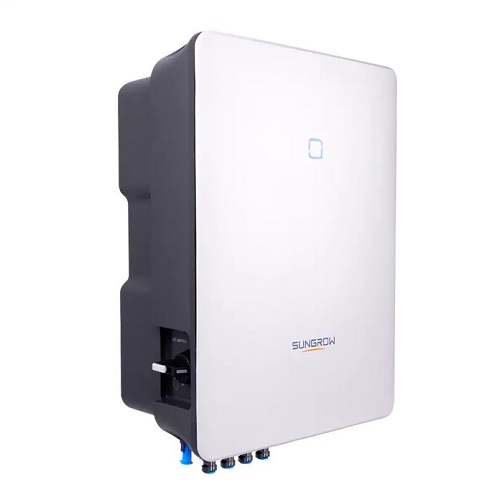

On-Grid Inverter Sungrow SG25RT, 25kW, 3-Phase, 2 MPPT
2061.10 €
Sungrow
Products ID: 170711
In supplier warehouse
Available to order: 2 pcs.
Delivery Time 5–10 business days
Delivery options to:
Choose countryThe Sungrow SG25RT is a three-phase on-grid solar inverter featuring a 25 kW rated AC power output and 2 independent MPP trackers.
Key Features
- High Efficiency: achieves up to 98.50% maximum efficiency and 98.00% European efficiency.
- Flexible PV Configuration: features 2 independent MPP inputs with 2 strings per MPPT.
- Integrated Protection: includes a DC switch, Arc Fault Circuit Interrupter (AFCI), AC short-circuit, and leakage current protection.
- Durable Design: IP65 protection rating with an ambient operating temperature range from -25 °C to 60 °C.
- Connectivity & Monitoring: comes with 4G communication support and an LED display.
| Rated AC Output Power | 25000 W |
|---|---|
| Connection Phases | 3 / N / PE, 400 V |
| Number of Independent MPP Inputs | 2 |
| Number of PV Strings per MPPT | 2/2 |
| Max. PV Input Voltage | 1100 V |
| MPP Voltage Range | 160 V – 1000 V |
| Max. Efficiency | 98.50% |
| European Efficiency | 98.00% |
| Degree of Protection | IP65 |
| Weight | 21 kg |
| Communication | 4G |
| Cooling Method | Air cooling |
| Operating Ambient Temperature Range | -25 °C to 60 °C |
| EAN | 9990000820214 |
|---|
How many MPPT inputs does the Sungrow SG25RT have?
It has 2 independent MPP inputs with 2 PV strings per MPPT tracker (2/2 configuration).
What is the peak efficiency of this inverter?
The inverter achieves a maximum efficiency of 98.50% and a European efficiency of 98.00%.
What is the environmental protection rating?
The Sungrow SG25RT has an IP65 protection rating and operates in temperatures ranging from -25 °C to 60 °C.
