LAN Interface Growatt Shine LAN-X
34.50 €
Growatt
Products ID: 170488
In supplier warehouse
Available to order: 3 pcs.
Delivery Time 5–10 business days
Delivery options to:

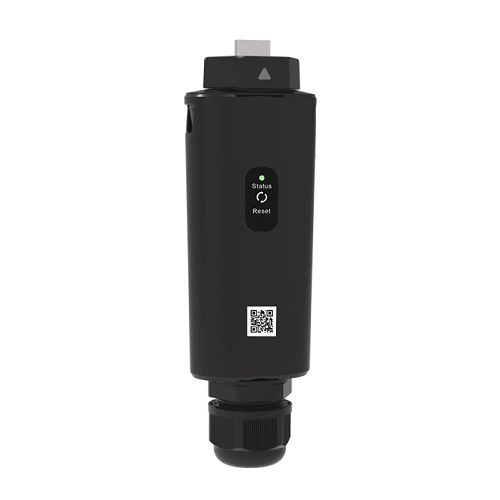

Choose countryThe Growatt Shine LAN-X interface connects Growatt solar inverters to the ShineServer cloud platform via a wired LAN connection to monitor solar plant operation and power output.
Key Features
- Compatible with all Growatt X-series inverters (On-grid with external power supply)
- Automated connection via USB Type-A port and router network cable
- Internal memory stores system data for 30–40 days during network interruptions
- IP65 protection class and operating temperature range of -30°C to +60°C
| Brand | Growatt |
|---|---|
| Model | Shine LAN-X |
| Support Network | LAN |
| Ethernet Data Rate | 10Mbps |
| Interface | USB Type-A |
| Voltage | 5V |
| Max. Power Consumption | 3W |
| Data Transmission Interval | 5 min |
| Supported Server | ShineServer (server-cn.growatt.com) |
| Built-in Data Storage | 30-40 days |
| Compatibility | Growatt X-series inverters |
| Safety Class | IP65 |
| Operating Temperature | -30°C ~ +60°C |
| Dimensions | 152x47x28 mm |
| Weight | 84g |
| Certifications | CE, RoHS |
| EAN | 9990000820320 |
|---|
Which inverters are compatible with Growatt Shine LAN-X?
It is suitable for all Growatt X-series on-grid inverters that use an external power supply.
Does the Shine LAN-X retain data if internet access is lost?
Yes, the device features built-in memory that stores inverter data for 30 to 40 days when the internet connection is interrupted.
