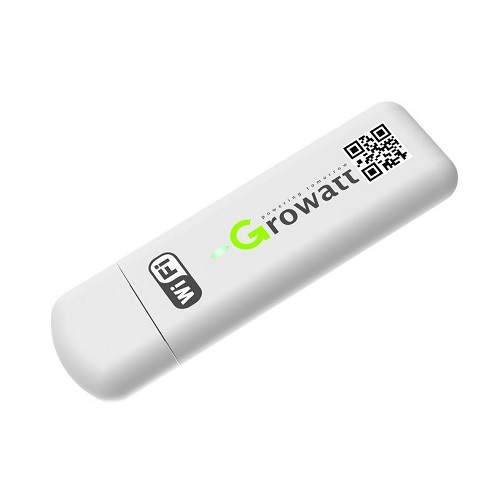

Growatt USB WiFi Interface for Solar Inverters
34.50 €
Growatt
Products ID: 170489
In supplier warehouse
Available to order: 3 pcs.
Delivery Time 5–10 business days
Delivery options to:
Choose countryThe Growatt USB WiFi interface connects directly to solar inverters to upload and process operational data in the ShinePhone app. It also allows local device configuration and firmware updates.
Key Features
- USB Type-A connection interface
- Operates on 2.4GHz Wi-Fi networks (up to 150Mbps)
- Maximum wireless communication range of 30 meters
- Compatible with the ShinePhone app
- Reusable for subsequent commissioning and installations
| Interface | USB Type-A |
|---|---|
| Supported network | Wi-Fi 2.4GHz (2412-2484MHz) |
| Wi-Fi wireless standard | IEE802.11 b/g/n |
| Max. bandwidth | 150Mbps |
| Max. communication range | 30m |
| Power | 5V |
| App | ShinePhone |
| Dimensions | 82x25x10 mm |
| Weight | 60g |
| Compatibility | Growatt MIC 750-3000TL-X, MIN 2500-6000TL-X/XE/XH, MOD 3-15KTL3-X, MID 6-12K TL3-XL, MID 15-20KTL3-X, MID 25-40KTL-X, MAC 30-60KTL3-X LV, MAC 50-70KTL3 MV, MAX 50-80KTL3 LV, MAX 60-100KTL3 MV |
| EAN | 9990000820344 |
|---|
Which application is used for monitoring?
The module transmits data to the ShinePhone application for monitoring and configuration.
What is the wireless communication range?
The maximum communication range is up to 30 meters.
Can the dongle be reused after initial setup?
Yes, after commissioning, the USB dongle can be used for the next installation.
