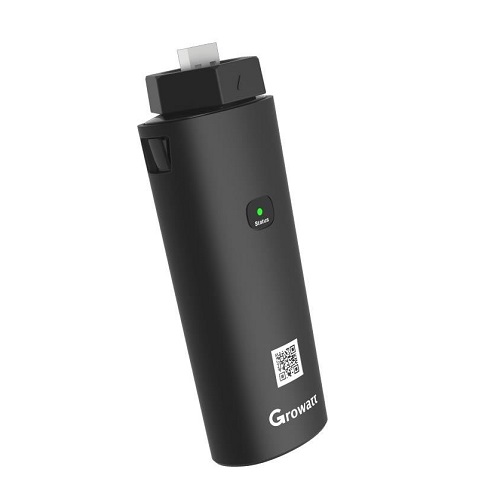

Cellular Interface GROWATT Shine 4G-X
89.70 €
Growatt
Products ID: 170504
In supplier warehouse
Available to order: 1 pcs.
Delivery Time 5–10 business days
Delivery options to:
Choose countryThe GROWATT Shine 4G-X is a cellular interface designed to connect On-grid Growatt X-series inverters to the ShineServer cloud platform via 4G, 3G, or 2G mobile networks.
Key Features
- Enables remote monitoring of solar power plant operation and energy production.
- Built-in memory preserves inverter data for up to 30 days during network outages.
- Connects via USB Type-A interface using the Modbus RTU protocol.
- Compatible with all On-grid Growatt X-series inverters.
- Features a standard SIM card slot (SIM card sold separately).
| Supported networks | 4G / 3G / 2G |
|---|---|
| GSM frequency band | 900/1800MHz |
| WCDMA frequency band | B1/B5/B8 |
| LTE FDD frequency band | B1/B3/B5/B7/B8/B20 |
| LTE TDD frequency band | B38/B40/B41 |
| Inverter communication | USB - Modbus RTU protocol |
| Server communication | Modbus TCP protocol |
| SIM slot | Standard SIM card (purchased separately) |
| Interface | USB Type-A |
| Operating voltage | 5V |
| Max. rated power | 1.2W |
| Supported server | ShineServer (server.growatt.com) |
| Data transmission interval | 5 min |
| Operating temperature | -30°C ~ +65°C |
| Dimensions | 122x47x32 mm |
| Weight | 60g |
| EAN | 9990000821129 |
|---|
Which inverters are compatible with GROWATT Shine 4G-X?
It is compatible with all On-grid Growatt X-series inverters.
Does the device store data if the cellular network fails?
Yes, inverter data is stored in the built-in memory for up to 30 days in the event of a network failure.
Is a SIM card included with the Shine 4G-X?
No, a standard SIM card must be purchased separately.
