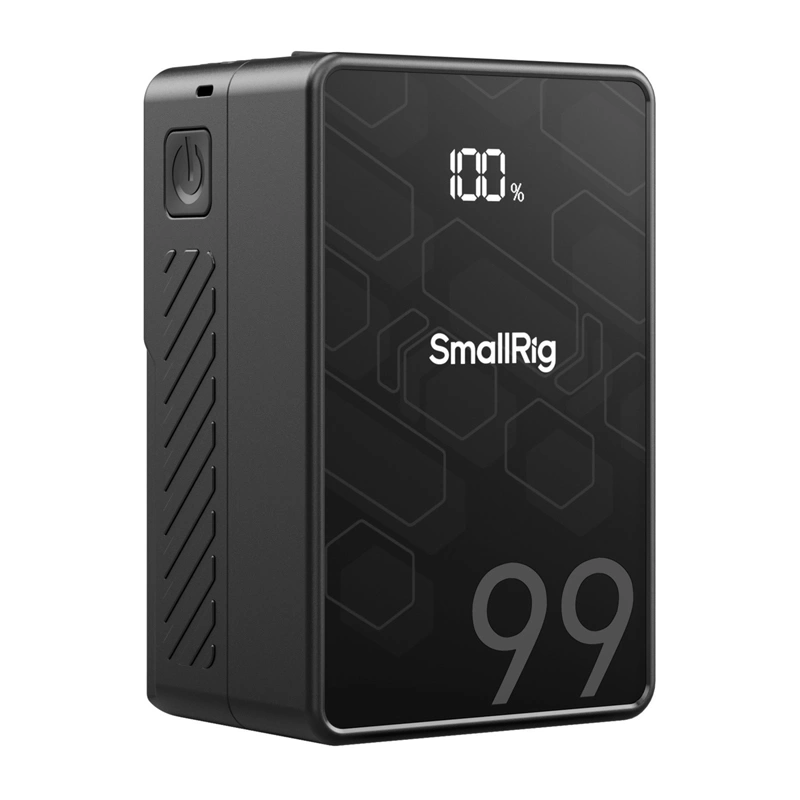

SmallRig VB99 SE mini V-Mount battery, 98.872 Wh, 100 W
Delivery options to:
Choose countryThe SmallRig VB99 SE mini is a compact V-Mount battery for powering photo and video equipment and compatible mobile devices. It provides 6 800 mAh / 98.872 Wh capacity with a rated discharge power of 100 W.
Multiple devices and flexible charging
Independent port circuits support simultaneous power delivery to equipment such as cameras, monitors, video transmitters, follow-focus systems and LED lights. Bidirectional USB-C PD up to 65 W lets you charge the battery itself or power compatible devices. A full charge takes approximately 2.5 hours.

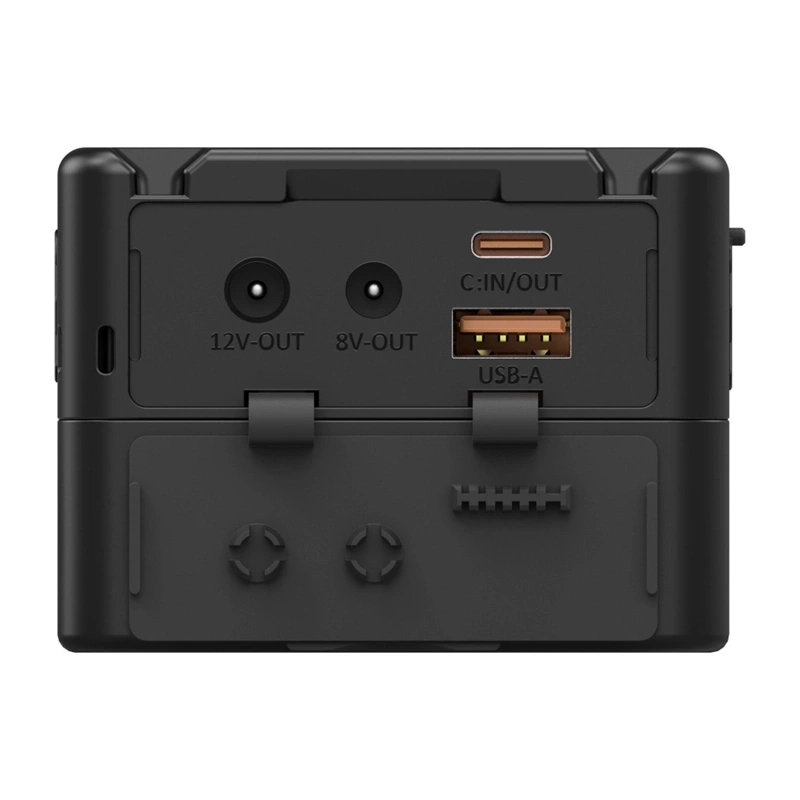

- Connections: BP, D-Tap, USB-C, USB-A and dedicated 8 V and 12 V outputs.
- Charging options: USB-C, the BP port or a 16.8 V D-Tap charger.
- Status monitoring: the OLED screen displays energy level, remaining runtime, voltage and power.
Controls and construction
The control button cycles through parameters and wakes or switches off the screen. Holding it for 3 seconds forces the USB-C, USB-A and DC ports to shut down. LG Class A 18650 cells and a BMS provide protection against excessive current, voltage and temperature, as well as short circuits. The housing uses heat-resistant, flame-retardant PC plastic.
The battery measures 112 × 72 × 53.8 mm and weighs 595 ± 10 g. Its operating temperature range is -15 °C to 60 °C; charging requires a temperature of 0 °C to 45 °C.
| Manufacturer | SmallRig |
|---|---|
| Model | VB99 SE mini |
| Type | V-Mount battery |
| Capacity | 6 800 mAh / 98.872 Wh |
| Voltage | 14.54 V |
| Rated discharge power | 100 W |
| Cut-off voltage | 11.2 V |
| Cells | LG Class A, 18650 |
| Housing material | Flame-retardant PC plastic |
| Display | OLED |
| Dimensions | 112 × 72 × 53.8 mm |
| Weight | 595 ± 10 g |
| Operating temperature | -15 °C to 60 °C |
| Charging temperature | 0 °C to 45 °C |
| USB-C input | Max. 65 W |
| D-Tap / BP input | Max. 6.8 A |
| USB-C output | 5 V / 3 A, 9 V / 3 A, 12 V / 3 A, 15 V / 3 A, 20 V / 3.25 A |
| USB-A output | 5 V / 3 A, 9 V / 3 A, 12 V / 2.5 A |
| BP / D-Tap output | Max. 10 A |
| 8V-OUT output | 8 V / 3 A max. |
| 12V-OUT output | 12 V / 3 A max. |
| Ports | 1 × BP, 1 × D-Tap, 1 × USB-C, 1 × USB-A, 1 × 8V-OUT, 1 × 12V-OUT |
| USB-C protocols | PD 3.0, QC 2.0, QC 3.0, PPS, DCP 1.5A, Apple 2.4A |
| USB-A protocols | QC 2.0, QC 3.0, DCP 1.5A, Apple 2.4A |
| Charging methods | USB-C, BP port, 16.8 V D-Tap charger |
| Certifications | FCC, CE, RoHS, ISED, RCM, PSE, KC |
| Full charging time | Approximately 2.5 hours |
| EAN | 6941590016603 |
|---|
Can it power several devices at once?
Yes. Independent port circuits support simultaneous power delivery to multiple devices, including fast charging through USB-C and USB-A. The battery's rated discharge power is 100 W.
What is included?
The set contains the SmallRig VB99 SE mini V-Mount battery, a user manual, a user guide and a warranty card.
