SMALLRIG 3823 dual charger with 2 NP-F970 7 800 mAh batteries
Delivery options to:

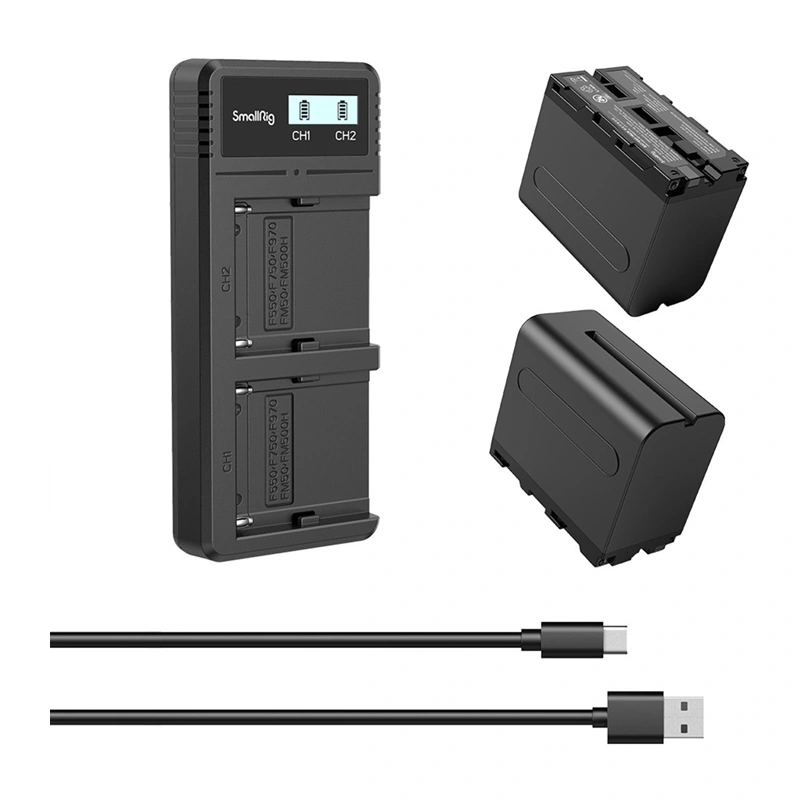

Choose countryThe SMALLRIG 3823 kit combines two NP-F970 lithium-ion batteries with a dual LCD charger. Each battery provides 7 800 mAh capacity, 7.2 V voltage and 56.16 Wh energy for compatible cameras, monitors, LED lights and motorised sliders.
Battery fit and compatibility

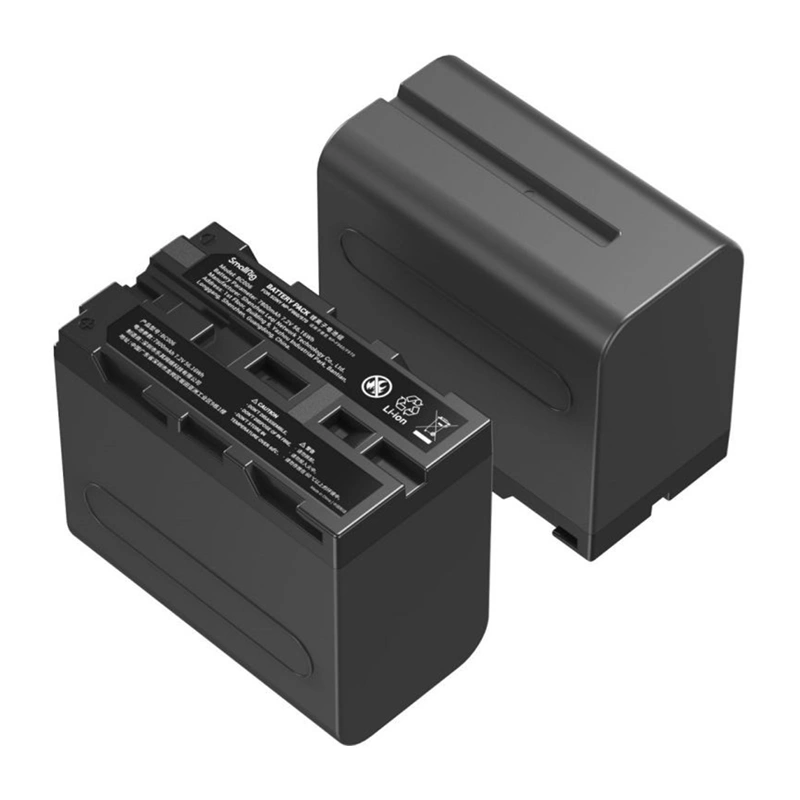

Full decoding enables use with compatible devices and original chargers without unsupported-battery error messages. The batteries have standard NP-F970 dimensions. Their casings use a flame-retardant ABS and PC blend with a matte finish.
Charge two batteries together
- Dual slots: charge both batteries simultaneously.
- LCD screen: view the charging status of both batteries.
- USB power: USB-C and Micro-USB inputs support 5 V / 2.4 A or 9 V / 2 A. A 9 V / 2 A adapter is recommended for optimal charging performance.
With a 9 V supply, charging current is 1 500 mA for one battery or 1 000 mA per channel with two batteries. Do not use the USB-C and Micro-USB inputs simultaneously. A power adapter is not included.
The kit also includes two battery protective covers, a 0.6 m USB-A to USB-C cable and a user manual.
| Manufacturer | SMALLRIG |
|---|---|
| Model | 3823 |
| Battery type | Lithium-ion |
| Battery model | NP-F970 |
| Single battery capacity | 7 800 mAh |
| Battery voltage | 7.2 V |
| Energy | 56.16 Wh |
| Maximum battery charging voltage | 8.4 V |
| Number of charging slots | 2 |
| Charger inputs | USB-C, Micro-USB |
| USB-C input specifications | 5 V / 2.4 A or 9 V / 2 A |
| Micro-USB input specifications | 5 V / 2.4 A or 9 V / 2 A |
| Output at 5 V input, one battery | 8.4 V / 1 000 mA |
| Output at 5 V input, two batteries | 8.4 V / 700 mA |
| Output at 9 V input, one battery | 8.4 V / 1 500 mA |
| Output at 9 V input, two batteries | 8.4 V / 1 000 mA |
| Display | LCD |
| Compatible batteries | Sony NP-F550, NP-F570, NP-F730, NP-F750, NP-F770, NP-F930, NP-F950, NP-F960, NP-F970 |
| Operating temperature | 0 °C to 40 °C |
| Material | ABS + PC |
| Single battery dimensions | 7.1 × 3.9 × 6.0 cm |
| Single battery weight | Approx. 313 g |
| Charger dimensions | 12.5 × 5.5 × 1.8 cm |
| Charger weight | Approx. 60 g |
| Battery decoding | Full |
| EAN | 6941590008301 |
|---|

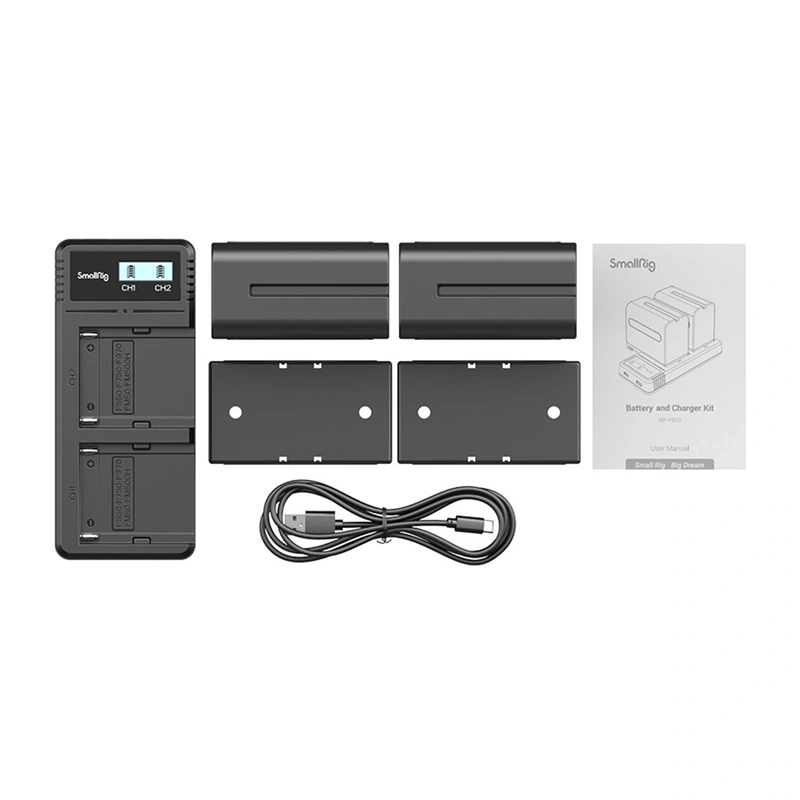

What is included in the kit?
Two NP-F970 7 800 mAh batteries, two battery protective covers, a dual charger, a 0.6 m USB-A to USB-C cable and a user manual. The power adapter is not included.
How can the charger be powered?
Use a compatible USB adapter, power bank or car charger supplying 5 V / 2.4 A or 9 V / 2 A. A 9 V / 2 A adapter is recommended. Do not use the USB-C and Micro-USB inputs simultaneously.
