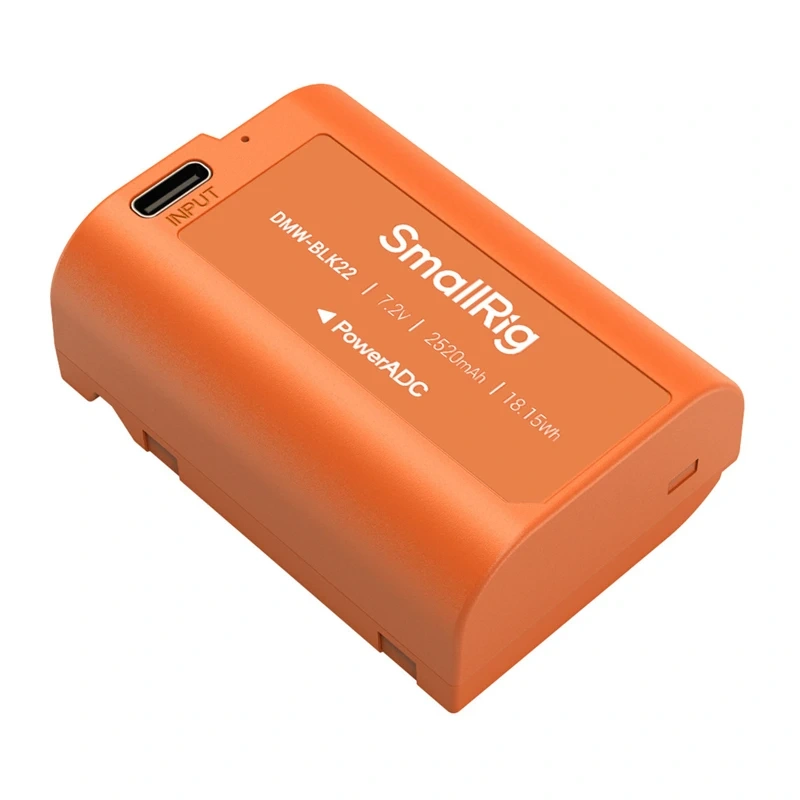

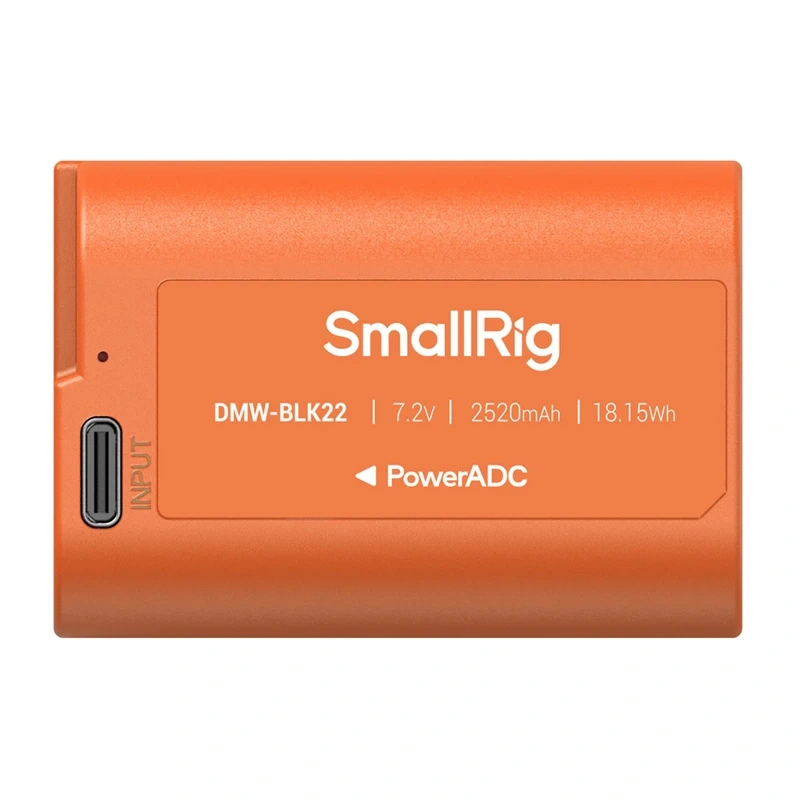

SmallRig DMW-BLK22 USB-C camera battery, 2520 mAh, orange
33.20 €
SMALLRIG
Products ID: 197568
In supplier warehouse
Available to order: 10+ pcs.
Delivery Time 5–12 business days
Delivery options to:
Choose countryThe SmallRig DMW-BLK22 is a 2520 mAh lithium-ion battery for cameras that use DMW-BLK22 batteries. Its built-in USB-C port allows charging without a separate camera battery charger, while the orange casing is easy to spot in a camera bag.
Charging and camera compatibility
- USB-C charging: up to 5 V / 2 A, with a full charge in approximately 2.5 hours. Connect it to a power bank, wall charger or car charger.
- Camera support: Panasonic Lumix GH7, GH6, GH5 II, S9, G9 II, S5 IIX, S5 II, S5, L10 and other cameras using DMW-BLK22 batteries.
- Full decoding: operates in compatible cameras without battery error messages.
- Construction: PC and ABS housing, a protection circuit and a maximum output current of 5 A.
What's included

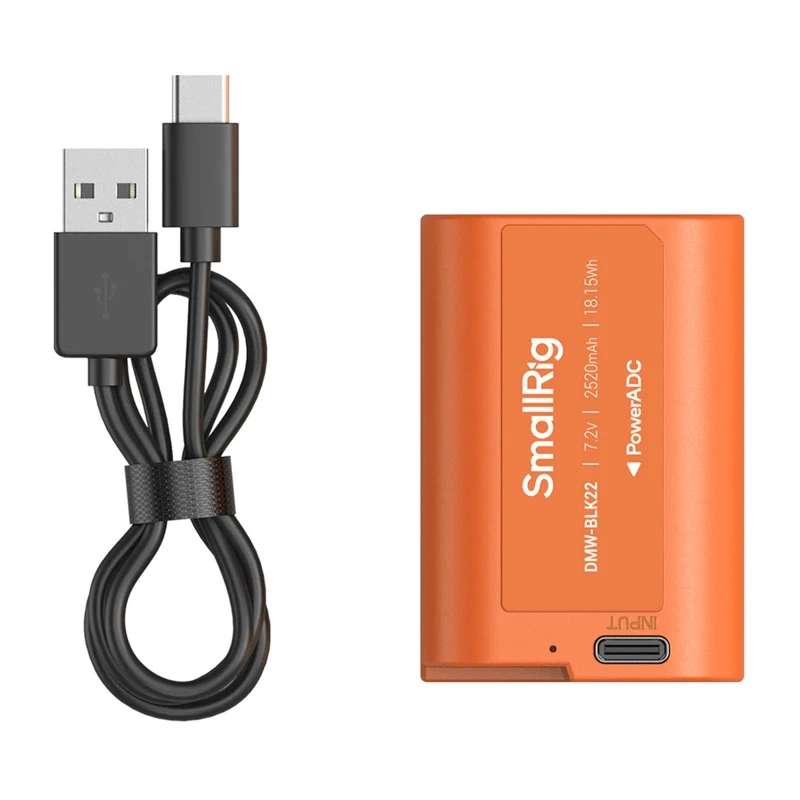

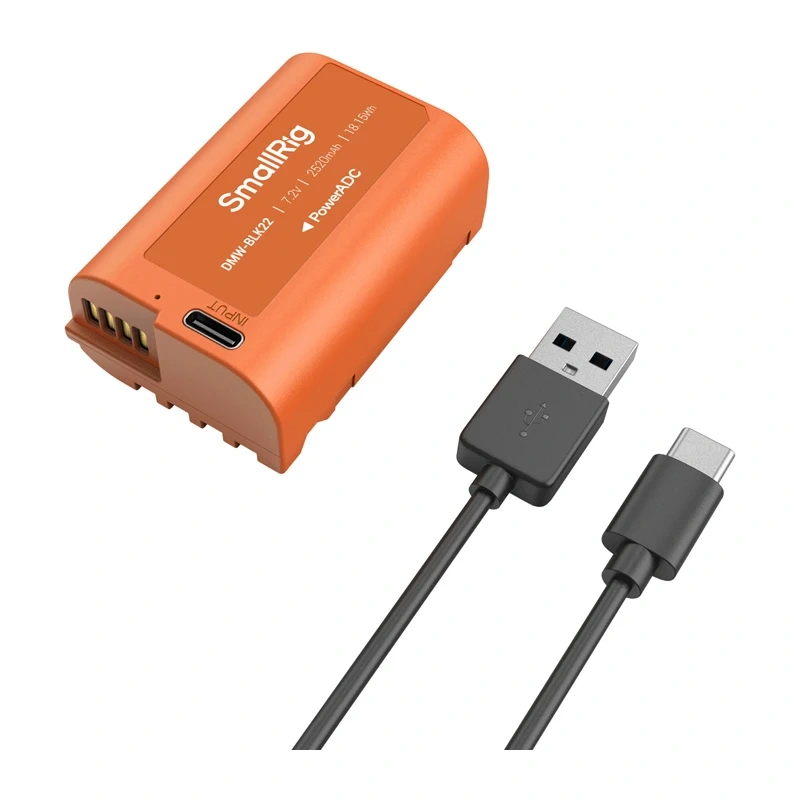

The set contains the battery, a 0.6 m USB-A to USB-C cable, a user manual and a user guide. The operating temperature range is 0–45 °C.
| Manufacturer | SmallRig |
|---|---|
| Model | DMW-BLK22 |
| Type | Lithium-ion battery |
| Nominal capacity | 2 520 mAh |
| Nominal voltage | 7.2 V |
| Energy | 18.15 Wh |
| Input voltage | 8.4 V |
| USB-C charging | 5 V / 2 A max. |
| Full charge time | Approximately 2.5 hours |
| Trickle charge current | 0.2C / 480 mA |
| Fast charge current | 0.7C / 1680 mA |
| Maximum input current | 0.7C |
| Maximum output current | 5 A |
| Deep discharge protection | 4.5–7.5 A |
| Cut-off voltage | 5.0 V |
| Operating temperature range | 0–45 °C |
| Dimensions | 56.6 × 39.2 × 20.8 mm |
| Battery weight | 81 ± 5 g |
| Product weight with cable | 100.4 ± 5 g |
| Material | PC + ABS |
| Colour | Orange |
| Compatibility | Panasonic Lumix GH7, GH6, GH5 II, S9, G9 II, S5 IIX, S5 II, S5, L10 and other models using the DMW-BLK22 battery |
| Decoding | Full; operates in compatible cameras without battery error messages |
| Certification | FCC, CE, RoHS, RCM, KC, ISED |
| EAN | 6941590019109 |
|---|
Do I need a separate camera battery charger?
The battery can be charged directly through its built-in USB-C port using a power bank, wall charger or car charger. It supports up to 5 V / 2 A charging, and a 0.6 m USB-A to USB-C cable is included.
Does it fit every Panasonic Lumix camera?
It is intended for cameras that use the DMW-BLK22 battery. Listed models include GH7, GH6, GH5 II, S9, G9 II, S5 IIX, S5 II, S5 and L10.
