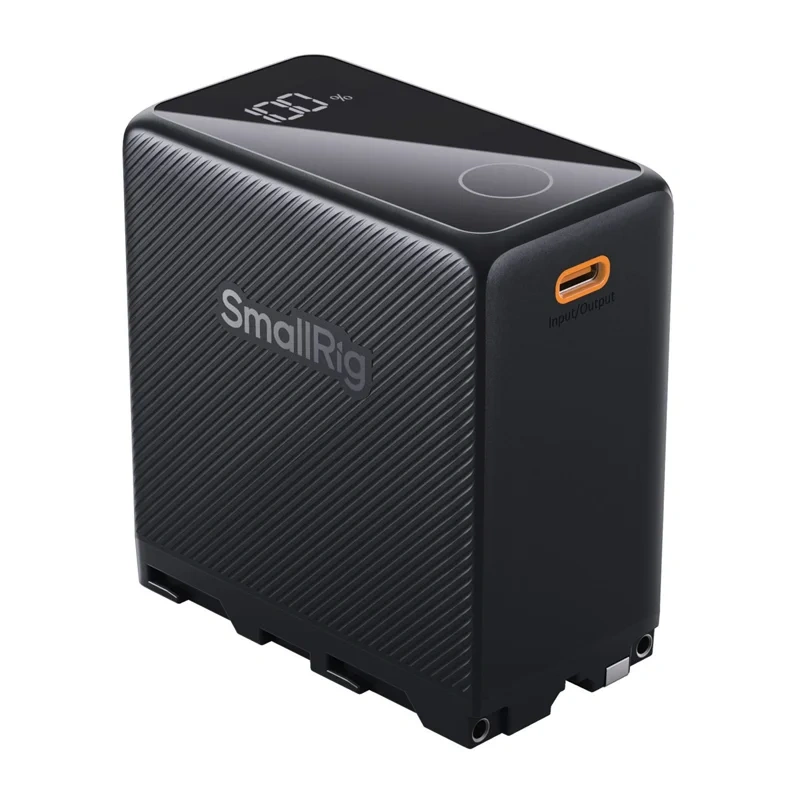

SMALLRIG NP-F970 10 500 mAh camera battery with USB-C, black
Delivery options to:
Choose countryThe SMALLRIG NP-F970 is a 10 500 mAh lithium-ion battery for cameras, LED lights, monitors and motorised sliders that use the NP-F970 standard. With an energy rating of 76.65 Wh and USB ports, it also works as a portable power source for smartphones, tablets and other electronics.
Power and fast charging
- USB-C input and output: up to 36 W with PD 3.0, QC 3.0, QC 2.0, FCP, AFC and PPS support.
- USB-A output: up to 27 W. Both USB ports can fast-charge devices simultaneously, with a combined output not exceeding 54 W.
- Battery charging: a full charge via USB-C takes approximately 3.5 hours with a compatible charger.

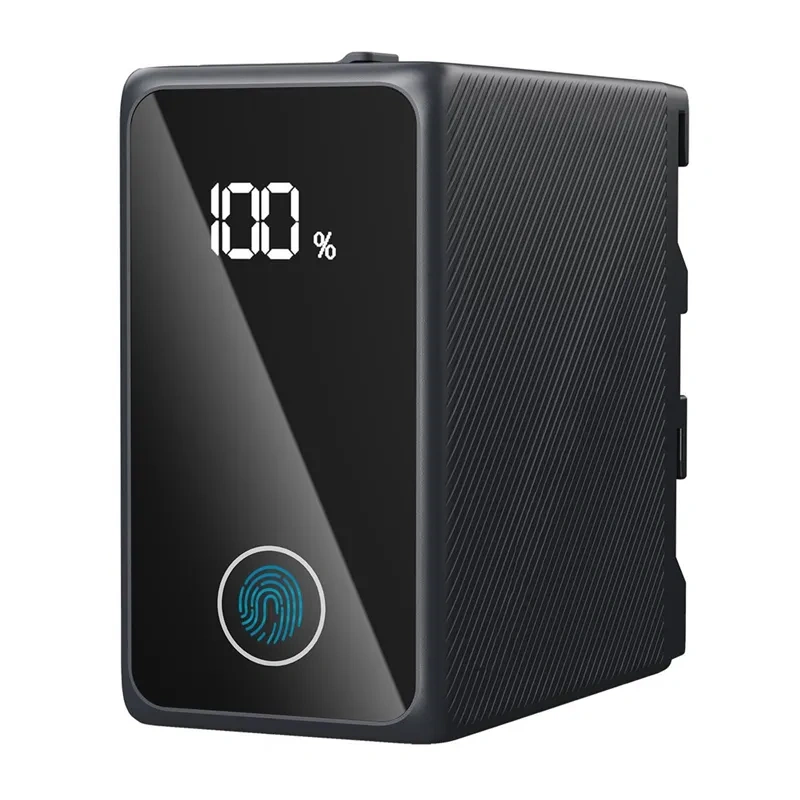

Battery level at a glance
The OLED display shows the current charge percentage, accessible using a touch button. The numbers flash when the level falls below 10%. You can disable the USB-C and USB-A ports and enter sleep mode to reduce power consumption during storage or transport.
The PC and ABS housing contains a power management system with overcurrent and deep-discharge protection. Operating temperatures are 0 to 45 °C during charging and -10 to 45 °C during discharge.

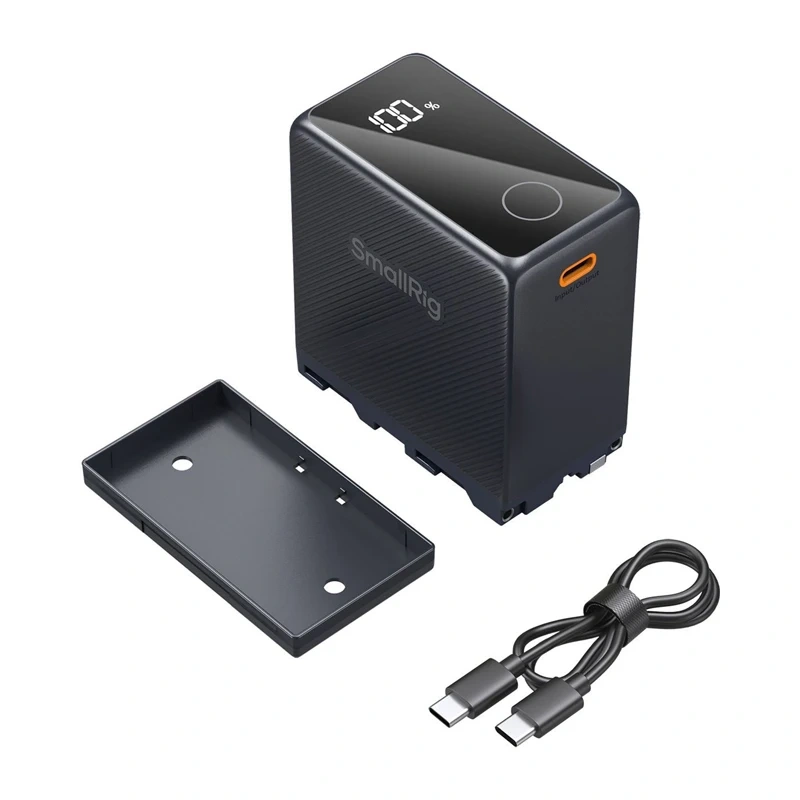

The set includes the battery, battery cover, USB-C to USB-C cable, user manual, user guide and warranty card.
| Manufacturer | SMALLRIG |
|---|---|
| Model | NP-F970 |
| Battery type | Lithium-ion |
| Capacity | 10 500 mAh |
| Energy | 76.65 Wh |
| Nominal voltage | 7.3 V |
| Charging voltage | 8.4 V |
| USB-C input/output | 5 V / 3 A, 9 V / 3 A, 12 V / 3 A |
| Maximum USB-C power | 36 W |
| USB-C protocols | PD 3.0, QC 3.0, QC 2.0, FCP, AFC, PPS |
| USB-A output | 5 V / 3 A, 9 V / 3 A, 12 V / 2.25 A |
| Maximum USB-A power | 27 W |
| USB-A protocols | QC 3.0, QC 2.0, FCP, AFC |
| Total power when using USB-C and USB-A simultaneously | Up to 54 W |
| Full charge time via USB-C | Approximately 3.5 hours |
| Maximum main port discharge current | 10 A |
| Discharge cut-off voltage | 5.2 V |
| Operating temperature during charging | 0 °C to 45 °C |
| Operating temperature during discharge | -10 °C to 45 °C |
| Display | OLED |
| Material | PC + ABS |
| Dimensions | Approximately 74.6 × 71.6 × 38.5 mm |
| Battery weight | 362 ± 10 g |
| Colour | Black |
| Protection | Overcurrent and deep-discharge protection |
| Certifications | FCC, CE, ISED |
| EAN | 6941590015750 |
|---|
Which devices is this battery compatible with?
It is designed for cameras, LED lights, monitors and motorised sliders using the NP-F970 standard. Its USB-C and USB-A outputs can also power compatible smartphones, tablets and other electronics.
Can USB-C deliver 36 W while USB-A delivers 27 W at the same time?
Both ports support simultaneous fast charging of two devices, but their combined output cannot exceed 54 W. The 36 W and 27 W ratings are the individual port maximums.
