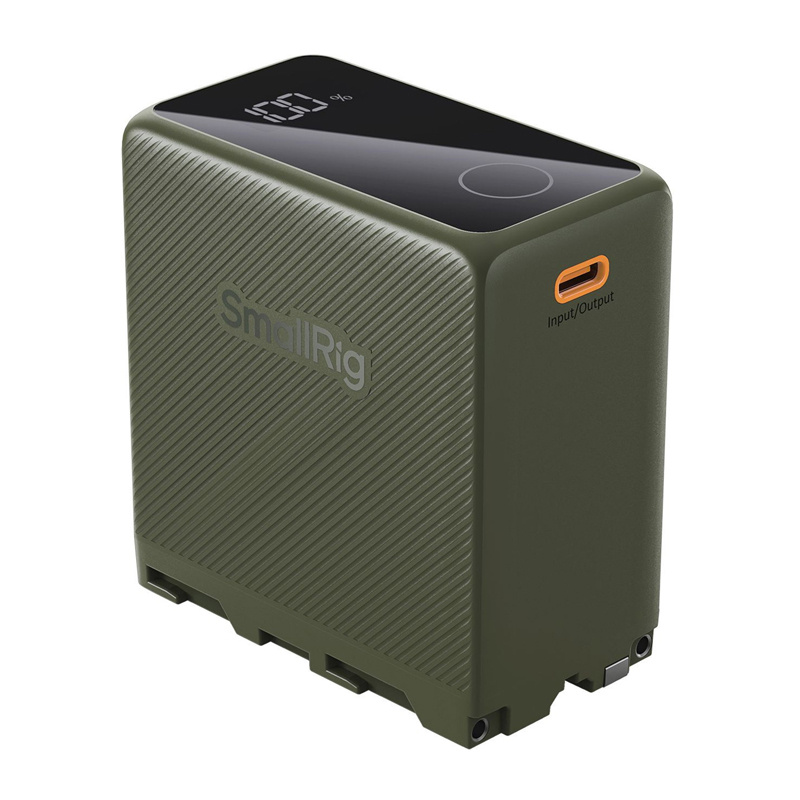

SmallRig NP-F970 camera battery, 10 500 mAh, USB-C, green
Delivery options to:
Choose countryThe SmallRig NP-F970 is a green lithium-ion battery with a capacity of 10 500 mAh and an energy rating of 76.65 Wh. It powers cameras, LED lights, monitors and motorised sliders using the NP-F970 standard, while its USB ports also let it serve as a power bank for mobile devices.
Power and charging
- USB-C: up to 36 W input and output, with a full charge in 3.5 hours using 36 W PD charging.
- USB-A: up to 27 W output for compatible phones, tablets and other devices.
- Simultaneous use: both USB ports can operate in parallel, with a combined output of up to 54 W.
Battery level at a glance

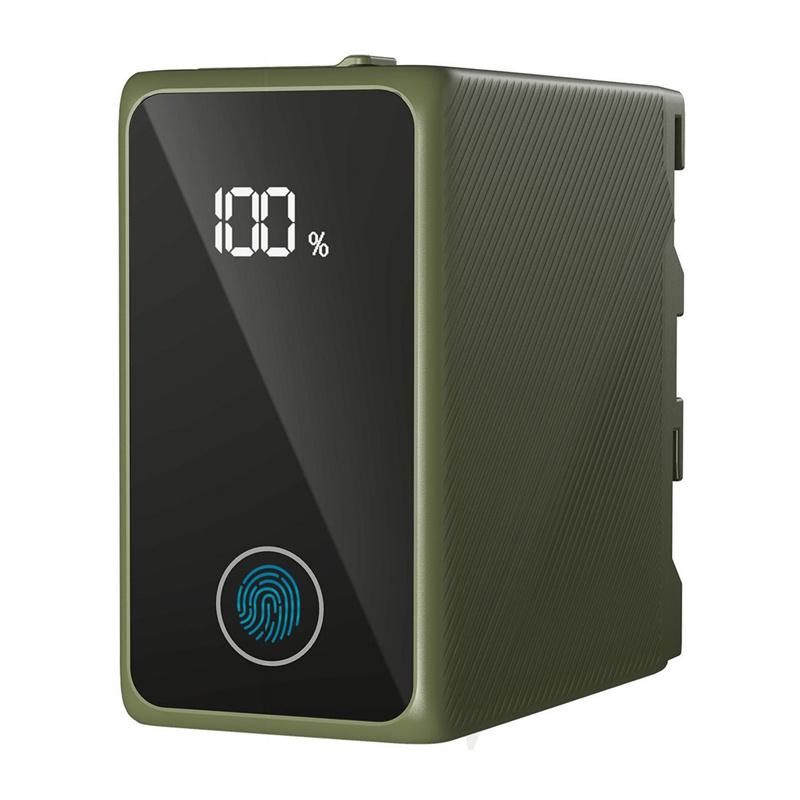

Press the button once to show the remaining battery percentage on the OLED display. During charging, it shows the charge level and a lightning icon. Below 10%, the display flashes for 3 seconds.
The PC+ABS casing houses built-in overcurrent and deep-discharge protection. Charging operation is specified for 0–45 °C, and discharge operation for −10–45 °C.
| Manufacturer | SmallRig |
|---|---|
| Model | NP-F970 |
| Type | Lithium-ion battery |
| Capacity | 10 500 mAh |
| Energy | 76.65 Wh |
| Nominal voltage | 7.3 V |
| Charging voltage | 8.4 V |
| USB-C input/output | 5 V / 3 A, 9 V / 3 A, 12 V / 3 A |
| Maximum USB-C power | 36 W |
| USB-C protocols | PD3.0, QC3.0, QC2.0, FCP, AFC, PPS |
| USB-A output | 5 V / 3 A, 9 V / 3 A, 12 V / 2.25 A |
| Maximum USB-A power | 27 W |
| USB-A protocols | QC3.0, QC2.0, FCP, AFC |
| Maximum combined USB-C and USB-A power | 54 W |
| Full charge time via USB-C | 3.5 hours |
| Maximum main-port discharge current | 10 A |
| Main-port overcurrent protection threshold | 11 A |
| Discharge cut-off voltage | 5.2 V |
| USB-C overcurrent protection | ≥3.5 A |
| USB-A overcurrent protection | 5 V / 9 V ≥3.5 A, 12 V ≥2.6 A |
| Operating temperature during charging | 0 °C to 45 °C |
| Operating temperature during discharge | -10 °C to 45 °C |
| Material | PC+ABS |
| Battery dimensions | 74.6 × 71.6 × 38.5 mm |
| Battery weight | 362 ± 10 g |
| Colour | Green |
| Display | OLED |
| EAN | 6941590016023 |
|---|
Which devices is this battery compatible with?
The main connector fits NP-F970-standard equipment, including compatible cameras, LED lights, monitors and motorised sliders. USB-C and USB-A can also power compatible phones, tablets and other mobile devices.
What is included?

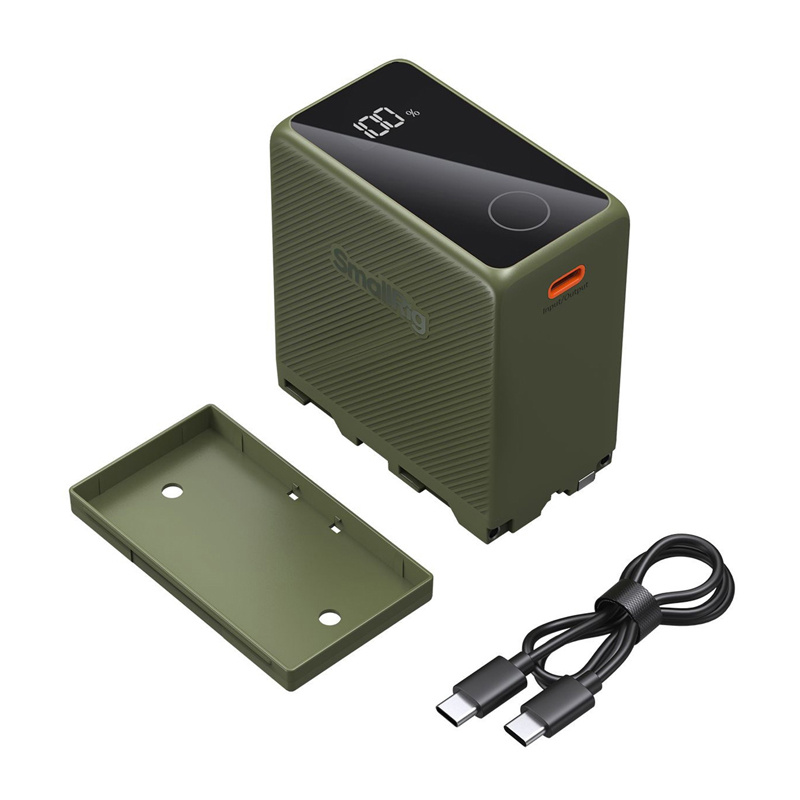

The set includes the SmallRig NP-F970 USB-C battery, a battery case, a USB-C to USB-C cable, operating instructions, a user manual and a warranty card.
