SmallRig 5483 NP-FZ100 kit with 2 batteries and dual-channel charger
Delivery options to:
Choose countryThe SmallRig 5483 kit combines 2 NP-FZ100 1940 mAh batteries with a dual-channel charger for compatible Sony cameras and camcorders. Keep a second battery available to replace a depleted one, and charge both batteries simultaneously.
Charging and status display
Independent charging channels deliver 8.4 V / 1 A each. With a sufficiently powerful source, charging 2 batteries takes about 2 hours. A power adapter rated at least 22.5 W is recommended for full charging speed.
- USB-C power: PD 3.0, QC 2.0 and QC 3.0 support allows use with a compatible mains adapter, car charger or power bank.
- 5 LEDs per channel: charge level is displayed in 20% increments, even without external power. A red indicator signals a very low battery level.
- Camera communication: full decoding allows compatible cameras to recognise the battery and display its charge level.
- Charging control: circuitry monitors temperature and voltage, may slow charging if temperature rises excessively, and stops charging if voltage is too high. Trickle charging is applied as the battery approaches full charge.
Compatibility and contents

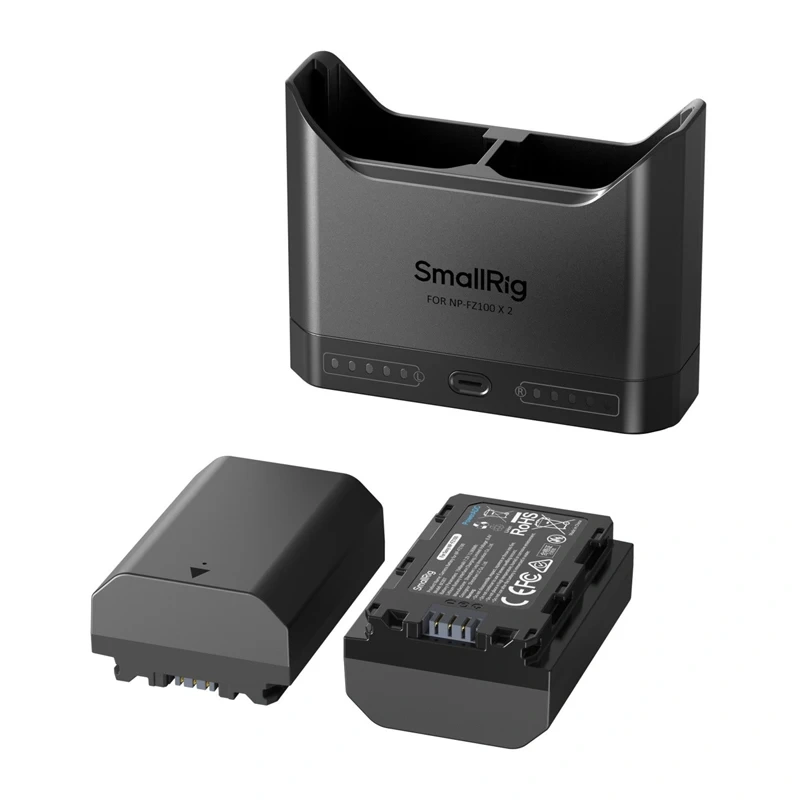

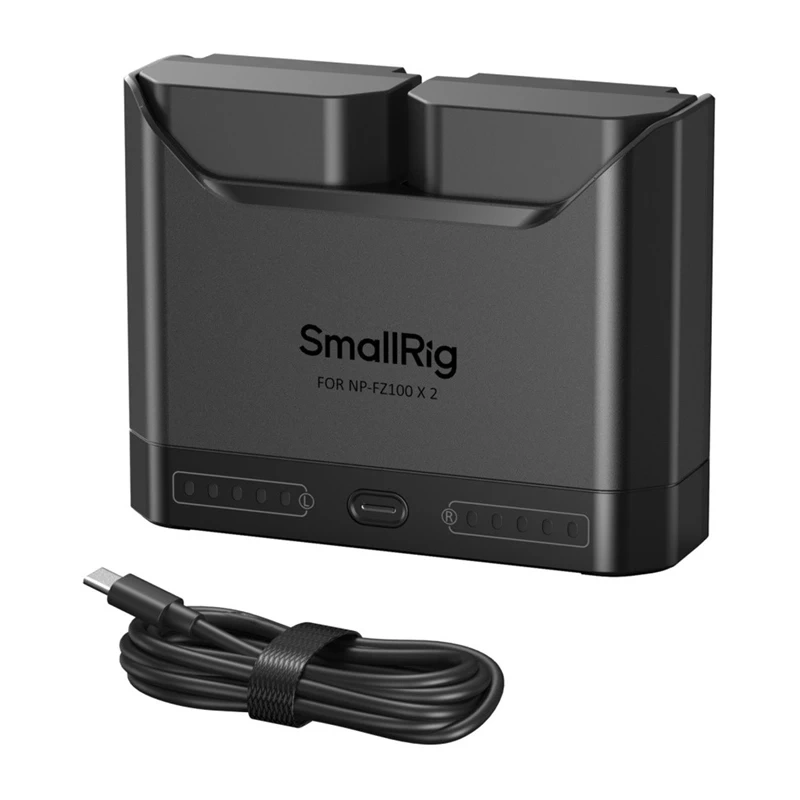

The kit is intended for compatible Sony cameras using NP-FZ100 batteries; supported models are listed in the specifications. It includes the charger, 2 batteries, 2 battery covers and a 1 m USB-C to USB-C cable rated for 60 W.
| Manufacturer | SmallRig |
|---|---|
| Model | 5483 |
| Battery type | Lithium-ion |
| Battery capacity | 1940 mAh |
| Rated energy | 13.968 Wh |
| Nominal battery voltage | 7.2 V |
| Charging cut-off voltage | 8.4 V |
| Standard charging current | 0.2C / 408 mA |
| Fast charging current | 0.7C / 1 428 mA |
| Maximum discharge current | 4 A |
| Discharge cut-off voltage | 5.0 V |
| USB-C input | 5 V / 2.4 A, 9 V / 2 A, 12 V / 1.75 A, 15 V / 1.5 A |
| Maximum input power | 22.5 W |
| Supported protocols | PD 3.0, QC 2.0, QC 3.0 |
| Charger output per channel | 8.4 V / 1 A |
| Number of charging channels | 2 |
| Approximate charging time for 2 batteries | About 2 hours |
| Charge indicator | 5 LEDs per channel |
| Charger operating temperature | 0 °C to 45 °C |
| Battery charging temperature | 0 °C to 45 °C |
| Battery discharge temperature | -10 °C to 60 °C |
| Material | PC + ABS |
| Charger dimensions | 83.2 × 63.9 × 26.8 mm |
| Charger weight | 205 ± 10 g |
| Certifications | CCC, FCC, CE, RoHS, ISED, KC, RCM |
| Compatible Sony models | α6600, α9 II, α7 III, α7R III, α1, α7C, α7S III, α7R IV, α7R V, α6700, FX3, FX30, α7CR, α7C II, α7 IV, ZV-E1, ZV-E10 II, α1 II, α7 V |
| Recommended power adapter output | At least 22.5 W for full charging speed |
| Charge level display | 20% increments; works without external power; red indicator for very low charge |
| EAN | 6941590025643 |
|---|
What is included in the kit?
An NP-FZ100 charger, 2 NP-FZ100 1940 mAh batteries, 2 battery covers and a 1 m USB-C to USB-C cable rated for 60 W.
What power source is needed to charge both batteries?
Use a compatible USB-C mains adapter, car charger or power bank. The charger supports PD 3.0, QC 2.0 and QC 3.0. An adapter rated at least 22.5 W is recommended for full speed; with sufficient power, both batteries charge in about 2 hours.
