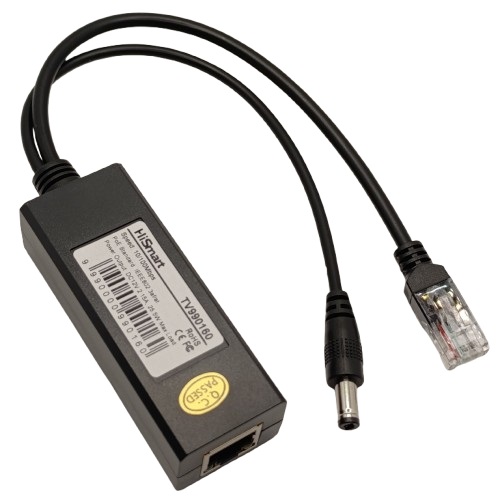

PoE 100M Splitter Cable 25.5W 12V
Price: 16.10 €
| Products ID: | 172698 |
|---|---|
| Manufactured by: | Extra Digital |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000990160 |
Delivery options to:
Choose countryThe PoE splitter cable separates power and data from a PoE network line, providing up to 100Mbps data transmission and DC 12V power output.
Key Features
- Supports IEEE802.3af, compatible with Mid-Span and End-Span modes
- Input voltage range: 44-57V, output voltage: DC 12V
- Rated power output of 25.5W with over 82% efficiency
- Connectors: 1x RJ45 female input, 1x RJ45 male output, 1x DC 5.5x2.1mm male output
- Built-in protection against short circuit, over voltage, and over-temperature
| Input Connector | 1x RJ45 female |
|---|---|
| Output Connectors | 1x RJ45 male, 1x DC 5.5x2.1mm male |
| Transmission Bandwidth | 10/100 Mbps |
| PoE Input Voltage | 44-57V |
| Output Voltage | DC 12V |
| Rated Power Output | 25.5W |
| PoE Standard | IEEE802.3af (Mid-Span 4,5+; 7,8- / End-Span 1,2+; 3,6-) |
| High Voltage Isolation | 1500V |
| Working Temperature | -20°C ~ +60°C |
| Working Humidity | 20-80% RH |
| Certifications | CE, FCC, ROHS |
| Warranty | 24 months |
What is the output voltage and power of this PoE splitter?
This PoE splitter provides a default DC 12V output with a rated power of up to 25.5W.
Which PoE standards are supported?
It supports the IEEE802.3af standard and is compatible with both Mid-Span (4,5+; 7,8-) and End-Span (1,2+; 3,6-).
