PoE 100M Splitter Cable 12W 5V DC 2.4A (5.5x2.1 mm)
Price: 16.30 €
| Products ID: | 172697 |
|---|---|
| Manufactured by: | Extra Digital |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000990153 |
Delivery options to:

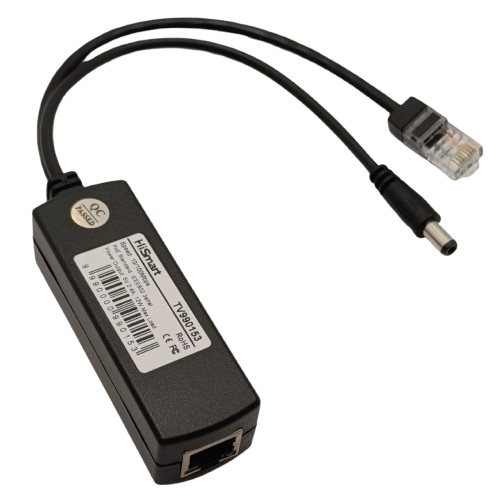

Choose countryThis PoE splitter cable separates power and network data, delivering 10/100 Mbps transmission and a 5V DC power output up to 12W for non-PoE network devices.
Key Features
- Supports IEEE802.3af standard (Mid-Span and End-Span)
- Voltage input 44-57V, power output 5V DC, 2.4A (12W)
- Connectors: 1x RJ45 female input, 1x RJ45 male output, 1x DC male output (5.5x2.1 mm)
- High voltage isolation: 1500V (input to output stage)
- Built-in short circuit, over voltage, and over-temperature protection
| Transmission bandwidth | 10/100 Mbps |
|---|---|
| PoE voltage input | 44-57V |
| Voltage output | DC 5V |
| Current output | 2.4A |
| Rated power output | 12W |
| DC connector size | 5.5 x 2.1 mm |
| PoE standard | IEEE802.3af |
| Efficiency | > 82% |
| Isolation | 1500V |
| Working temperature | -20°C ~ +60°C |
| Working humidity | 20-80% RH |
| Connectors | 1x RJ45 F input, 1x RJ45 M output, 1x DC M output |
What is the output voltage and current of this PoE splitter?
The splitter provides an output of DC 5V at up to 2.4A, with a maximum rated power of 12W.
What size is the DC output plug?
The DC power output plug measures 5.5x2.1 mm.
Which PoE standards are supported?
It supports the IEEE802.3af standard and is compatible with both Mid-Span (4,5+; 7,8-) and End-Span (1,2+; 3,6-) pin configurations.
