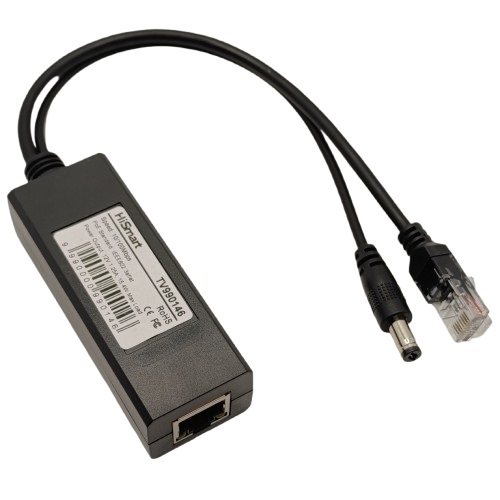

PoE 100M Splitter Cable 15.4W IEEE802.3af 12V DC
Price: 9.40 €
| Products ID: | 172704 |
|---|---|
| Manufactured by: | Extra Digital |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000990146 |
Delivery options to:
Choose countryPoE 100M splitter cable delivers 10/100 Mbps transmission bandwidth and splits network power and data into separate RJ45 and DC connectors.
Key Features
- Standard IEEE802.3af support (Mid-Span and End-Span compatible)
- Input voltage range: 44–57V with DC 12V power output
- Rated power output: 15.4W with over 82% efficiency
- Connectors: 1x RJ45 female input, 1x RJ45 male output, and 1x DC 5.5x2.1mm male output
- Built-in short circuit, over-voltage, and over-temperature protections
- High voltage isolation: 1500V
| Transmission bandwidth | 10/100Mbps |
|---|---|
| PoE standard | IEEE802.3af |
| Voltage input range | 44-57V |
| Voltage output | DC 12V |
| Rated power output | 15.4W |
| Efficiency | >82% |
| High voltage isolation | 1500V |
| Connectors | 1x RJ45 F input, 1x RJ45 M output, 1x DC 5.5x2.1mm M output |
| Working temperature | -20°C~+60°C |
| Working humidity | 20-80% RH |
What is the output voltage and power of this PoE splitter?
The PoE splitter outputs DC 12V with a rated power of 15.4W.
Which connectors are included on this cable?
It features 1x RJ45 female input port, 1x RJ45 male output port, and 1x DC male output port (5.5x2.1mm).
