USB Tester FNIRSI FNB-C2 240W PD 3.1
Price: 43.90 €
| Products ID: | 177422 |
|---|---|
| Manufactured by: | Fnirsi |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 5905156108127 |
Delivery options to:

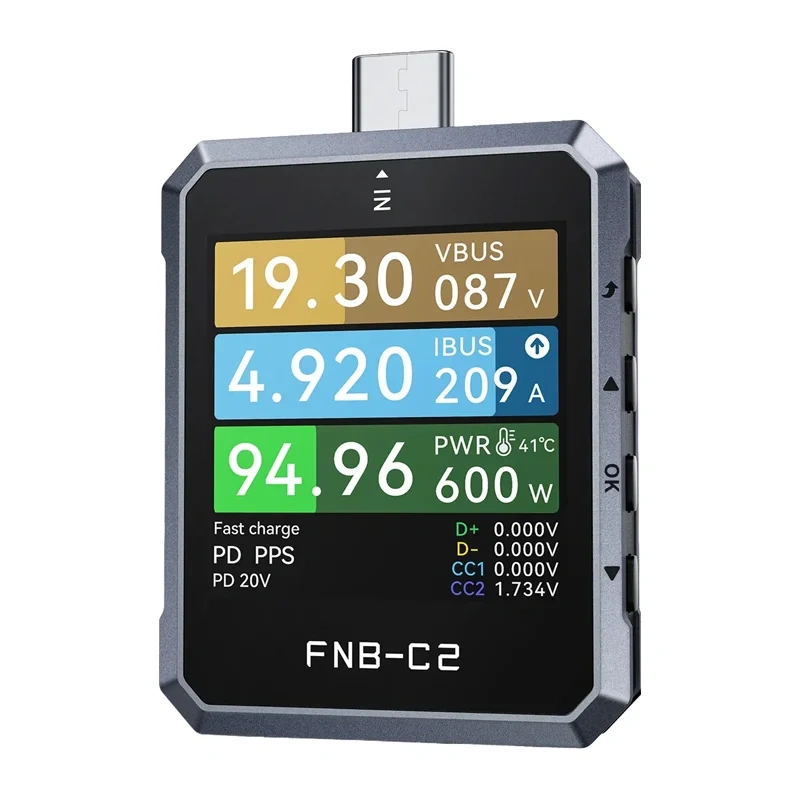

Choose countryThe FNIRSI FNB-C2 is a precision USB tester designed for analyzing power parameters, diagnosing fast-charging protocols, and inspecting USB-C cables.
Key Features
- External 20-bit ADC provides laboratory accuracy down to 0.000001 V, A, and W.
- Wide measurement range covering 4 to 50 V, currents up to 6.5 A, and power up to 240 W.
- Supports Power Delivery 3.1 EPR, UFCS, Quick Charge 2.0–5, FCP, SCP, and VOOC protocols.
- Reads USB-C E-Marker chips and simulates cable profiles up to 240 W EPR.
- 1.54-inch color TFT-LCD screen with automatic 4-way gravity rotation.
- Real-time ripple and VBUS waveform analysis with continuous recording up to 9 hours.
| Manufacturer | FNIRSI |
|---|---|
| Model | FNB-C2 |
| ADC | 20-bit |
| Voltage monitoring | Range: 4 ~ 50 V / Resolution: 0.000001 V / Accuracy: ±(0.2‰ + 2) |
| Current monitoring | Range: 0 ~ 6.5 A / Resolution: 0.000001 A / Accuracy: ±(0.5‰ + 2) |
| Power Monitoring | Range: 0 ~ 240 W / Resolution: 0.000001 W / Accuracy: ±(0.5‰ + 2) |
| D+/D− Voltage | Range: 0 ~ 3.3 V / Resolution: 0.001 V / Accuracy: ±(1.0% + 2) |
| CC1/CC2 Voltage | Range: 0 ~ 3.3 V / Resolution: 0.001 V / Accuracy: ±(1.0% + 2) |
| Device Temperature | Range: 1 ℃ / Resolution: 1 ℃ / Accuracy: ±(1.2% + 3) |
| Capacity | Range: 0 ~ 9,999.99 Ah / Resolution: 0.00001 Ah |
| Energy Consumption | Range: 0 ~ 9,999.99 Wh / Resolution: 0.00001 Wh |
| Recording time | Range: 9h / Resolution: 1s |
What is included in the package?
The package includes the USB tester and a user manual.
What are the supported voltage and power ranges?
The tester supports voltages from 4 to 50 V and power measurements up to 240 W.
Does the device require drivers to connect to a computer?
No, it connects to Windows and macOS computers without additional drivers and is recognized as a USB flash drive.
