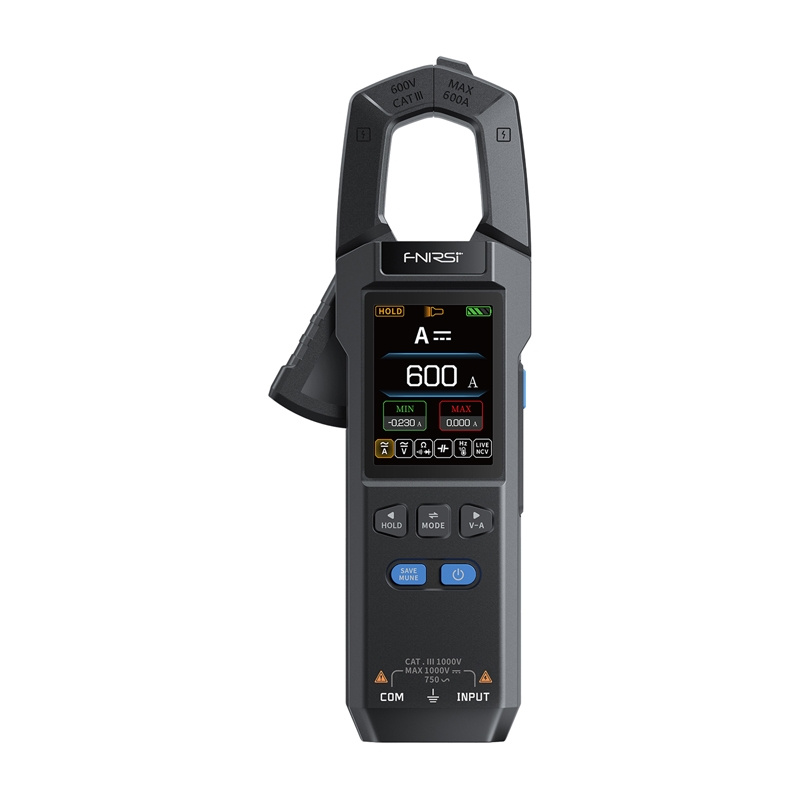

FNIRSI DMC-100 Digital Clamp Meter
Price: 41.30 €
| Products ID: | 175196 |
|---|---|
| Manufactured by: | Fnirsi |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 5907085521077 |
Delivery options to:
Choose countryThe FNIRSI DMC-100 is a digital clamp meter for universal electrical measurements, featuring a 25 mm clamp opening and non-contact voltage (NCV) detection.
Key Features
- Simultaneous voltage and current measurement with automatic power calculation
- True RMS measurement accuracy with up to 10000 counts resolution
- Measures AC/DC current, AC/DC voltage, resistance, capacitance, frequency, and temperature
- 2.0-inch color TFT display and integrated flashlight
- Built-in 1500 mAh lithium battery with USB-C charging
| Manufacturer | Fnirsi |
|---|---|
| Model | DMC-100 |
| Display | TFT 2.0" color screen |
| Maximum clamp diameter | 25mm |
| Power supply | Lithium battery 3.7V (1500 mAh) |
| Charging | USB Type-C, 5V/1A |
| DC voltage range | 9.999V / 99.99V / 999.9V |
| AC voltage range | 9.999V / 99.99V / 750.0V |
| DC current range | 99.99A / 600.0A |
| AC current range | 99.99A / 600.0A |
| Resistance range | 999.9Ω / 9.999kΩ / 99.99kΩ / 999.9kΩ / 9.999MΩ / 99.99MΩ |
| Capacitance range | 9.999nF - 99.99mF |
| Frequency range | 9.999Hz - 9.999MHz |
| Temperature range | (-55 ~ 1300°C) / (-67 ~ 2372°F) |
| Dimensions | 193 × 74 × 32 mm |
| Weight | 194 g |
What is the maximum clamp opening diameter?
The maximum clamp diameter is 25 mm.
What items are included in the package?
The package includes the clamp meter, USB-A to USB-C charging cable, temperature probe, measuring leads, and a user manual.
