FNIRSI 2C53T 3-in-1 Portable Oscilloscope Multimeter Signal Generator

Price: 82.70 €

Products ID:	175499
Manufactured by:	Fnirsi
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	5907085526973

Delivery options to:

Choose country

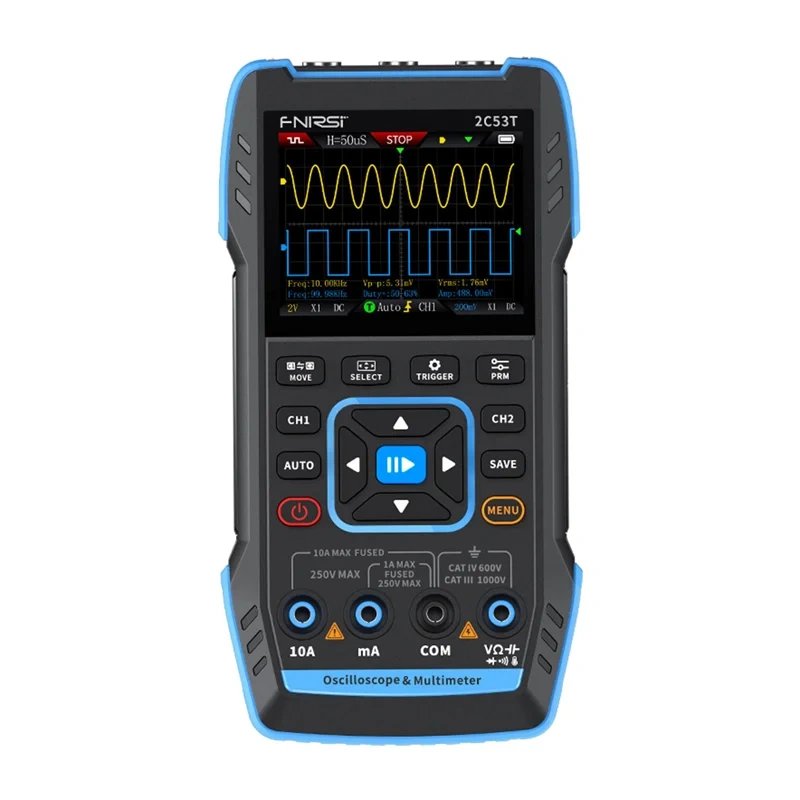

FNIRSI 2C53T 3-in-1 Portable Oscilloscope Multimeter Signal Generator

The FNIRSI 2C53T is a versatile 3-in-1 handheld test instrument combining a dual-channel digital oscilloscope, a high-resolution multimeter, and a function signal generator in a compact, rugged housing with a 2.8-inch color display.

Key Features

Dual-channel oscilloscope: 50 MHz analog bandwidth per channel and a real-time sampling rate of 250 MSa/s.
Digital multimeter: 19999-count resolution for measuring AC/DC voltage, current, resistance, capacitance, and temperature.
Signal generator: Single-channel output ranging from 1 Hz to 50 kHz with 13 selectable waveforms.
Durable build: Silicone-coated ABS casing with an integrated kickstand for benchtop use.
Battery operation: Powered by a 3000 mAh rechargeable lithium-ion battery via USB-C.

Display	2.8-inch HD color display (320 × 240 px)
Oscilloscope channels	2 channels
Analog bandwidth	50 MHz per channel
Real-time sampling rate	250 MSa/s
Signal generator frequency	1 Hz – 50 kHz
Battery	3000 mAh lithium-ion
Charging interface	USB-C (5 V / 1 A)
Safety rating	CAT II 300 V
Dimensions	167 × 89 × 35 mm
Weight	300 g

What accessories are included with the FNIRSI 2C53T?

The package includes the FNIRSI 2C53T device, one 10× measuring probe, an alligator clip probe, multimeter leads, a charging cable, a carrying bag, and a user manual.

What are the capabilities of the built-in signal generator?

The single-channel signal generator outputs frequencies from 1 Hz to 50 kHz with an amplitude of 0.1 to 3.0 V across 13 different waveforms.
