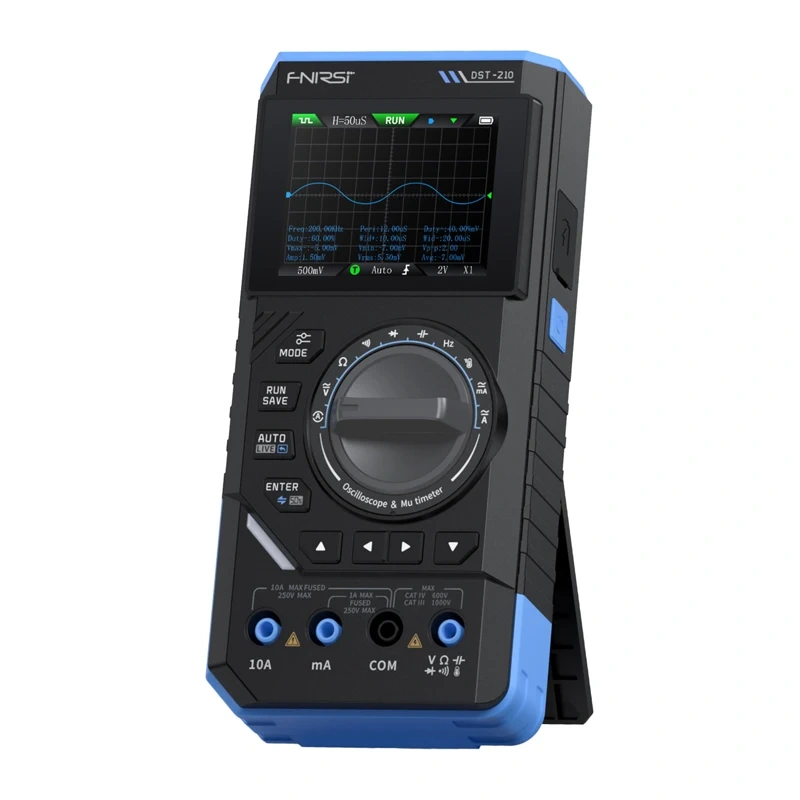

3-in-1 Handheld Digital Multimeter FNIRSI DST-210 with Oscilloscope & DDS Generator
65.60 €
Products ID: 185031
In supplier warehouse
Available to order: 10+ pcs.
Delivery Time 5–12 business days
Delivery options to:
Choose countryThe FNIRSI DST-210 is a versatile handheld testing tool combining a True RMS digital multimeter, a portable oscilloscope, and a DDS signal generator in one device for electrical diagnostics and field service.
Key Features & Highlights
- True RMS multimeter with up to 19,999 counts resolution for voltage, current, and component testing
- Integrated 10 MHz oscilloscope with 48 MSa/s sampling rate and Waveform Hold capability
- DDS function generator providing 13 waveform types across a 0–50 kHz range
- Clear 2.8-inch TFT color screen with selectable day and night viewing modes
- Built-in 3000 mAh rechargeable battery with USB-C port and protective silicone sleeve
| Manufacturer | FNIRSI |
|---|---|
| Model | DST-210 |
| Device type | 3-in-1 handheld digital multimeter: True RMS multimeter, oscilloscope, DDS signal generator |
| Screen | 2.8" color TFT display with day and night modes |
| Resolution | 19 999 counts |
| Oscilloscope | 10 MHz bandwidth, 48 MSa/s sampling, Auto/Normal/Single modes, Infinite Afterglow, Waveform Hold |
| Signal generator | DDS, 13 waveforms, 0–50 kHz, amplitude 0.1–3.0 V, duty cycle 0–100% |
| Voltage measurement | DC up to 1000 V, AC up to 750 V |
| Current measurement | AC/DC up to 9.999 A |
| Other measurements | Resistance, capacitance, frequency, temperature, diode test, continuity test, Live/Wire |
| Power supply | 3000 mAh battery, USB-C charging, auto power off 15/30/60 min |
| Construction | Reinforced housing with silicone cover, intelligent overload protection |
| EAN | 5905156102293 |
|---|
What is included in the package with the FNIRSI DST-210?
The package includes the FNIRSI DST-210 unit, a P6100 oscilloscope probe, test leads, a probe with alligator clips, a USB cable, and a user manual.
What are the main oscilloscope specifications of the DST-210?
It features a 10 MHz bandwidth, 48 MSa/s real-time sampling rate, Auto/Normal/Single trigger modes, Infinite Afterglow, and Waveform Hold functionality.
