FNIRSI LCR-ST2Plus Smart SMD Tweezers LCR Tester with 1.47" HD Screen

-4%

FNIRSI LCR-ST2Plus Smart SMD Tweezers LCR Tester with 1.47" HD Screen — Image 2

FNIRSI LCR-ST2Plus Smart SMD Tweezers LCR Tester with 1.47" HD Screen — Image 3

50.90 €48.90 €

Products ID: 177424

In supplier warehouse Available to order: 10+ pcs. Delivery Time 5–12 business days

Delivery options to:

Choose country

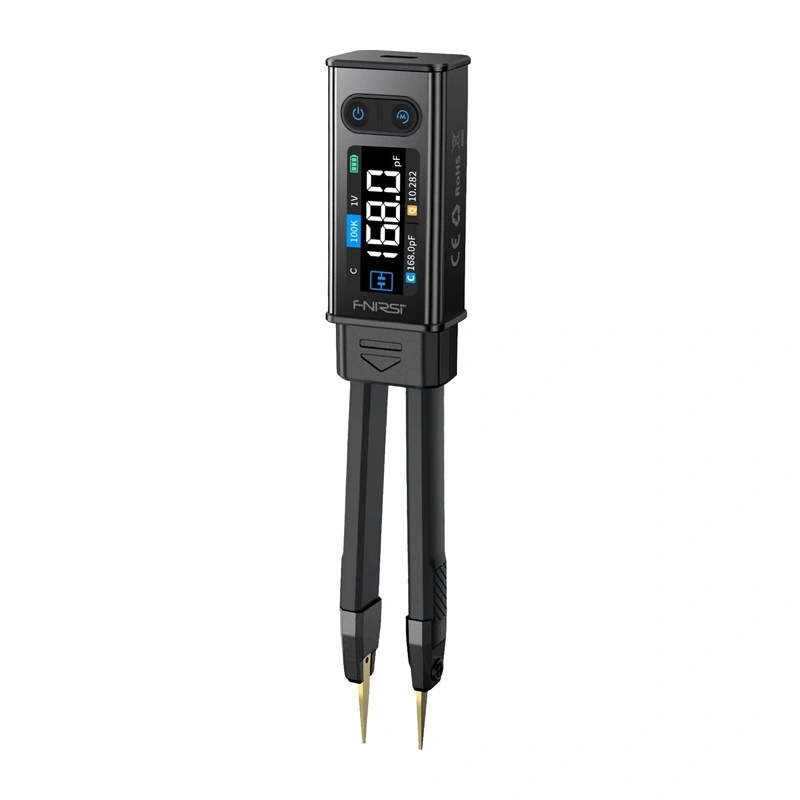

The FNIRSI LCR-ST2Plus is a compact tweezers-style LCR tester designed for precise measurement and analysis of electronic components.

Key Features

Measures resistance, capacitance, inductance, diodes, and voltage up to ±30 V.
Five test frequencies from 100 Hz to 100 kHz and four RMS test voltage levels.
1.47-inch HD color display with automatic screen rotation.
Smart component recognition and pass/fail sorting function.
Built-in 300 mAh lithium battery with up to 3 hours of operation and USB-C charging.

Manufacturer	FNIRSI
Model	LCR-ST2Plus
Standby time	approx. 3 hours
Display	1.47" HD
Dimensions	31 × 170.7 × 20.3 mm
Weight	approx. 60.8 g
Interface	Type-C
Operating temperature	0 ℃ ~ 50 ℃ (humidity ≤ 75%)
Storage temperature	-20 ℃ ~ 60 ℃ (humidity ≤ 75%)

EAN	5905156108165

What is included in the FNIRSI LCR-ST2Plus package?

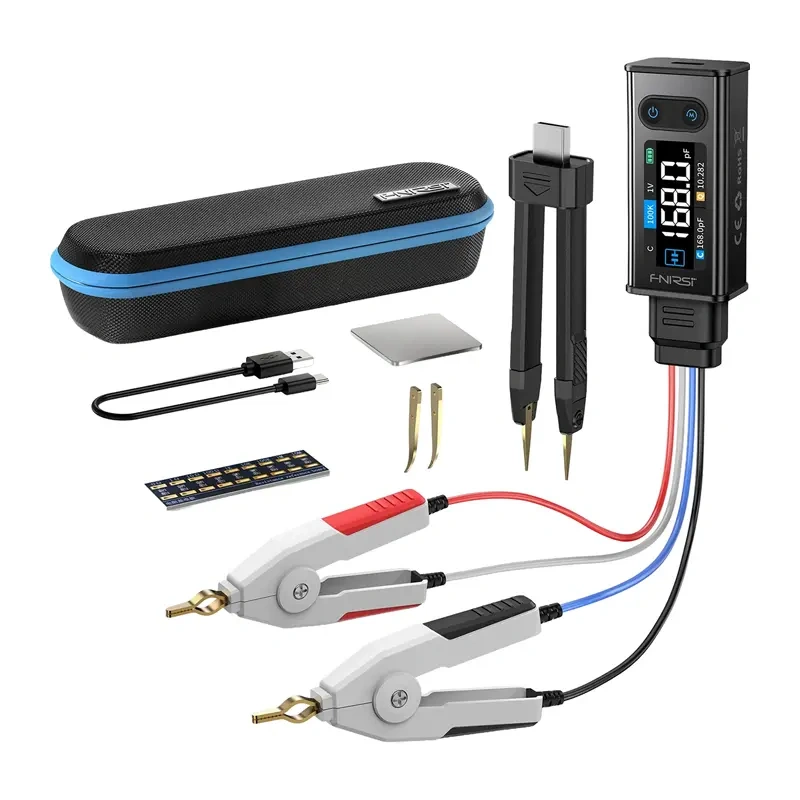

The package includes the LCR tester, storage case, curved probe, shorting plate, data cable, Kelvin clip lead, and user manual.

What measurements and secondary parameters does the device support?

It measures resistance (10 mΩ–10 MΩ), capacitance (1 pF–22 mF), inductance (1 μH–10 H), diode forward voltage, DC voltage up to ±30 V, and parameters including D, Q, Z, X, θ, and ESR.
