FNIRSI 1013D 7" Portable Tablet Oscilloscope
Price: 152.00 €
| Products ID: | 175537 |
|---|---|
| Manufactured by: | Fnirsi |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 5907085527086 |
Delivery options to:
Choose country

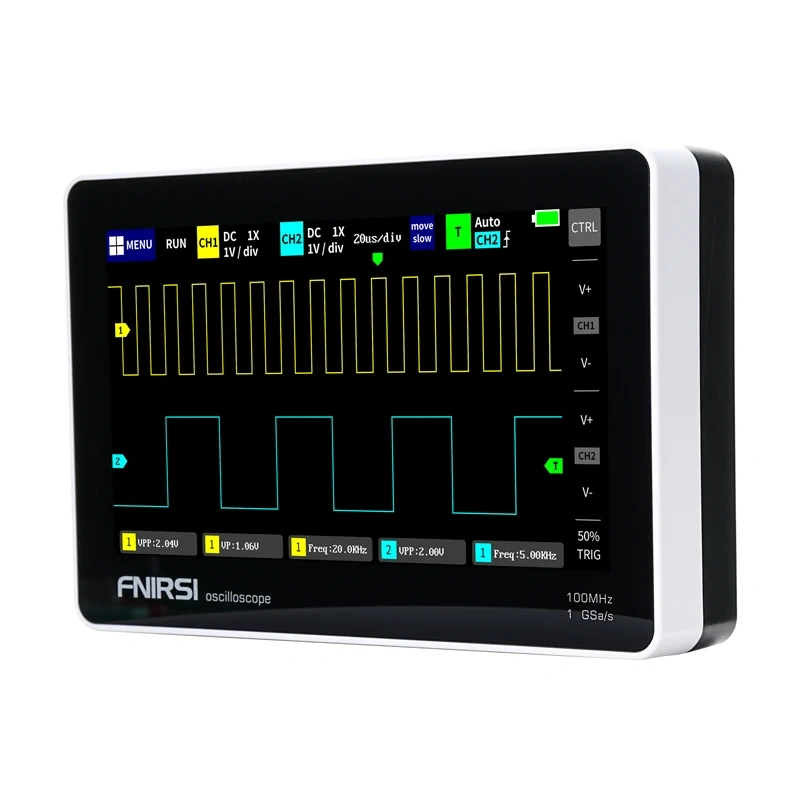

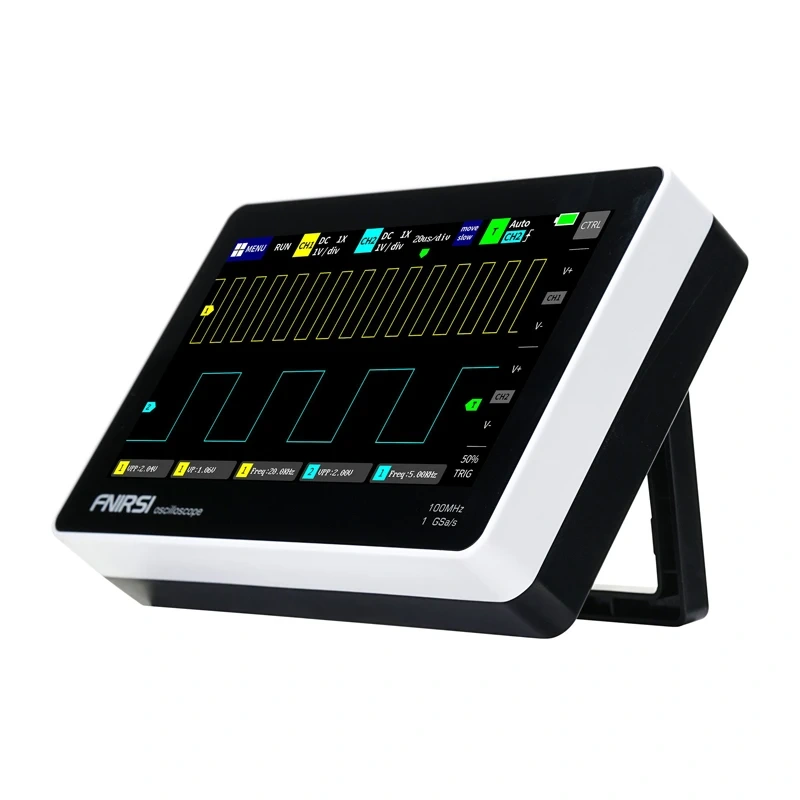

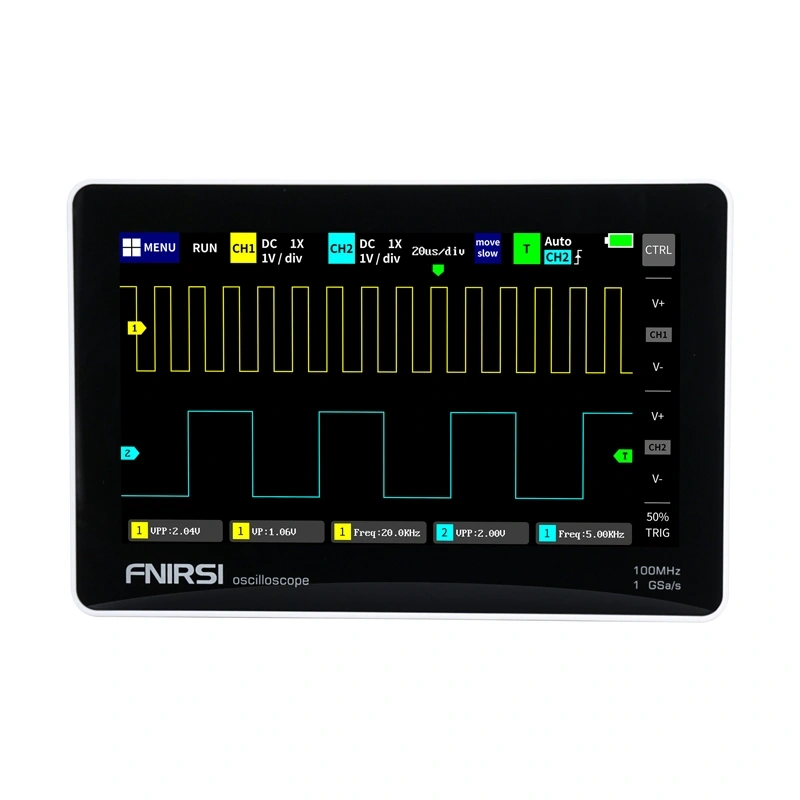

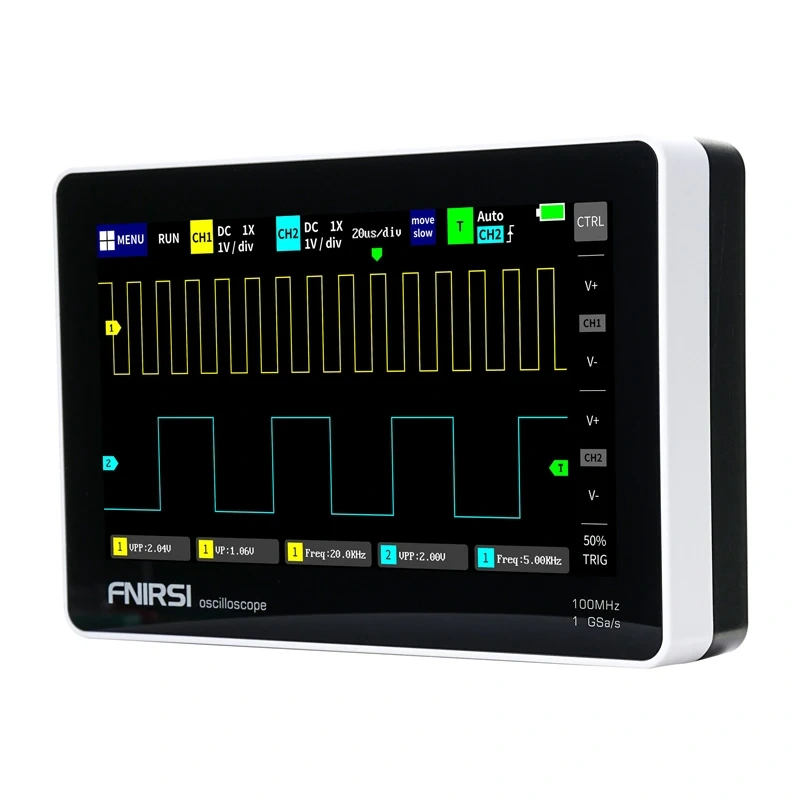

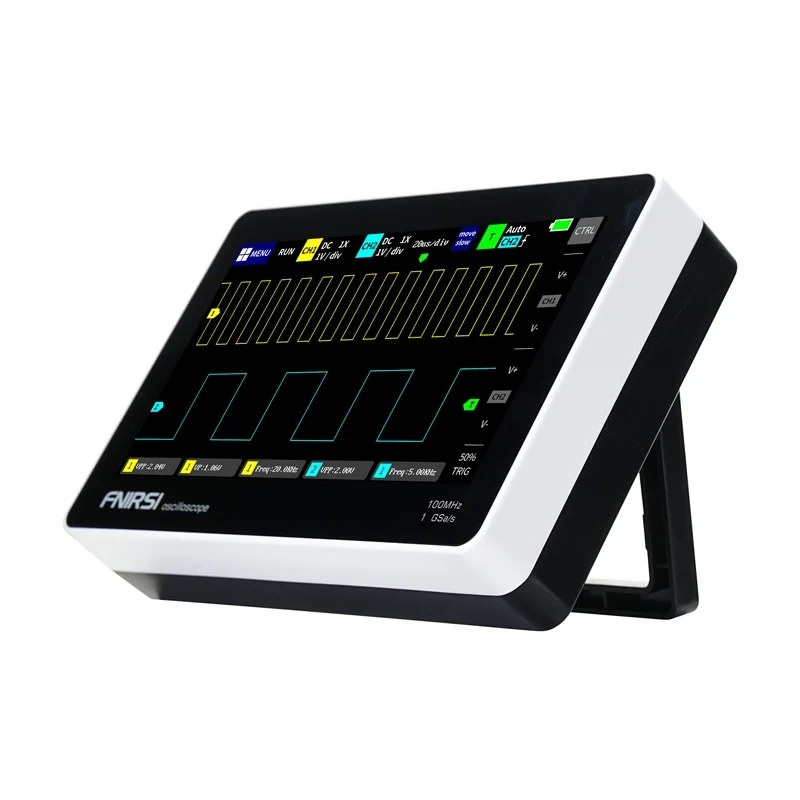

The FNIRSI 1013D is a portable 2-channel tablet oscilloscope featuring a 7-inch TFT touchscreen, designed for signal analysis in workshops, electronic design, and device servicing.
Key Features
- Bandwidth and Sampling: 100 MHz bandwidth and 1 GSa/s real-time sampling rate.
- Touch Display: 7-inch TFT capacitive touchscreen with 800 x 480 resolution.
- Dual Channels: 2 measurement channels with 1 MΩ input impedance for simultaneous signal analysis.
- Auto Adjustment: One-button automatic signal adjustment for fast parameter setup.
- Data Storage: 1 GB internal memory storing up to 1,000 screenshots and 1,000 waveform sets with USB export.
- Battery Life: Built-in 6,000 mAh lithium battery provides approximately 4 hours of operation.
| Manufacturer | FNIRSI |
|---|---|
| Model | 1013D |
| Number of channels | 2 |
| Bandwidth | 100 MHz |
| Sampling frequency | 1 GSa/s |
| Screen size | 7 inches |
| Resolution | 800 x 480 |
| Display technology | TFT |
| Highest test voltage | 1X: 40V, 10X: 400V |
| Memory depth | 240 Kbit |
| Input resistance | 1 MΩ |
| Sensitivity | 50 mV ~ 500 V |
| Time base | 50 s ~ 10 ns |
| Trigger modes | Single / Normal / Auto |
| Battery capacity | 6000 mAh |
| Operating time | 4 hours |
| Charging | USB-C 5V 2A/3A/4A |
| Dimensions | 184 x 124 x 50 mm |
What is included in the FNIRSI 1013D package?
The package includes the FNIRSI 1013D portable oscilloscope, two 100 MHz probes, a USB charger, and a user manual.
How long does the built-in battery last?
The integrated 6,000 mAh lithium battery provides approximately 4 hours of operation on a full charge.
How much waveform data can be stored on the device?
The device features 1 GB of internal memory, which can store up to 1,000 images and 1,000 waveform sets.
