xTool P3 80W Laser Engraving Machine All-in-One Kit
Price: 10638.40 €
| Products ID: | 175622 |
|---|---|
| Manufactured by: | Xtool |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 5905156100190 |
Delivery options to:

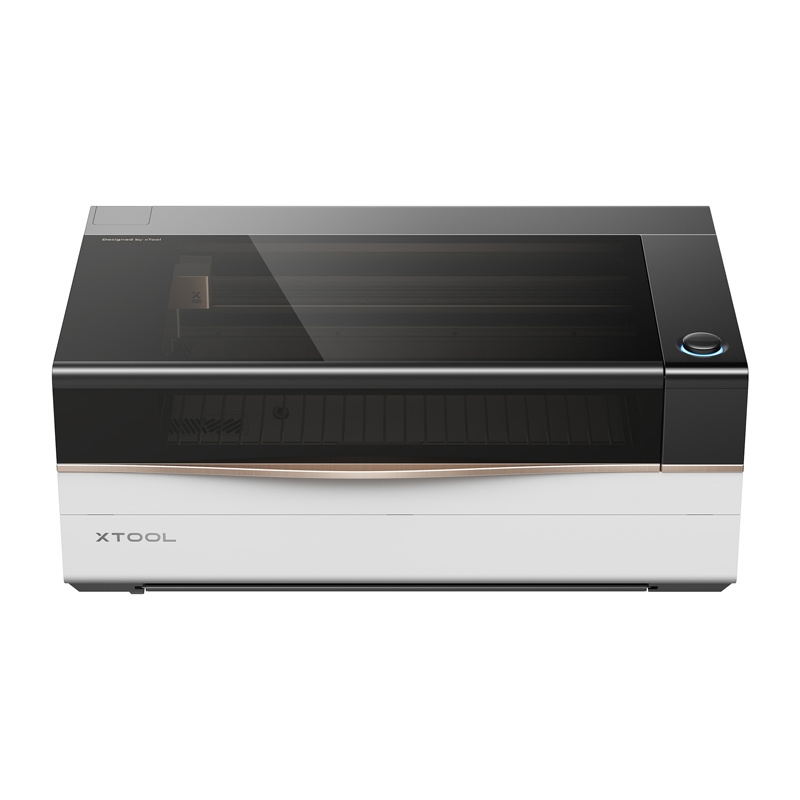

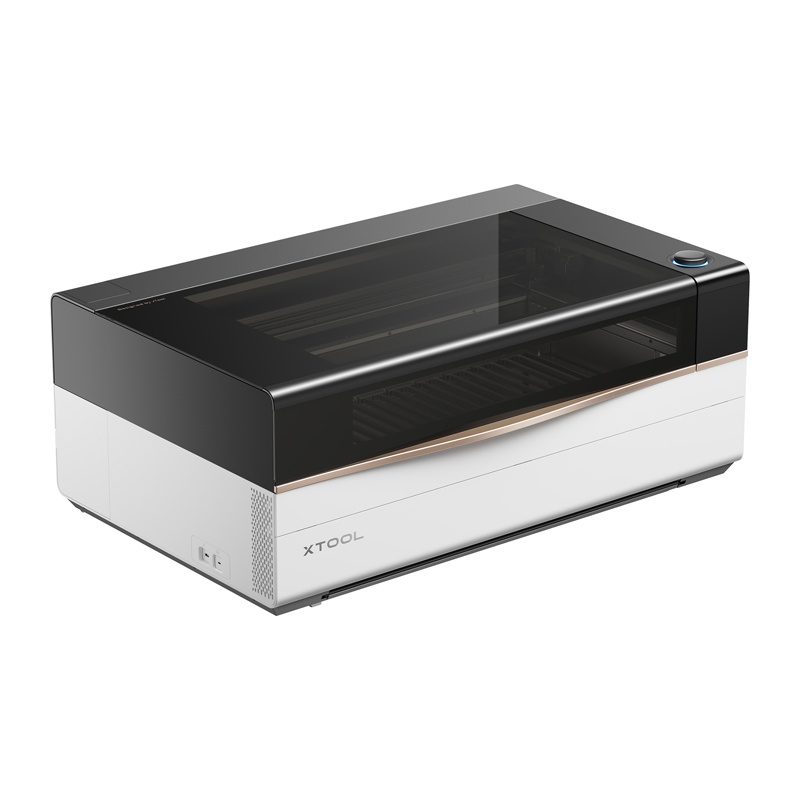

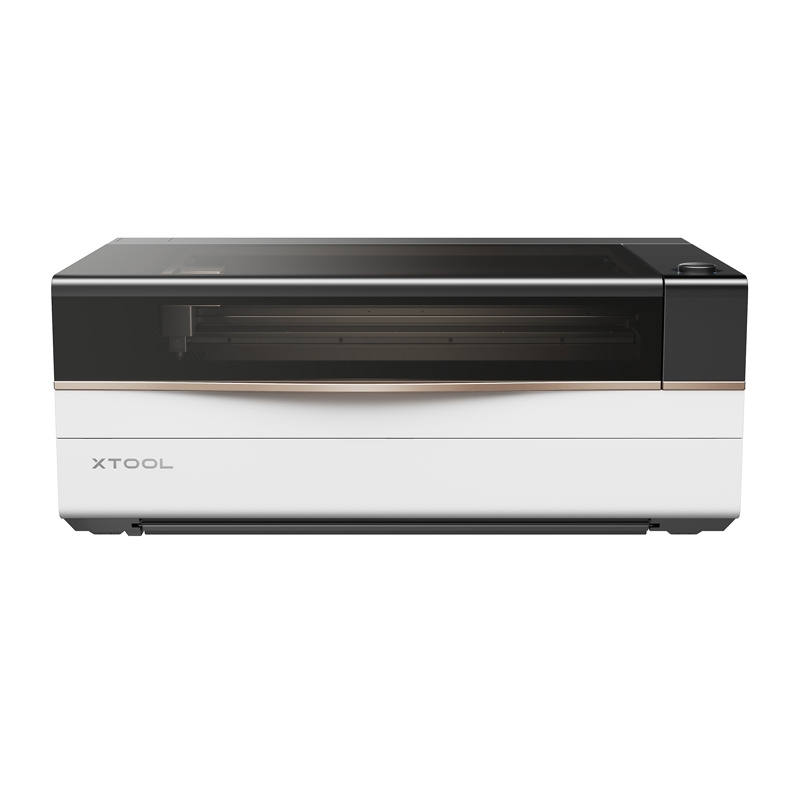

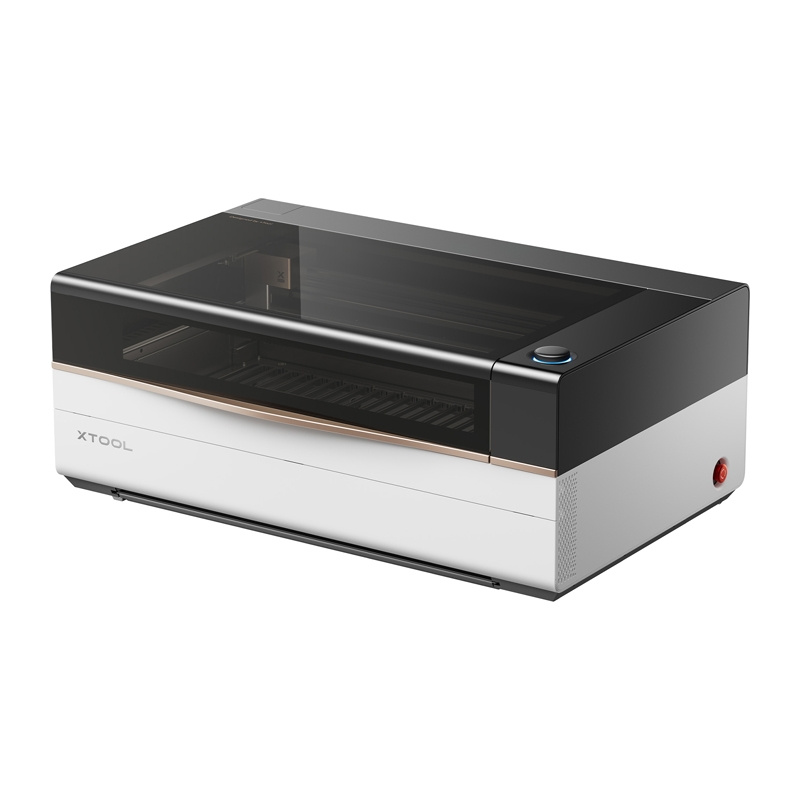

Choose countryThe xTool P3 80W is a high-performance desktop laser cutting and engraving machine powered by an 80 W CO2 laser tube, featuring a large 915 x 458 mm working area and speeds up to 1,200 mm/s. The all-in-one kit provides a complete production setup, including accessories for pass-through sheet feeding, rotary engraving, active air filtration, and workstation mobility.
Key Features
- 80 W CO2 Laser: cuts up to 20 mm basswood and 25 mm acrylic in a single pass, with support for wood, leather, fabric, and glass.
- ACS™ Automation: integrates dual-camera positioning, LiDAR ranging, and Auto-Lifting Focus for automated setup.
- Dual Camera System: includes a 16 MP SkyView panoramic camera for overall layout and a close-up camera for detailed positioning.
- All-in-One Kit Accessories: comes with the smart sheet feeder, RA3 rotary attachment, SafetyPro™ AP2 Max smoke absorber, and mobile workstation.
- Comprehensive Safety: equipped with 8 flame sensors, temperature monitoring, real-time internal side cameras, and an emergency stop switch.
| Laser Power | 80 W |
|---|---|
| Laser Type | CO2 |
| Working Area | 915 x 458 mm |
| Max. Working Speed | 1,200 mm/s |
| Max. Cutting Thickness (Basswood) | 20 mm |
| Max. Cutting Thickness (Acrylic) | 25 mm |
| Max. Material Height | 220 mm |
| Focus Mode | Autofocus (LiDAR) |
| Positioning Accuracy | 0.2 mm |
| Movement Accuracy | 0.01 mm |
| Built-in Cameras | 16 MP SkyView panoramic camera + close-up camera + 2 side cameras |
| Connectivity | USB, Wi-Fi |
| Supported Software | xTool Studio |
| Operating System Compatibility | Windows, macOS |
| Supported File Formats | SVG, DXF, JPG, JPEG, PNG, BMP, TIF |
| Safety Certification | Class 1 Laser Safety |
| Machine Dimensions | 1250 x 780 x 496 mm |
| Machine Weight | 105 kg |
| Smoke Absorber Airflow | 700 m³/h |
| Smart Feeder Working Area | 610 x 1300 mm |
| Rotary Attachment Max. Diameter | 130 mm |
| Workstation Load Capacity | Up to 200 kg |

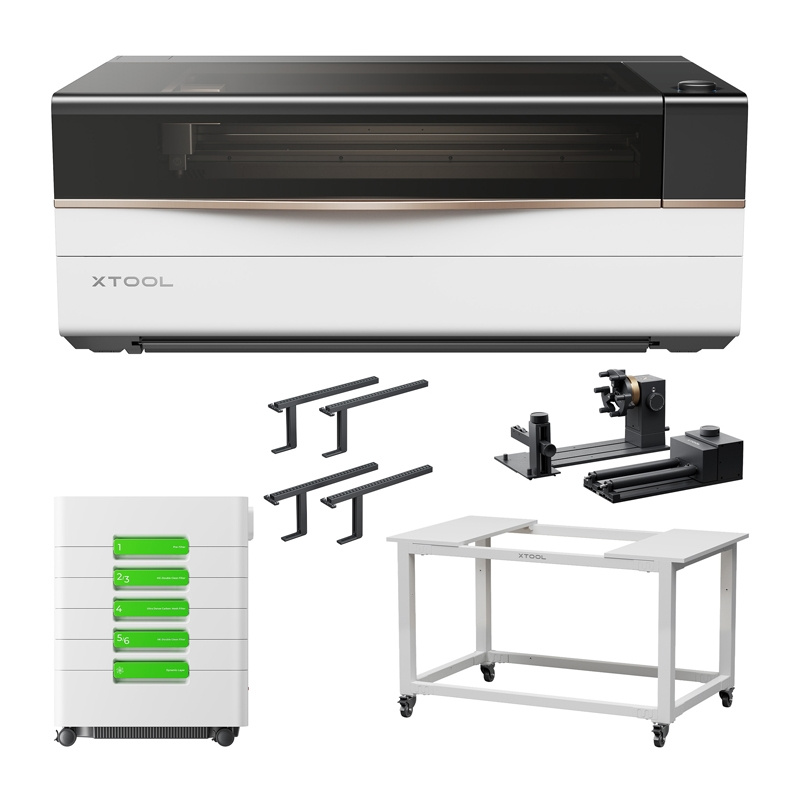

What is included in the xTool P3 All-in-One Kit?
The kit includes the xTool P3 80W laser machine, smart automatic feeder, RA3 rotary attachment, SafetyPro AP2 Max smoke absorber, and a mobile workstation with casters.
What cutting capacities does the 80 W CO2 laser offer?
The laser can cut up to 20 mm basswood and up to 25 mm acrylic in a single pass.
How does the machine focus on materials?
It uses an integrated LiDAR system for distance measurement and automated focus adjustment, supported by the AutoLift Base.
