XTOOL M2 Standard 20W Laser Engraver and Cutter with CMYK Module
Price: 1299.90 €
| Products ID: | 177749 |
|---|---|
| Manufactured by: | Xtool |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6928819536395 |
Delivery options to:
Choose country

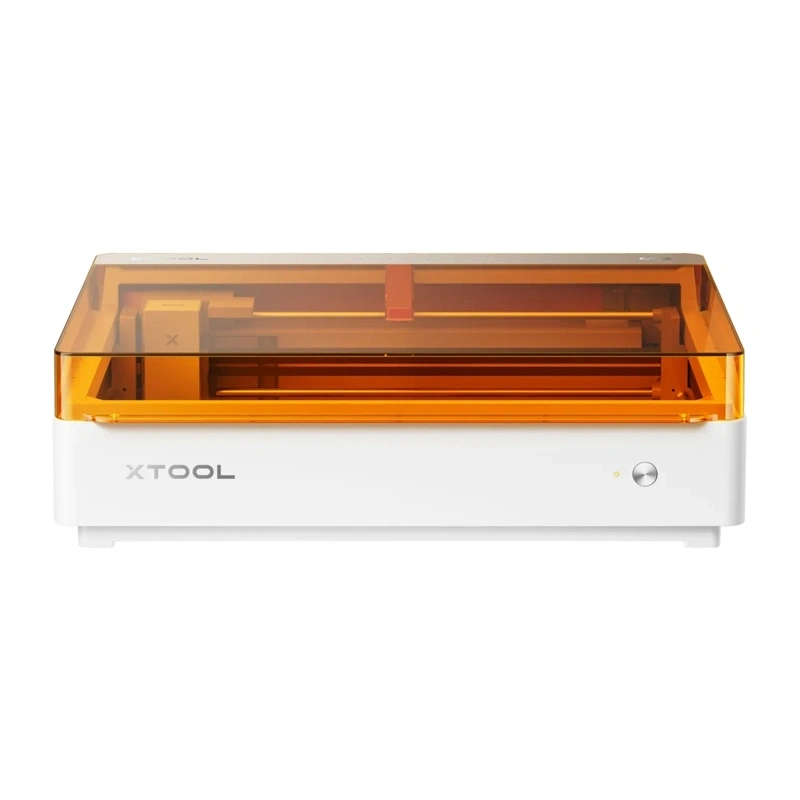

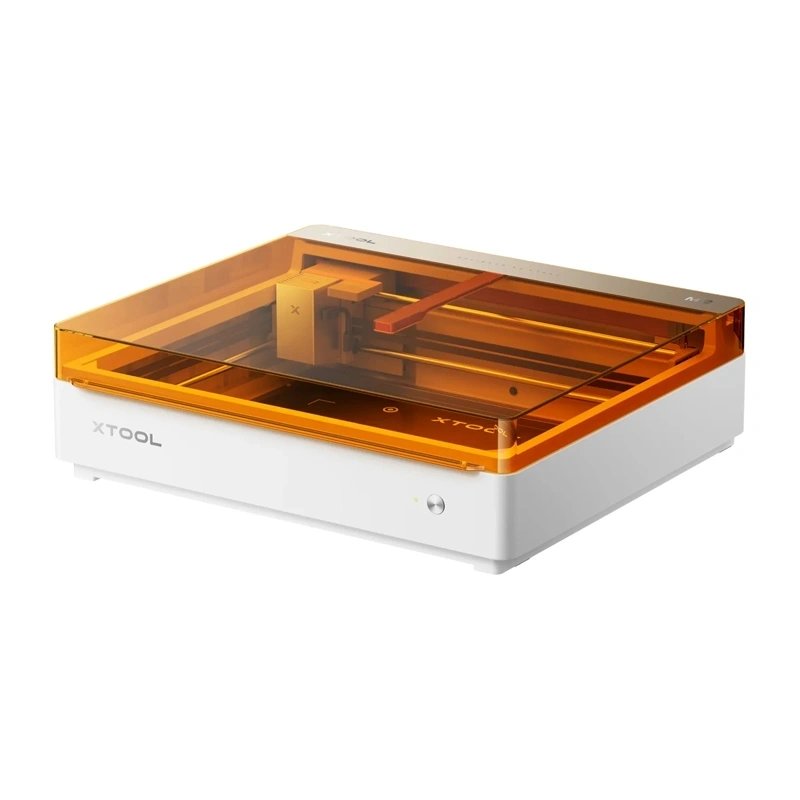

The XTOOL M2 20W is an advanced laser cutting and engraving machine equipped with an interchangeable CMYK inkjet printing module for color applications. Built with a 20 W diode laser, dual camera positioning, and autofocus, it delivers high precision across a broad range of materials.
Key Features
- 20 W diode laser with a fine 0.06 × 0.08 mm focal spot for sharp, detailed engraving.

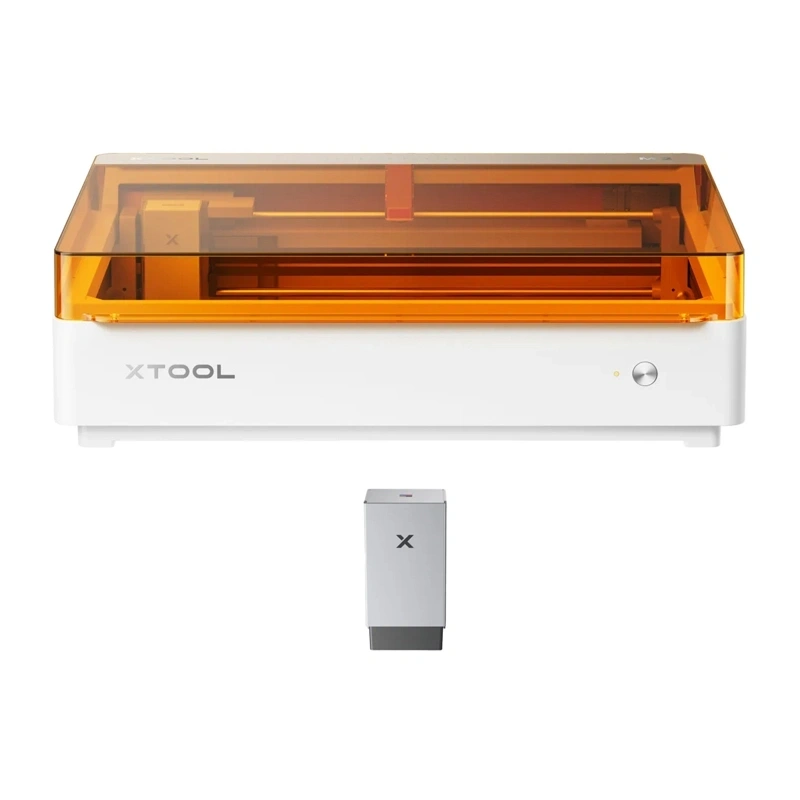

- Integrated CMYK inkjet module provides color printing on a 300 × 294 mm surface.
- Dual camera system (5 MP panoramic and 2 MP close-up) with real-time preview for accurate alignment.
- Fully enclosed Class 1 laser safety design certified by TÜV SÜD.
- USB and Wi-Fi connectivity supporting xTool Studio software on Windows and macOS.
| Manufacturer | XTOOL |
|---|---|
| Model | M2 |
| Laser type | 20 W diode (Blue Diode Laser) |
| Operating modes | Laser cutting, laser engraving, CMYK inkjet printing |
| Working area (laser) | 426 × 320 mm |
| Working area (CMYK printing mode) | 300 × 294 mm |
| Maximum operating speed | 600 mm/s |
| Maximum cutting thickness for linden wood | 10 mm (single pass) |
| Maximum cutting thickness of black acrylic | 8 mm (single pass) |
| Laser spot size | 0.06 × 0.08 mm |
| Positioning accuracy | up to 0.2 mm |
| Measurement accuracy | 0.1 mm |
| Motion accuracy | 0.01 mm |
| Camera system | 5 MP panoramic camera + 2 MP close-up camera |
| Focus adjustment | automatic |
| Connectivity | USB, Wi-Fi |
| Software | xTool Studio |
| Supported operating systems | Windows, macOS |
| Supported file formats | SVG, DXF, JPG, JPEG, PNG, BMP |
| Safety certification | Laser Class 1 (TÜV SÜD) |
| Device Dimensions | 610 × 569 × 180 mm |
| Weight | 12.3 kg |
| Maximum Power Consumption | 200 W |
| Power Supply | 100–240 V AC, 50/60 Hz |
What thickness of materials can the laser cut in a single pass?
The XTOOL M2 can cut linden wood up to 10 mm thick and black acrylic up to 8 mm thick in a single pass.
What are the dimensions of the working area?
The laser working area measures 426 × 320 mm, while the CMYK color printing area is 300 × 294 mm.
