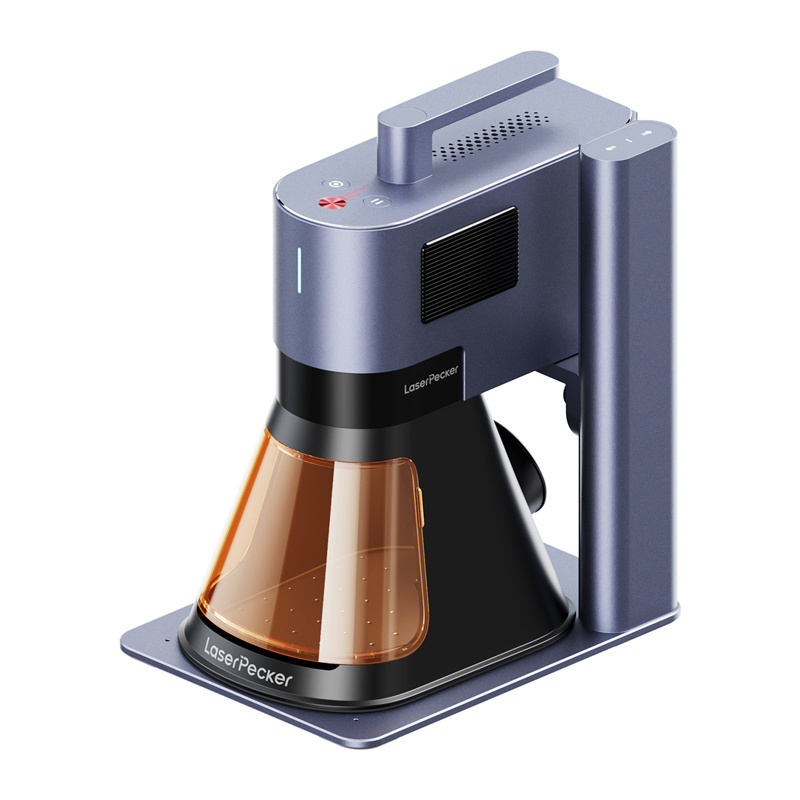

LaserPecker LP5 Laser Engraver Protective Edition LP5-SV
Price: 2895.60 €
| Products ID: | 175623 |
|---|---|
| Manufactured by: | Laserpecker |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6974109081809 |
Delivery options to:
Choose countryThe LaserPecker LP5 Protective Edition is a versatile, compact laser engraver equipped with a dual laser system combining a 20W diode laser and a 20W fiber laser. It enables precise engraving, color marking, 3D grayscale embossing, and metal cutting across a wide variety of materials.
Key Features
- Dual laser system: 20W diode laser (450 nm) and 20W fiber laser (1064 nm)
- Maximum operating speed of up to 10,000 mm/s with 0.0027 mm engraving precision
- Working area of 120 × 160 mm (ellipse) and 100 × 100 mm (square)
- Supports color engraving and 3D grayscale embossing
- Direct engraving from a USB flash drive, compatible with PC software and mobile apps

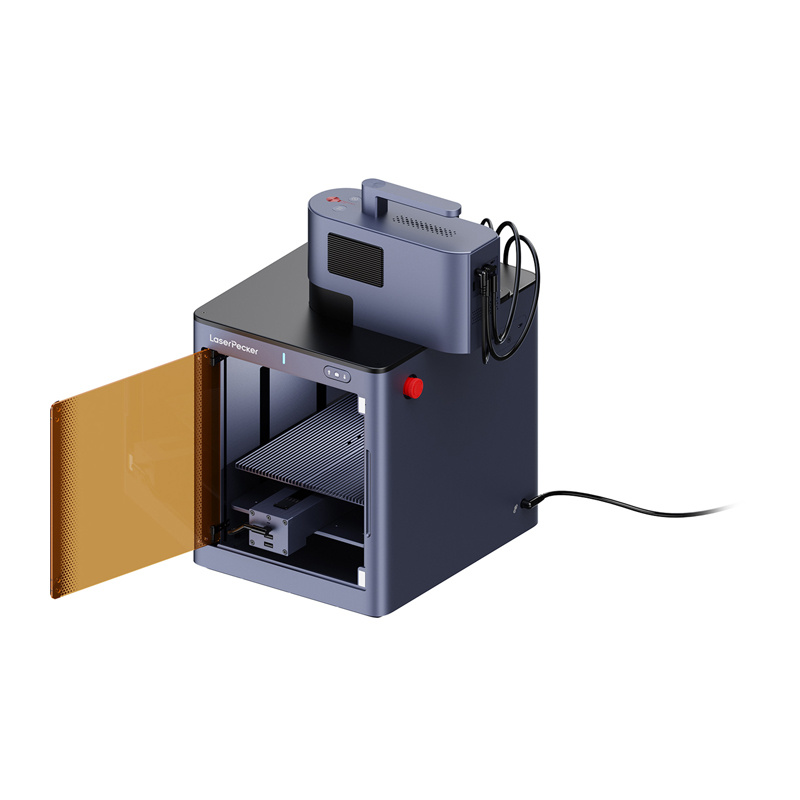

- Includes electric stand, protective cover, and safety goggles
| Manufacturer | LaserPecker |
|---|---|
| Model | LP5-SV |
| Laser Power and Source | 20 W diode laser, 450 nm (blue), 20 W fiber laser, 1064 nm |
| Working Area | 120 × 160 mm (ellipse), 100 × 100 mm (square), 160 × 300 mm (with sliding extension) |
| Laser Spot Size | 0.08 × 0.1 mm (20 W diode laser), 0.06 × 0.06 mm (20 W fiber laser) |
| Maximum Operating Speed | 10,000 mm/s |
| Engraving Precision | 0.0027 mm |
| Preview Modes | Rectangular preview / outline preview / center point preview |
| Supported File Formats | PC software: G-code / JPG / PNG / BMP / SVG / DXF and others; mobile app: G-code / JPG / PNG / SVG |
| Connectivity | USB, Wi-Fi |
| Supported Operating Systems | iOS 9.0 or later, Android 7.0 or later, macOS 10 or later, Windows 10 or later, compatible with LightBurn |
| Laser Unit Dimensions | 255 × 98 × 183 mm |
| Electric Stand Dimensions | 198 × 286 × 323 mm |
| Protective Cover Dimensions | 167 × 231 × 160 mm |
| Laser Unit Weight | 3.36 kg |
| Electric Stand Weight | 2.28 kg |
| Protective Cover Weight | 0.38 kg |
| Total Weight of the Set | 6.02 kg |
What laser sources are integrated into the LaserPecker LP5?
The LP5 features a dual laser setup comprising a 20W blue diode laser (450 nm) and a 20W fiber laser (1064 nm).
What is the maximum operating speed and work area?
It operates at speeds up to 10,000 mm/s with a standard working area of 120 × 160 mm (ellipse) or 100 × 100 mm (square), expandable to 160 × 300 mm with a sliding extension.
Which operating systems and software are compatible?
The engraver supports iOS 9.0+, Android 7.0+, macOS 10+, Windows 10+, and is compatible with LightBurn software.
