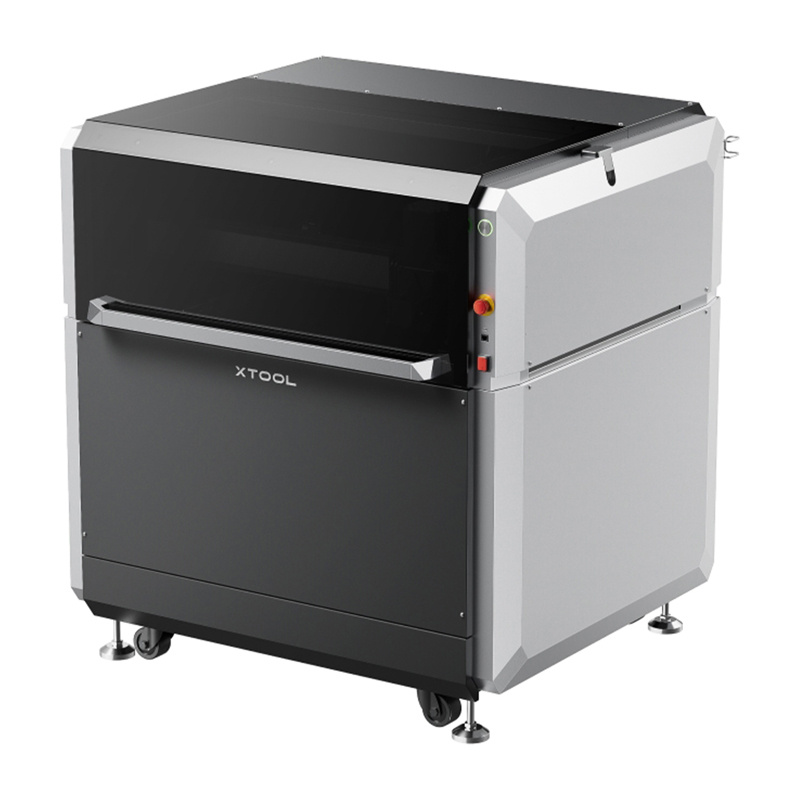

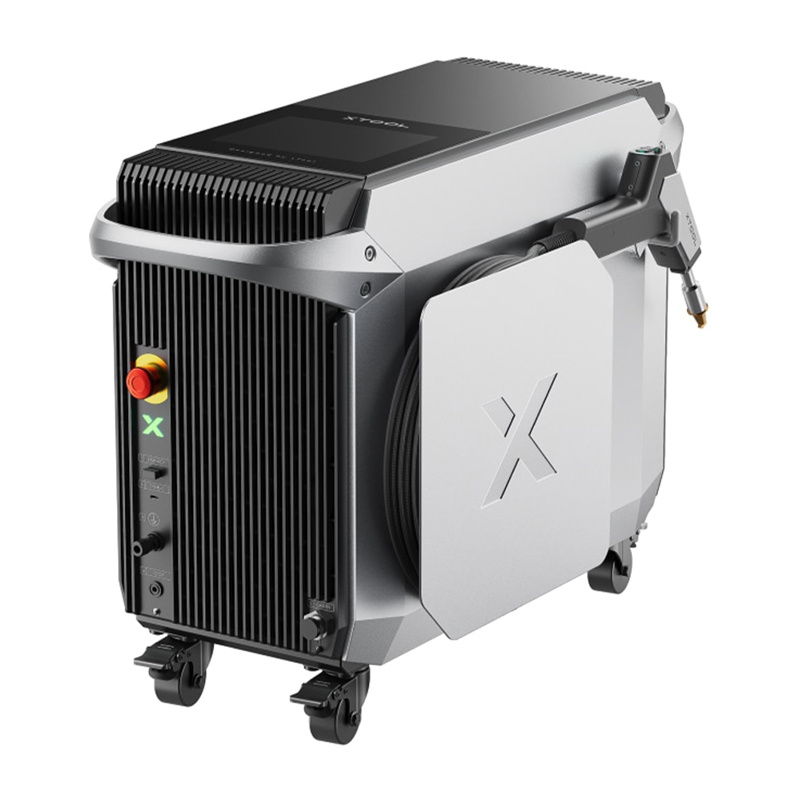

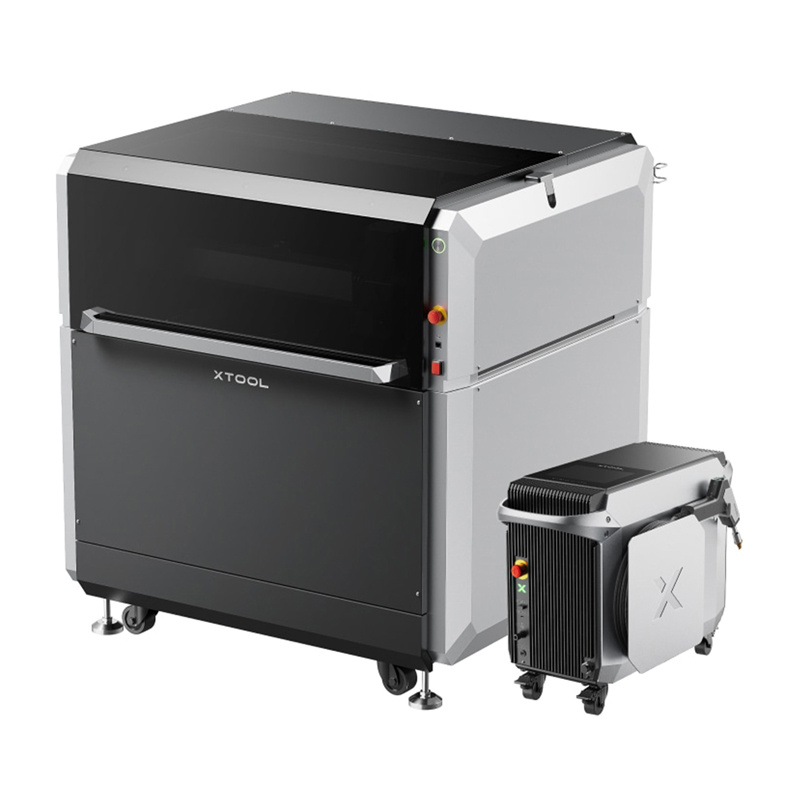

Laser Welding and CNC Cutting Machine xTool MetalFab 1200W (XMF-1200B)
Price: 18969.20 €
| Products ID: | 175634 |
|---|---|
| Manufactured by: | Xtool |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
Delivery options to:
Choose countryThe xTool MetalFab 1200W is a multifunctional fiber laser system that combines welding, metal cutting, and surface cleaning in one device, complemented by a CNC cutter for automated cutting and cleaning operations.
Key Features and Capabilities
- 1200 W fiber laser power with 1080 nm wavelength powered by industrial-grade Coherent chips
- Supports continuous, spot, and pulse welding modes
- Processes metal thicknesses from 0.2 mm to 5 mm (cuts carbon steel up to 10 mm on CNC)
- CNC working area of 610 x 610 mm with a pass-through size of 610 x ∞ mm
- Dual camera system: 16 MP panoramic camera and close-range camera for precision positioning
- 8-inch touchscreen interface with 108 built-in material parameters
- 10 safety protection functions and Class 4 laser safety certification
| Manufacturer | xTool |
|---|---|
| Model | XMF-1200B |
| Laser Power | 1200 W |
| Laser Type | Fiber laser |
| Wavelength | 1080 ± 10 nm |
| Processing Modes | Welding / Cutting / Rust removal and cleaning |
| Welding Modes | Continuous welding / Spot welding / Pulse welding |
| Processing Thickness | 0.2-5 mm |
| Max. CNC Cutting Thickness | Up to 10 mm |
| CNC Working Area | 610 x 610 mm |
| CNC Pass-Through Size | 610 x ∞ mm |
| Max. Working Speed | 400 mm/s (15.75 ips) |
| Motion Accuracy | ± 0.1 mm |
| Cooling System | Air cooling |
| Laser Safety Class | Class 4 |
| Laser Welder Dimensions | 728 x 327 x 512 mm |
| Laser Welder Weight | 38.2 kg |
| CNC Machine Dimensions | 1175 x 1157 x 1230 mm |
| CNC Machine Weight | 150 kg |
| Cable Length | 5 m |
What processes does the xTool MetalFab 1200W perform?
It performs laser welding (continuous, spot, and pulse), metal cutting, surface rust removal and cleaning, as well as CNC-controlled cutting and cleaning.
Which metals can be processed with this machine?
The system supports stainless steel, carbon steel, aluminum, brass, titanium, nickel alloy, galvanized sheet metal, and magnesium.
What is the working area of the CNC cutting machine?
The CNC machine provides a working area of 610 x 610 mm with a pass-through size of 610 x ∞ mm.
