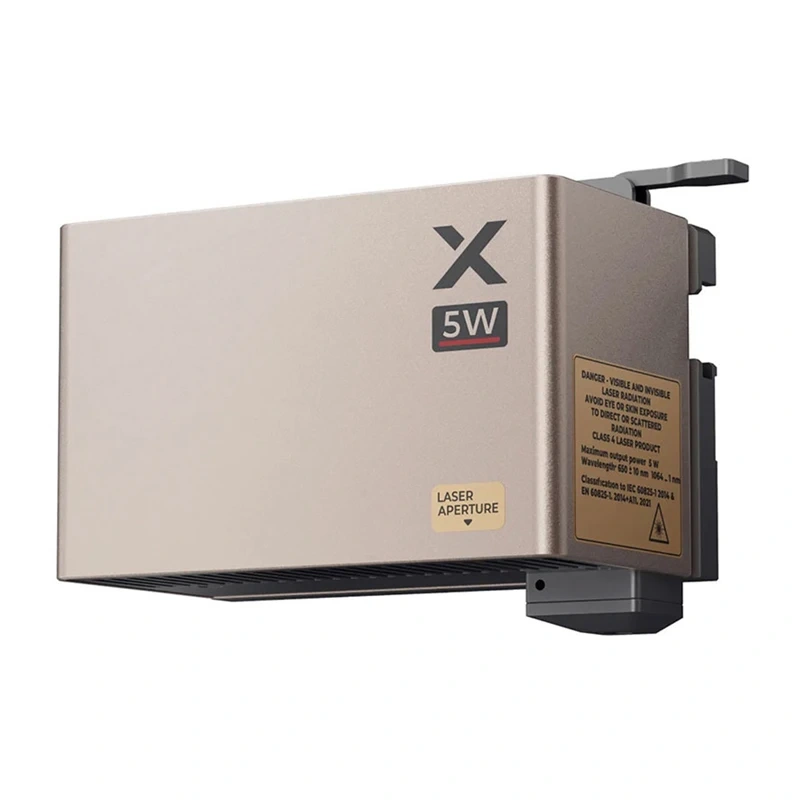

xTool 5W Infrared Laser Module for xTool P3 1064nm P0102000211
Price: 881.00 €
| Products ID: | 178416 |
|---|---|
| Manufactured by: | Xtool |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6928819534148 |
Delivery options to:
Choose countryThe xTool 5W Infrared Laser Module expands the capabilities of the xTool P3 engraver, enabling precise engraving on metals and plastics without sprays or special surface preparation.
Key Features
- 1064 nm infrared laser with 5 W optical power and up to 65 kW peak power
- Fine 0.03 mm laser spot size for detailed lines, text, and intricate designs
- Working area of 650 × 426 mm and processing speed up to 1000 mm/s
- Engineered for metals including gold, silver, copper, stainless steel, and aluminum, as well as plastics
- Direct power supply from the xTool P3 and integrated air cooling
| Manufacturer | xTool |
|---|---|
| Model | P0102000211 |
| Optical power | 5 W |
| Peak power | Up to 65 kW |
| Wavelength | 1064 nm |
| Pulse width | 4 ns |
| Laser spot size | 0.03 mm |
| Maximum speed | Up to 1000 mm/s |
| Working area | 650 × 426 mm |
| Cooling | Air-cooled |
| Recommended operating temperature | 0°C to 35°C |
| Compatibility | xTool P3 |
| Compatible materials | Metal (e.g., gold, silver, copper, stainless steel, aluminum), synthetic materials (e.g., plastic) |
Which machine is compatible with this infrared module?
The module is designed specifically for full integration with the xTool P3 laser engraver and is powered directly by the machine.
Which materials can be engraved with this 1064 nm module?
It is suited for metals such as gold, silver, copper, stainless steel, and aluminum, as well as plastics like acrylic.
What is included in the package?
The set includes the 5 W infrared laser module, connecting rod, focusing block, calibration paper, lubricant, Allen wrench, screws, and user manual.
