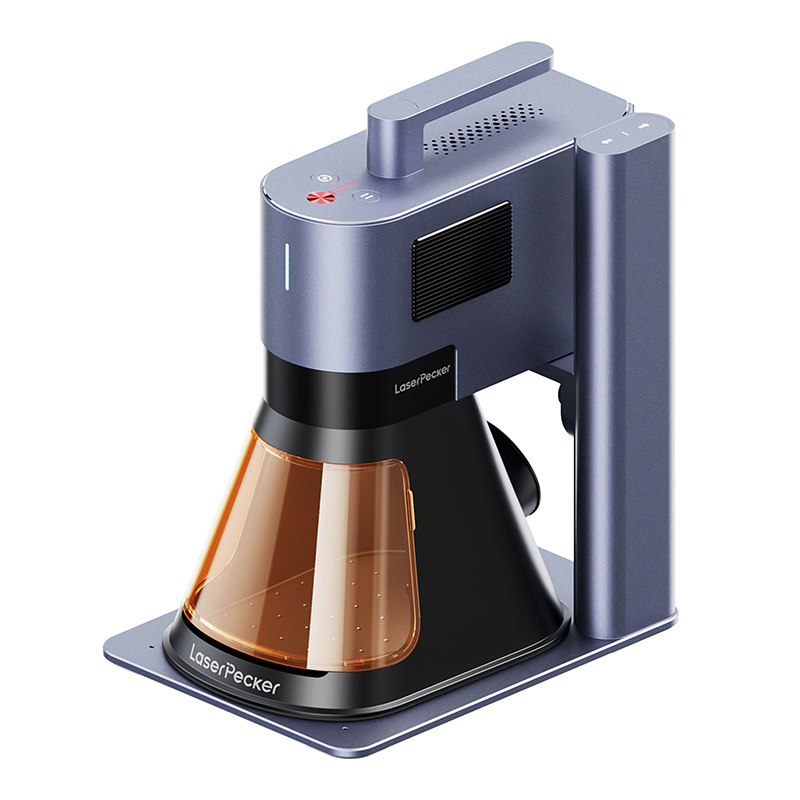

Laser Engraving Machine LaserPecker 5 Deluxe

Laser Engraving Machine LaserPecker 5 Deluxe — image 3

Price: 2813.20 €

Products ID:	175620
Manufactured by:	Laserpecker
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	6974109080055

Delivery options to:

Choose country

Laser Engraving Machine LaserPecker 5 Deluxe

The LaserPecker 5 Deluxe is a portable laser engraving machine equipped with dual laser sources: a 20W fiber laser and a 20W diode laser. It supports deep engraving on metals, wood, leather, glass, and acrylic, as well as precise cutting of metals up to 1 mm thick.

Key Features

Dual Laser System: 20W 1064nm fiber laser for metals and 20W 450nm diode laser for non-metal materials.
High-Speed Operation: Engraving speeds up to 10,000 mm/s with 0.0027 mm precision.

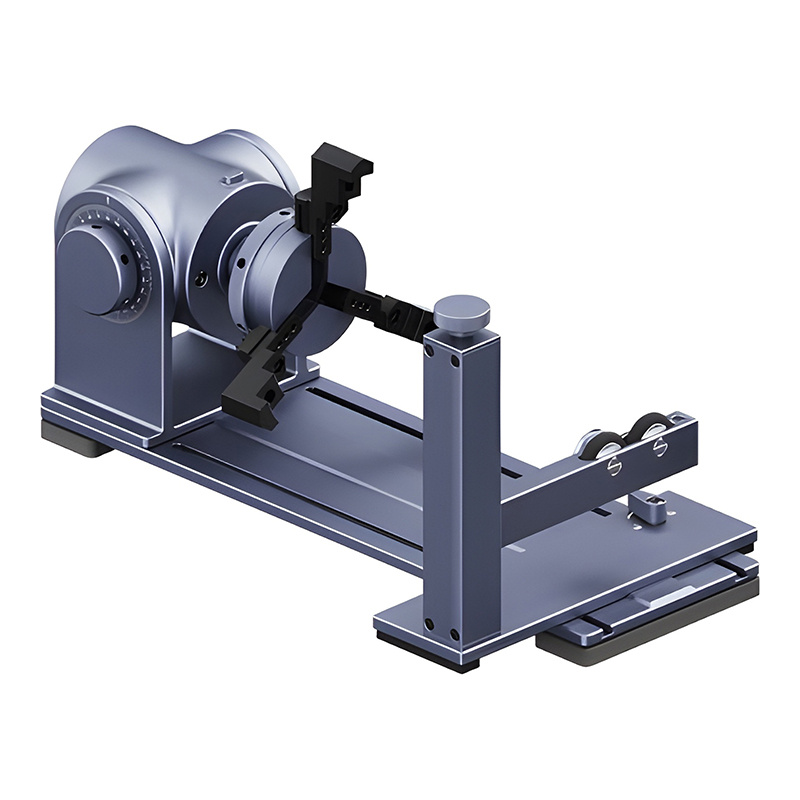

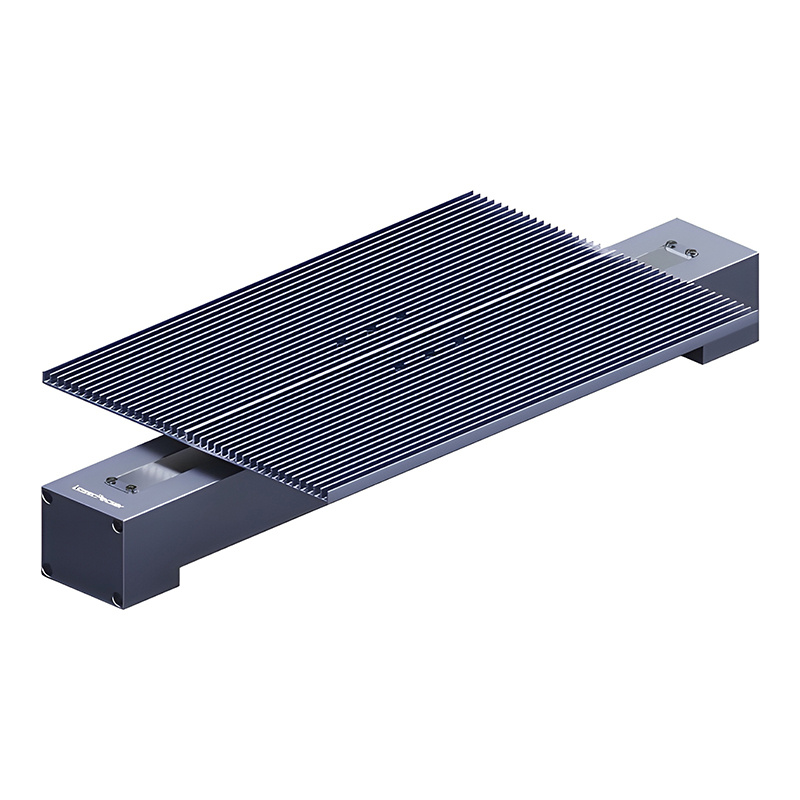

Deluxe Add-ons: Includes the Slide Extension for an enlarged work area and the Rotary Extension for cylindrical items.
Color Engraving: Produces distinct colors on metals through controlled temperature and oxidation.
Built-in Camera: Features smart positioning and visual monitoring of the work area.

Manufacturer	LaserPecker
Model	5 Deluxe (LP5-D)
Laser Power and Source	20W 450nm blue diode laser; 20W 1064nm fiber laser
Maximum Working Speed	10000 mm/s
Engraving Precision	0.0027 mm
Laser Spot Size	0.08 x 0.1 mm (diode); 0.06 x 0.06 mm (fiber)
Working Area	120 x 160 mm (ellipse); 100 x 100 mm (square); 160 x 300 mm (with Slide extension)
Connectivity	USB, Wi-Fi
Supported Operating Systems	iOS 9.0+, Android 7.0+, macOS 10+, Windows 10+ (LightBurn compatible)
Supported File Formats	PC: G-code, JPG, PNG, BMP, SVG, DXF; Mobile: G-code, JPG, PNG, SVG
Total Weight	6.02 kg
Dimensions	Laser unit: 255 x 98 x 183 mm; electric stand: 198 x 286 x 323 mm; conical cover: 167 x 231 x 160 mm

What materials can the LaserPecker 5 Deluxe engrave?

The 20W fiber laser engraves metals such as stainless steel, aluminum, brass, gold, silver, and titanium. The 20W diode laser is suitable for wood, acrylic, leather, glass, stone, paper, and rubber.

What attachments are included in the Deluxe version?

The Deluxe package includes both the Slide Extension for larger working areas and the Rotary Extension for cylindrical objects like cups and rings, alongside safety goggles and essential accessories.
