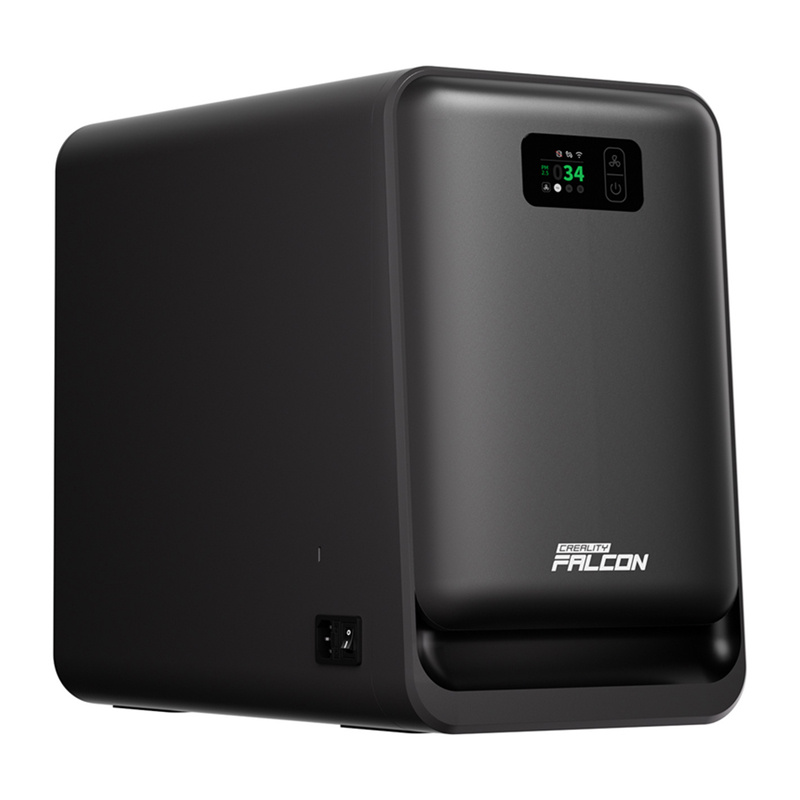

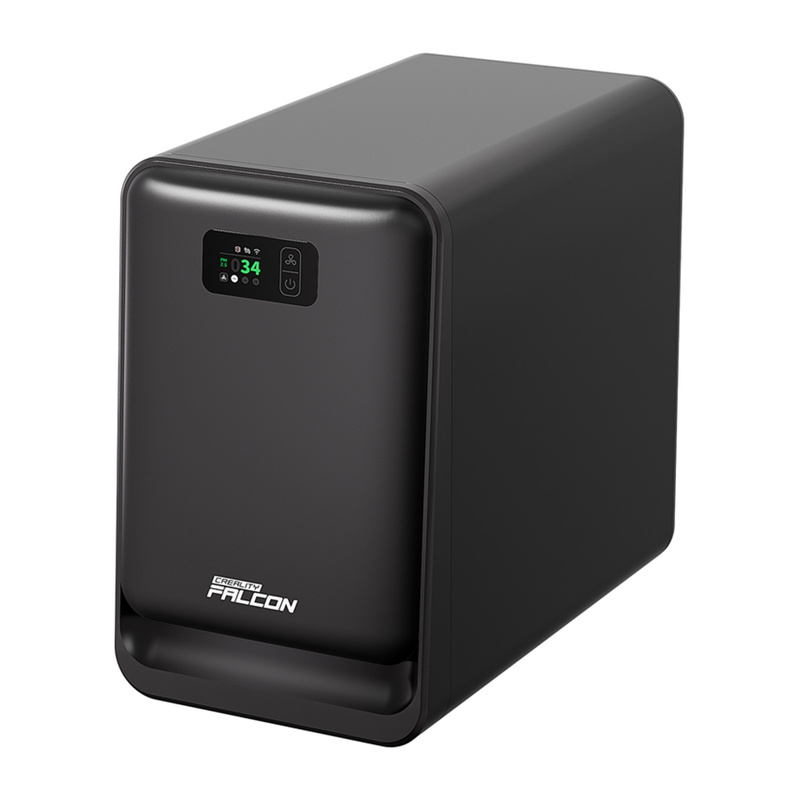

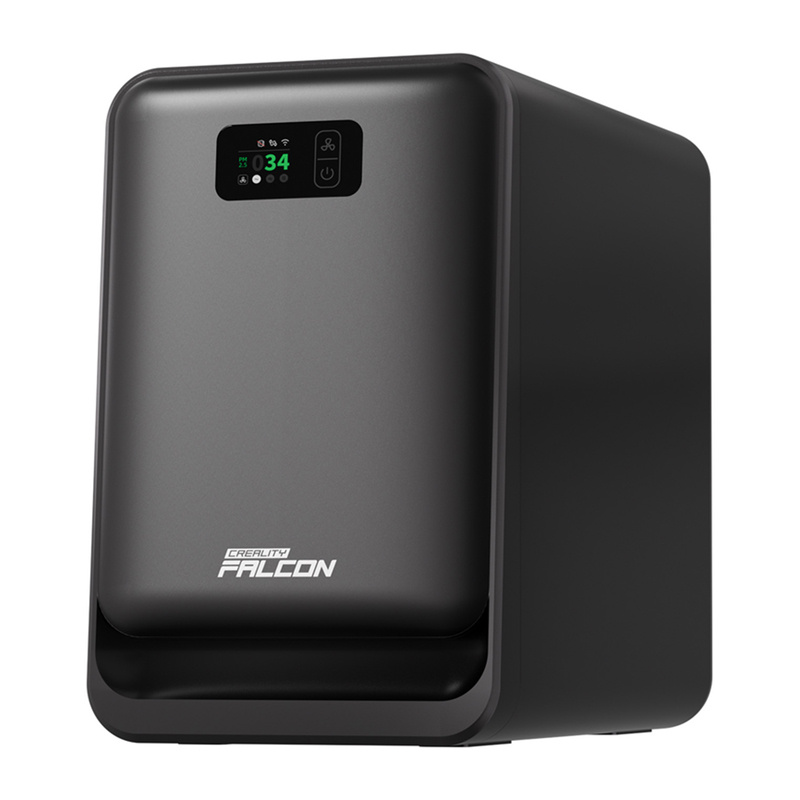

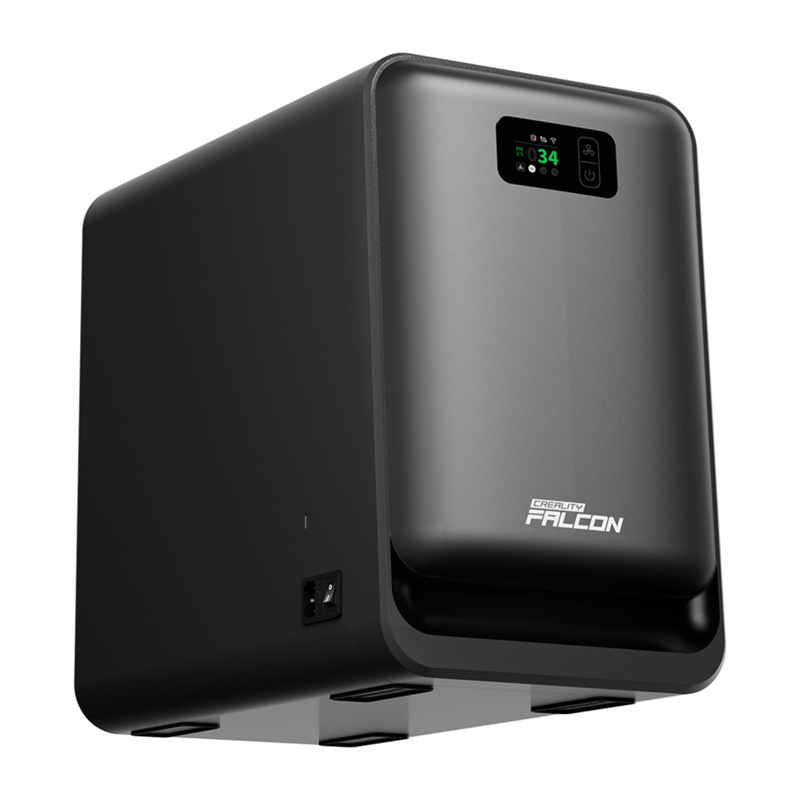

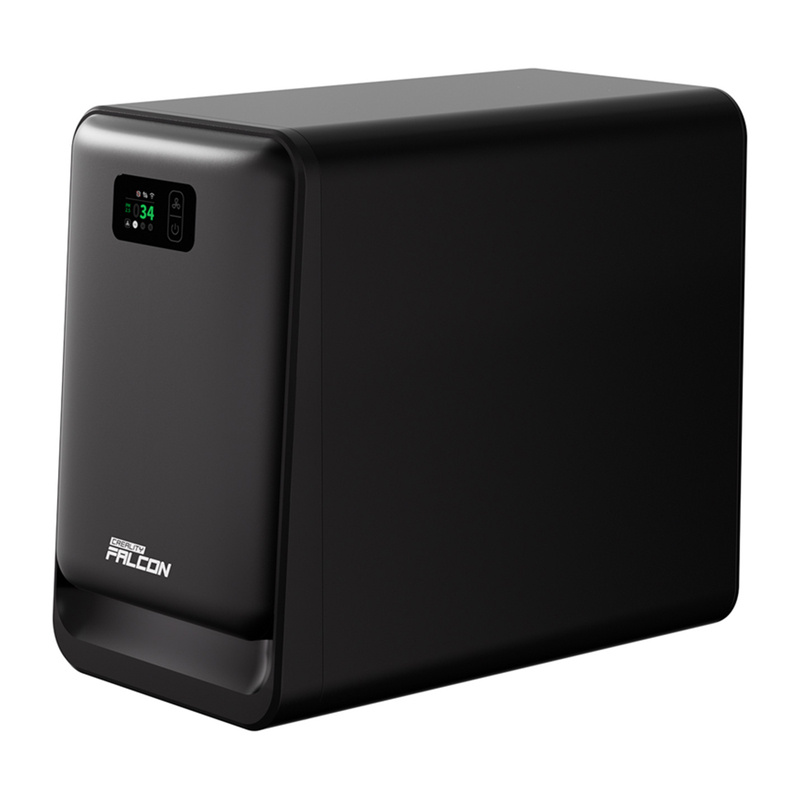

Creality Falcon AP1 Smoke Extractor with HEPA Filter and Wi-Fi
Creality
| Products ID: | 186757 |
|---|---|
| Manufactured by: | Creality |
| Availablity: | Ready to Order |
| Delivery Time | 5-12 business days |
| EAN: | 6977905741533 |
Delivery options to:
Choose countryThe Creality Falcon AP1 is a dedicated smoke absorber and fume purifier designed to provide up to 99% air purification efficiency during laser engraving and cutting operations.
Multi-Stage Filtration and PM2.5 Monitoring
Equipped with a five-stage filtration system, the AP1 features a high-performance HEPA filter covering up to 3 m² of working area to capture up to 99.97% of airborne particles down to 0.3 μm. An ultra-dense 1.4 kg activated carbon cartridge absorbs heavy odors generated from acrylic or leather processing. The integrated digital display provides real-time PM2.5 air quality feedback and tracks filter lifespan.
Airflow Efficiency and Extraction Power
With an innovative 360° airflow system, a suction pressure of 1700 Pa, an air speed of up to 20 m/s, and a circulation rate of 250 m³/h, the extractor captures fumes directly at the source before they disperse across the room.
Smart Control and Quiet Operation
Wi-Fi connectivity enables remote adjustments, filter wear notifications, and automatic synchronization with Falcon laser cutters, including delayed shutdown to clear residual fumes. The Auto-Tune feature automatically selects the appropriate filtration mode for cutting or engraving, while operating at a low noise level of 57 dB.
| Manufacturer | Creality |
|---|---|
| Model | Falcon AP1 |
| Product dimensions | 460 x 270 x 430 mm |
| Weight | 10 kg |
| Air inlet channel size | ф65 mm |
| Input voltage | 110–230 V ~ 50–60 Hz |
| Output voltage | DC 24 V |
| Maximum power | 150 W |
| Operating noise | 57 dB |
| Suction power | 1700 Pa |
| Air flow rate | 250 m³/h |
| Air speed | 20 m/s |
| Connectivity | Wi-Fi |
What is included in the package?
The set includes the smoke absorber, filter 1 (factory installed), filter 2 (factory installed), 2 hose clamps, a power cord, an air duct connector, a Type-C data cable, an exhaust pipe, and a user manual.
What is the noise level during operation?
The Creality Falcon AP1 operates at a noise level of 57 dB.
What is the weight of the activated carbon cartridge?
The unit includes an ultra-dense 1.4 kg activated carbon cartridge designed to eliminate intense odors.
