xTool RA3 Lite Rotary Attachment for xTool M2
Price: 299.40 €
| Products ID: | 177736 |
|---|---|
| Manufactured by: | Xtool |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6928819535046 |
Delivery options to:
Choose country

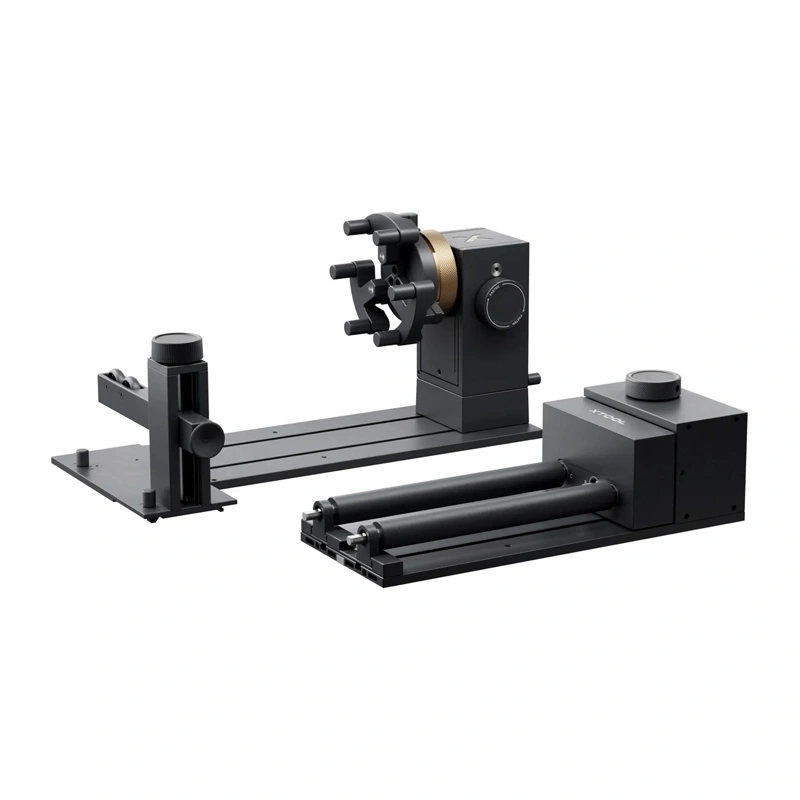

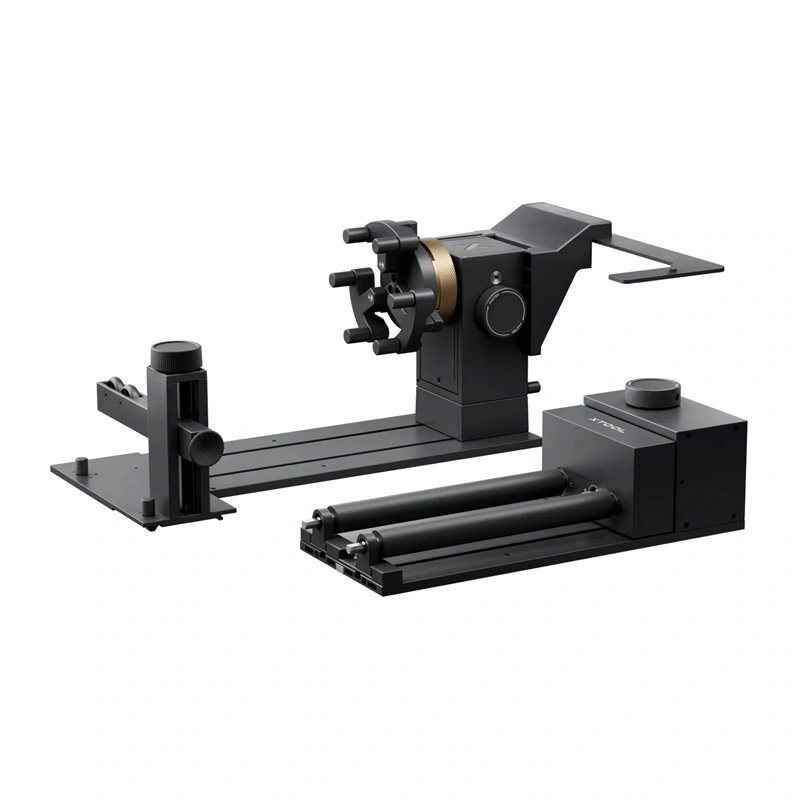

The xTool RA3 Lite rotary attachment enables precise engraving of cylindrical, spherical, and 3D objects using the xTool M2 laser system.
Key Features

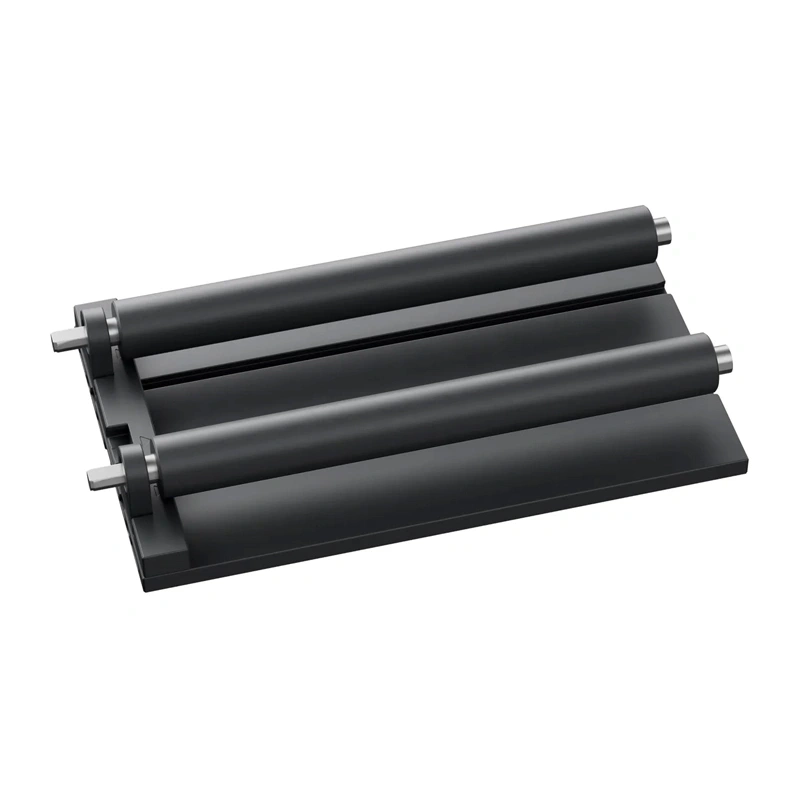

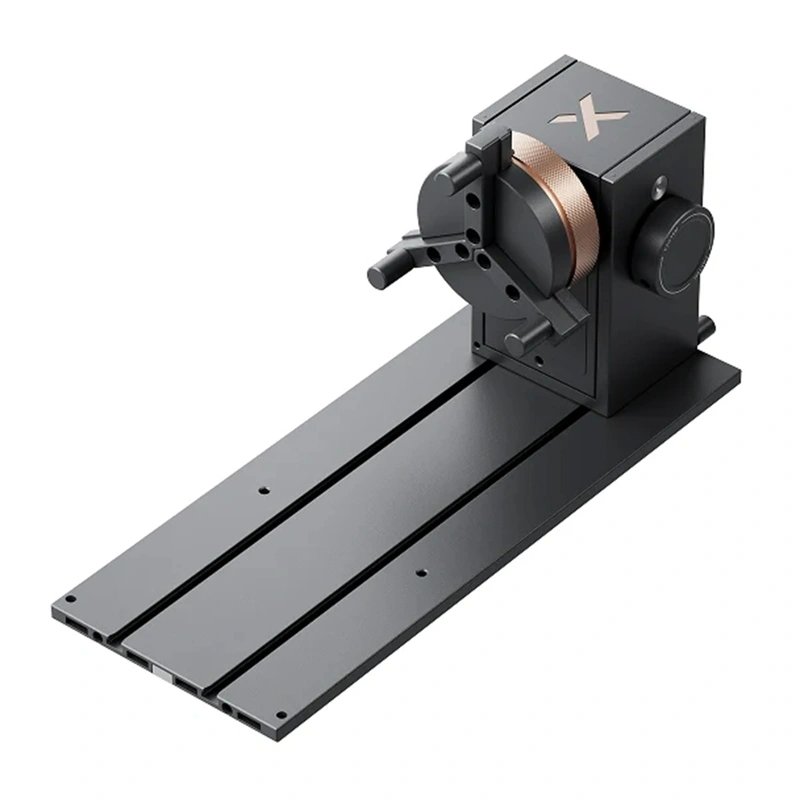

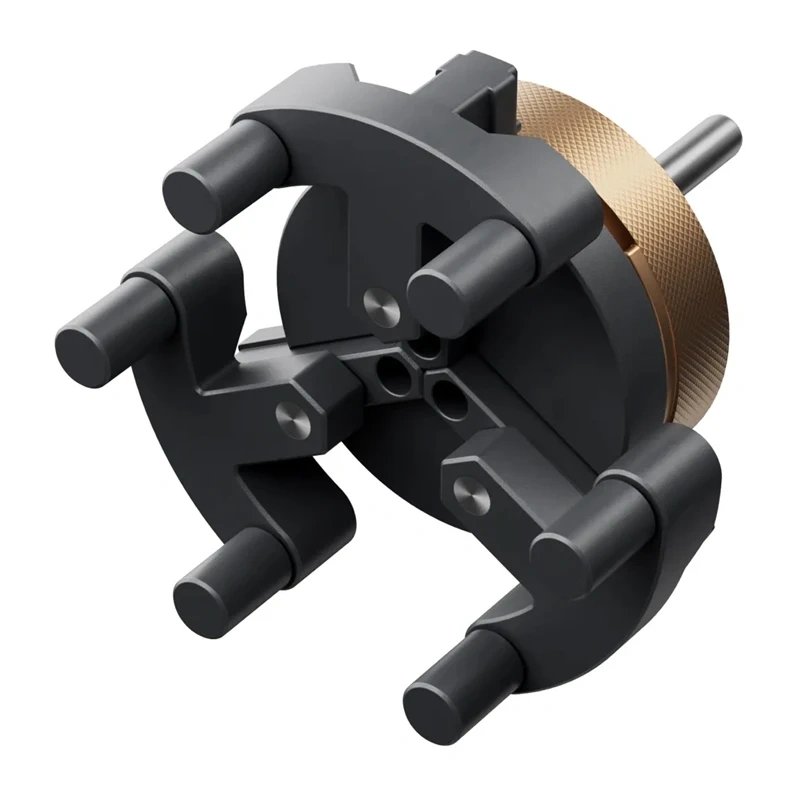

- Supports 4 operating modes: Chuck Rotary, Roller Rotary, Sphere Rotary, and Ring Rotary.
- MagSwap™ design provides fast, tool-free mode adjustments.
- 360° LiDAR Mapping™ technology allows for 3D modeling preview prior to processing.
- Operates at speeds up to 1200 mm/s for efficient project execution.
| Manufacturer | xTool |
|---|---|
| Model | RA3 Lite |
| Dimensions | 324 × 187 × 148 mm |
| Weight | 2.26 kg |
| Maximum operating speed | 1200 mm/s |
| Supported technologies | 360° LiDAR Mapping™, MagSwap™ |
| Compatibility | xTool M2 |
| Operating modes | Chuck Rotary, Roller Rotary, Sphere Rotary, Ring Rotary |
| Full-wrap engraving on vases | Yes |
| 3D modeling preview | Yes |
| Automatic rotary mode detection | No |
| Batch processing | No |
| Inner ring engraving | No |
| Rotary chuck engraving diameter | 0–100 mm |
| Rotary roller engraving diameter | 3–198 mm |
| Sphere engraving diameter | 25–100 mm |
| Ring engraving diameter | 11–70 mm |
Which laser engravers are compatible with the xTool RA3 Lite?
The xTool RA3 Lite rotary attachment is designed to work specifically with xTool M2 devices.
What are the supported object diameter ranges?
The diameter ranges are 0–100 mm for the rotary chuck, 3–198 mm for the rotary roller, 25–100 mm for spheres, and 11–70 mm for rings.
What is included in the package?
The package includes the jaw holder, power supply module, main base plate, support module, pins/supports, laser shield, horizontal laser emission holder, positioning plate, device connection cable, measuring tape, and user manual.
