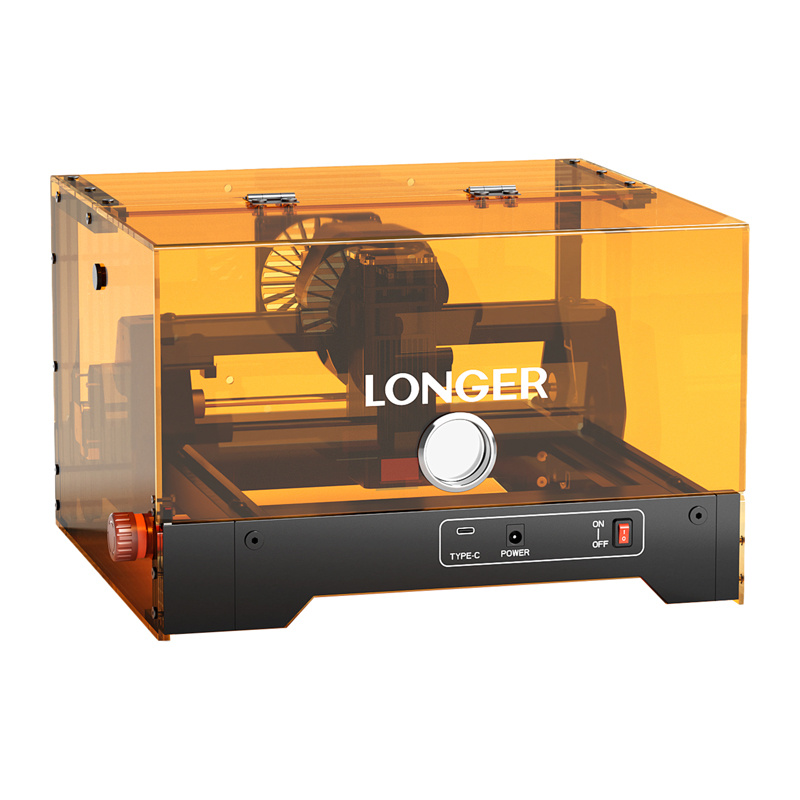

Laser Engraver Longer RAY5 minis 5.5W (130 x 140 mm)
Price: 216.30 €
| Products ID: | 180280 |
|---|---|
| Manufactured by: | Longer |
| Availablity: | Ready to Order |
| Delivery Time | 5-12 business days |
| EAN: | 5905156103238 |
Delivery options to:
Choose countryThe Longer RAY5 minis 5.5W is a pre-assembled, desktop laser engraver with a 130 x 140 mm working area designed for precise engraving and cutting on a wide range of materials.
Key Features

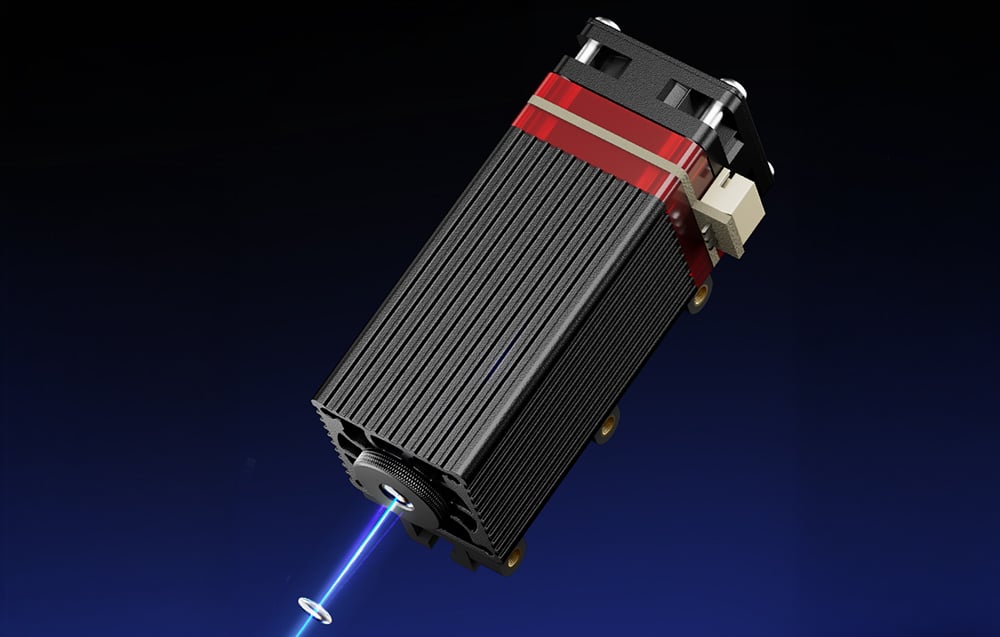

- 5.5 W 450 nm diode laser with a fine 0.04 x 0.04 mm spot and 0.04 mm precision
- Engraving speeds up to 12 000 mm/min and a cutting depth capability up to 12 mm
- Class I style safety enclosure with cover sensor, limit switches, and exhaust fan
- USB and Wi-Fi connectivity with offline operation and mobile app support
- Sturdy aluminum alloy frame weighing only 2.89 kg for easy placement and portability
| Manufacturer | Longer |
|---|---|
| Model | RAY5 minis 5.5W |
| Laser power | 5.5 W |
| Laser source | Single laser diode with FAC |
| Laser wavelength | 450 nm |
| Working area | 130 x 140 mm |
| Cutting depth | 12 mm |
| Engraving speed | 12 000 mm/min |
| Engraving precision | 0.04 mm |
| Supported formats | JPG, BMP, PNG, DXF |
| Lifespan | 10 000+ hours |
| Machine material | Aluminum alloy |
| Connection | Wi-Fi, USB, app |
| Safety certifications | CE; FCC; FDA; RoHS |
| Supported systems | Windows; MacOS; Linux; Android; iOS |
| Dimensions | 307 x 320 x 197 mm |
| Weight | 2.89 kg |
| Power supply | 100-240V 50/60Hz 1.5A/12V-2A (24W) or 12V-3A (36W) |
| Compatible materials | Wood, acrylic, leather, fabric, metal, ceramics, etc. |

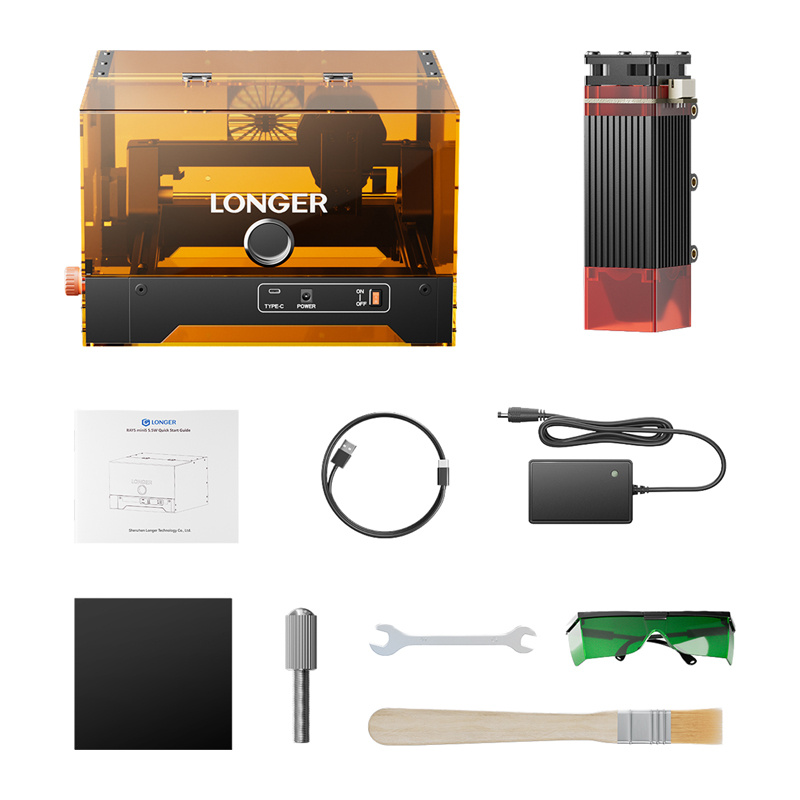

What is included in the package?
The kit includes the machine frame, laser module, power supply, data cable, safety glasses, focusing block, wrench, and wooden brush.
How do you set the laser focus?
Focusing is mechanical and repeatable using the included 2 mm spacer block by lowering the module until it contacts the block.
