XTOOL M2 Deluxe 20W Laser Engraver and Cutter Bundle
Price: 1533.30 €
| Products ID: | 177603 |
|---|---|
| Manufactured by: | Xtool |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6928819536265 |
Delivery options to:
Choose country

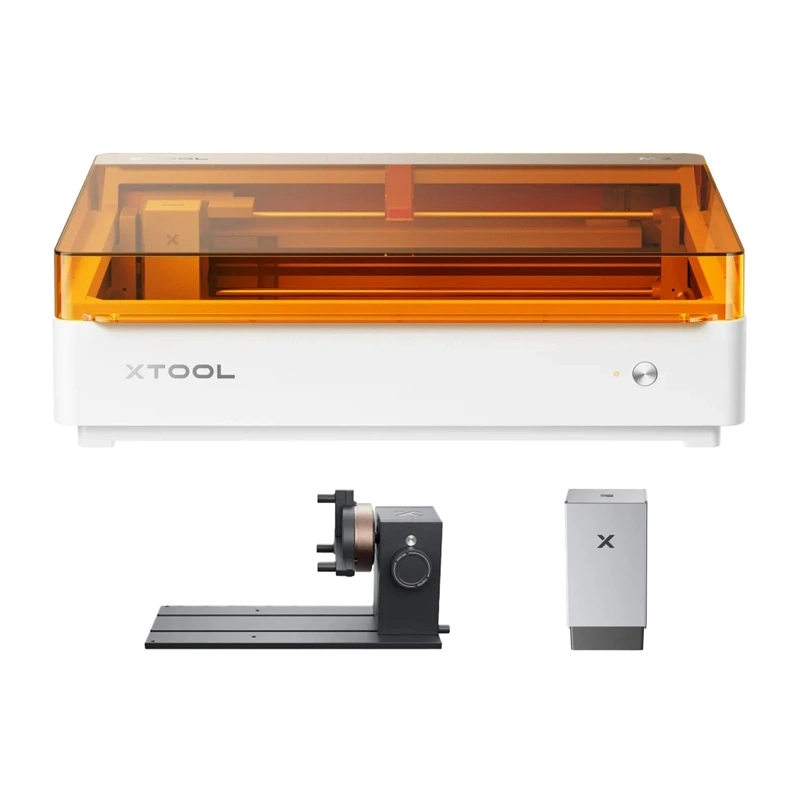

The XTOOL M2 Deluxe 20W is a versatile laser cutting and engraving machine bundled with a CMYK inkjet printing module and an RA3 Lite rotary attachment for cylindrical objects.
Key Features
- 20 W blue diode laser with a fine 0.06 × 0.08 mm spot size and operating speeds up to 600 mm/s
- Laser working area of 426 × 320 mm and color CMYK printing area of 300 × 294 mm
- Dual-camera positioning system with a 5 MP panoramic camera and a 2 MP close-up camera
- Automatic focusing and an enclosed Laser Class 1 design certified by TÜV SÜD
- Convenient Wi-Fi and USB connectivity with xTool Studio software support for Windows and macOS
| Manufacturer | XTOOL |
|---|---|
| Model | M2 |
| Laser type | 20 W diode (Blue Diode Laser) |
| Operating modes | Laser cutting, laser engraving, CMYK inkjet printing |
| Working area (laser) | 426 × 320 mm |
| Working area (CMYK printing mode) | 300 × 294 mm |
| Maximum rotary engraving diameter | 0–100 mm |
| Maximum operating speed | 600 mm/s |
| Maximum cutting thickness of linden wood | 10 mm (single pass) |
| Maximum cutting thickness of black acrylic | 8 mm (single pass) |
| Laser spot size | 0.06 × 0.08 mm |
| Positioning precision | up to 0.2 mm |
| Measurement accuracy | 0.1 mm |
| Motion accuracy | 0.01 mm |
| Camera system | 5 MP panoramic camera + 2 MP close-up camera |
| Focusing | automatic |
| Connectivity | USB, Wi-Fi |
| Software | xTool Studio |
| Supported operating systems | Windows, macOS |
| Supported file formats | SVG, DXF, JPG, JPEG, PNG, BMP |
| Safety certification | Laser Class 1 (TÜV SÜD) |
| Device Dimensions | 610 × 569 × 180 mm |
| Weight | 12.3 kg |
| Maximum Power Consumption | 200 W |
| Power Supply | 100–240 V AC, 50/60 Hz |
What thickness of materials can the 20 W laser cut in a single pass?
In a single pass, it can cut linden wood up to 10 mm thick and black acrylic up to 8 mm thick.
What is the function of the RA3 Lite attachment included in the Deluxe bundle?
The RA3 Lite rotary attachment enables engraving on cylindrical objects such as mugs, tumblers, bottles, glasses, and candles with a diameter from 0 to 100 mm.
Which software and file formats are supported by the XTOOL M2?
The machine uses xTool Studio software on Windows and macOS, supporting SVG, DXF, JPG, JPEG, PNG, and BMP file formats.
