Laser Engraver XTOOL M2 20W, Working Area 426 x 320 mm
| Products ID: | 177748 |
|---|---|
| Manufactured by: | Xtool |
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 6928819535978 |
Delivery options to:
Choose country

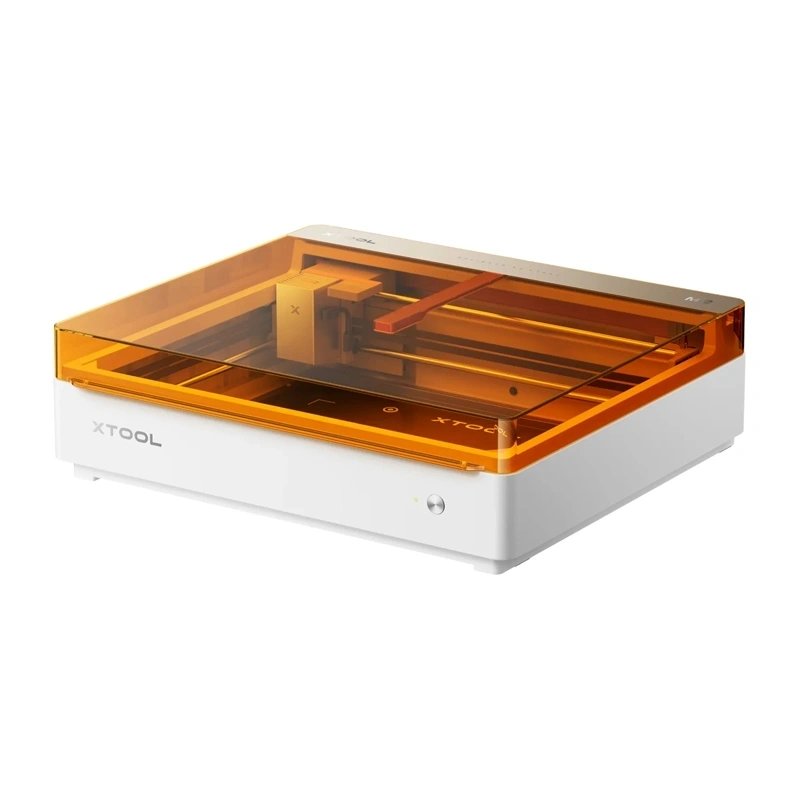

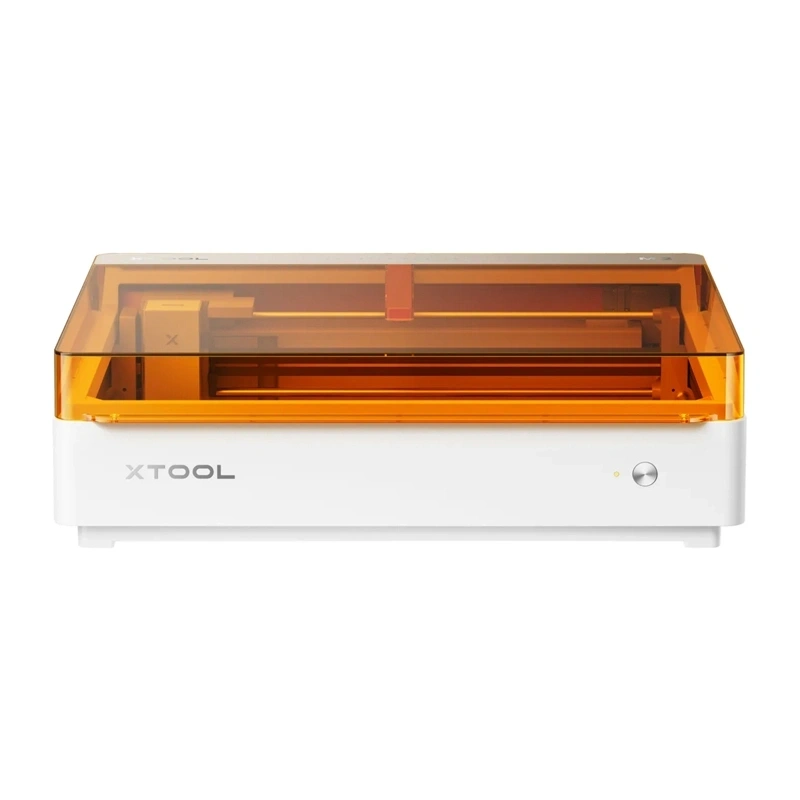

The XTOOL M2 20W is an enclosed laser cutting and engraving machine equipped with a 20 W blue diode laser and a 426 × 320 mm working area. Designed for high precision, it integrates a dual-camera positioning system, automatic focusing, and versatile connectivity via Wi-Fi and USB.
Key Features
- 20 W blue diode laser with a fine 0.06 × 0.08 mm laser spot for detailed cutting and engraving
- Maximum operating speed of up to 600 mm/s with single-pass cutting of 10 mm linden wood and 8 mm black acrylic
- Dual-camera system (5 MP panoramic and 2 MP close-up) providing real-time preview and accurate material alignment
- Broad material processing support including wood, MDF, opaque acrylic, leather, paper, rubber, glass, and metals
- Laser Class 1 safety certified enclosed construction (TÜV SÜD)
- Native control through xTool Studio software on Windows and macOS
| Manufacturer | XTOOL |
|---|---|
| Model | M2 |
| Laser type | 20 W diode (Blue Diode Laser) |
| Operating modes | laser cutting, laser engraving |
| Optional modules | CMYK inkjet printing module, 3 W infrared laser module |
| Working area (laser) | 426 × 320 mm |
| Maximum operating speed | 600 mm/s |
| Maximum cutting thickness for linden wood | 10 mm (single pass) |
| Maximum cutting thickness for black acrylic | 8 mm (single pass) |
| Laser spot size | 0.06 × 0.08 mm |
| Positioning precision | up to 0.2 mm |
| Measurement accuracy | 0.1 mm |
| Motion accuracy | 0.01 mm |
| Camera system | 5 MP panoramic camera + 2 MP close-up camera |
| Focus adjustment | automatic |
| Connectivity | USB, Wi-Fi |
| Software | xTool Studio |
| Supported operating systems | Windows, macOS |
| Supported file formats | SVG, DXF, JPG, JPEG, PNG, BMP |
| Safety certification | Laser Class 1 (TÜV SÜD) |
| Device dimensions | 610 × 569 × 180 mm |
| Weight | 12.3 kg |
| Maximum power consumption | 200 W |
| Power supply | 100–240 V AC, 50/60 Hz |
What is included in the package?
The set includes the XTOOL M2 laser engraver, 20 W laser module, module connection cable, power supply with power cord, USB cable with adapter, fume exhaust tube, cable tie, lubricant, test materials set, magnetic clamps, hex screwdriver, masking tape, M3×6 screws, safety instructions, and a quick start guide.
What materials can the laser cut in a single pass?
In a single pass, the machine can cut linden wood up to 10 mm thick and black acrylic up to 8 mm thick.
Which software and operating systems are supported?
The device operates with xTool Studio software and supports both Windows and macOS computers.
