Underfloor Heating Manifold 9 Loops with Thermal Actuators NC AC230V and Flow Meters
Price: 448.80 €
| Products ID: | 172371 |
|---|---|
| Manufactured by: | Hismart |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000260447 |
Delivery options to:

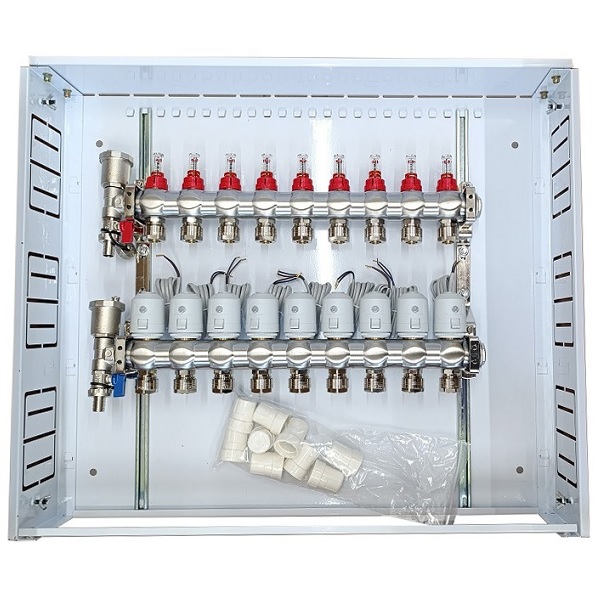

Choose countryUnderfloor heating manifold set designed for 9-loop zone control, complete with a flush-mounting metal box, flow meters, and electrothermal actuators.
Key Features
- 9-loop manifold for individual underfloor heating zone management

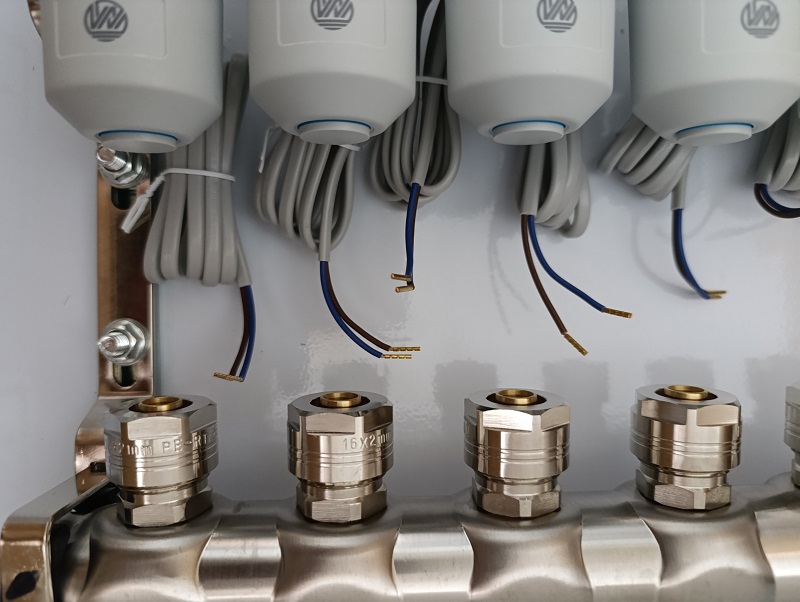

- 9 NC (normally closed) AC230V thermal actuators with 2W energy consumption
- 9 flow meters for monitoring water flow and adjusting system pressure
- Flush-mounting metal cabinet with lockable door opening up to 135 degrees
- Includes 2 air vent nodes and nine 16mm heating circuit pipe adapters
| Number of loops | 9 |
|---|---|
| Installation type | Flush mounting |
| Cabinet dimensions | 745mm x 645mm x 118mm |
| Cabinet depth | 110mm |
| Door dimensions | 585mm x 685mm |
| Flow meters quantity | 9 pcs. |
| Thermal actuators quantity | 9 pcs. |
| Air vent nodes | 2 pcs. |
| 16mm pipe adapters | 9 pcs. |
| Actuator operating state | NC (normally closed) |
| Operating voltage | AC 230V, 50/60Hz |
| Actuator power consumption | 2W |
| Starting current | max. 300mA |
| Thread adapter | VA80 (M30) |
| Cable length | 90cm |
| Protection class | IP54 |
| Actuator dimensions | Ø49.4mm x 56.6mm |
| Color | Light gray |
What is included in the package?
The set includes a flush-mounting metal box, a 9-loop collector, 9 flow meters, 9 NC AC230V thermal actuators, 2 air vent nodes, and nine 16mm heating pipe adapters.
What type of connection do the thermal actuators use?
The thermal actuators connect to the manifold via VA80 thread adapters compatible with standard M30 threads.
